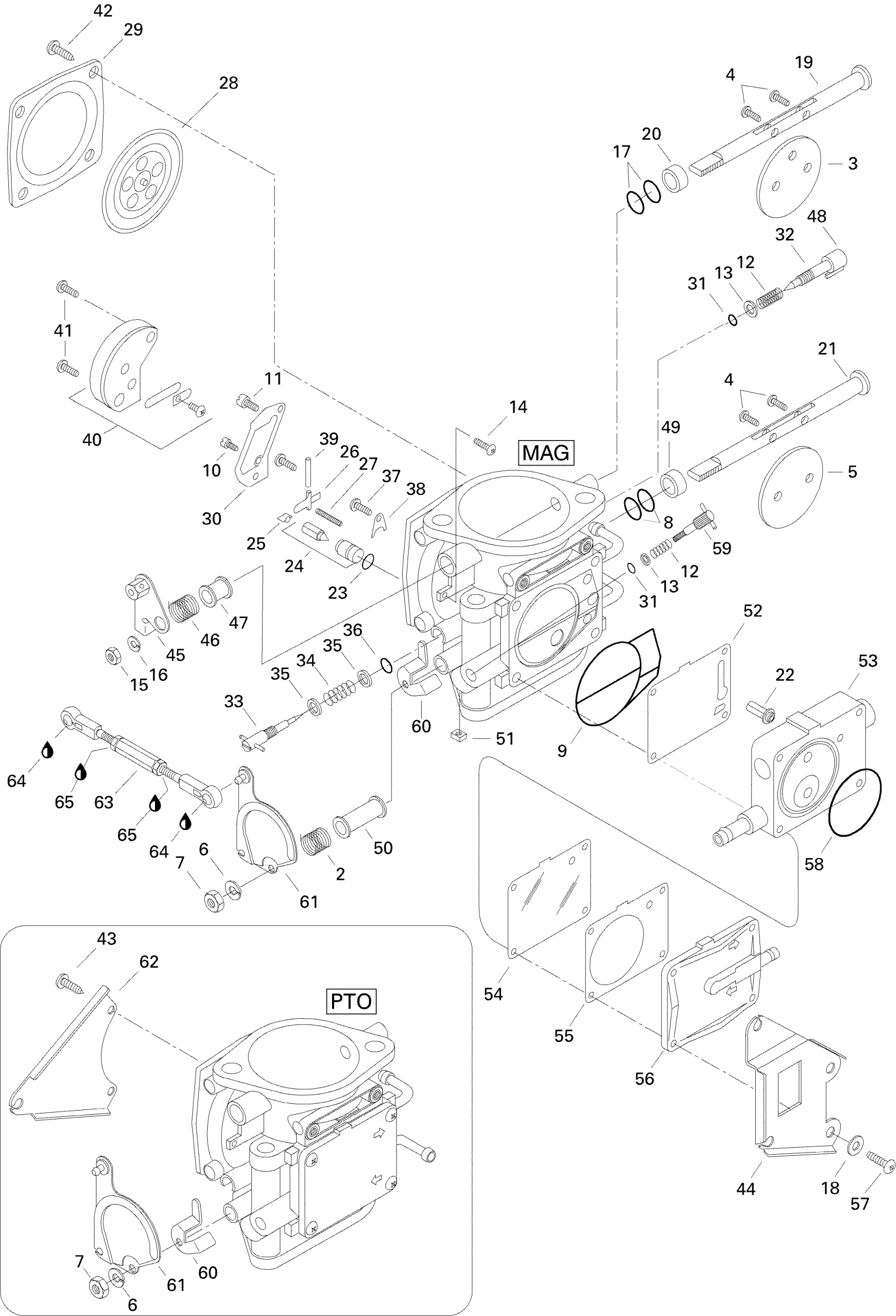

Sea-doo Speedster, 5894, 1996 02- Carburetor PTO Diagram
#
1
Carbure tor Ass'y P.T.O Side | Includes 1 - 62. EXPLORER 5824 PTO.
270500279
Unavailable
2
Spring | CHALLENGER 1800 5679 MAG.
270500097
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500012
Unavailable
8
Sealing Ring
270500222
Unavailable
9
O-Ring
270500104
Unavailable
10
Pilot Jet 67.5
270500165
Unavailable
11
Main Jet 130
270500163
Unavailable
12
SPRING - Call your local BRP dealership
270500091
Unavailable
13
Washer
270500136
Unavailable
14
Screw
270500228
Unavailable
15
NUT - Call your local BRP dealership
270500229
Unavailable
16
Spring Washer
270500230
Unavailable
17
SEALING RING - Call your local BRP dealership
270500234
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
RING - Call your local BRP dealership
270500239
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
23
O-RING - Call your local BRP dealership
270500127
Unavailable
24
Needle Valve 1.2
270500263
Unavailable
25
CLIP - Call your local BRP dealership
270500129
Unavailable
26
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
27
SPRING - Call your local BRP dealership
270500267
Unavailable
28
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
29
COVER - Call your local BRP dealership
270500133
Unavailable
30
GASKET - Call your local BRP dealership
270500131
Unavailable
31
O-RING - Call your local BRP dealership
270500144
Unavailable
32
Adjuster Screw
270500113
Unavailable
33
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
34
SPRING - Call your local BRP dealership
270500019
Unavailable
35
Washer
270500018
Unavailable
36
O-RING - Call your local BRP dealership
270500119
Unavailable
37
Screw And Spring Washer
270500155
Unavailable
38
PLATE - Call your local BRP dealership
270500125
Unavailable
39
Pin
270500038
Unavailable
40
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
41
SCREW - Call your local BRP dealership
270500123
Unavailable
42
Screw
270500243
Unavailable
43
Screw | EXPLORER 5824 PTO.
270500190
Unavailable
44
Not Available As Spare Parts
XXX
Unavailable
45
Choke lever
270500271
Unavailable
46
SPRING - Call your local BRP dealership
270500248
Unavailable
47
Ring
270500110
Unavailable
48
Cap
270500154
Unavailable
49
Ring | CHALLENGER 1800 5679 MAG.
270500221
Unavailable
50
RING - Call your local BRP dealership
270500192
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
52
Not Available As Spare Parts
XXX
Unavailable
53
Not Available As Spare Parts
XXX
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
55
Not Available As Spare Parts
XXX
Unavailable
56
Pump Cover | CHALLENGER 1800 5675 PTO.
270500138
Unavailable
57
Screw | CHALLENGER PTO.
270500109
Unavailable
58
Not Available As Spare Parts
XXX
Unavailable
59
Not Available As Spare Parts
XXX
Unavailable
60
Throttle Lever | EXPLORER 5824 PTO.
270500272
Unavailable
61
Throttle Lever Ass'y
270500287
Unavailable
62
Bracket | EXPLORER 5824 PTO.
270500286
Unavailable
63
Carburator Linkage Rod
270500256
Unavailable
64
Synthetic Grease, 400 G
293550010
Unavailable
65
Sealant LOCTITE 222MS - Call your local BRP dealership
413703400
Unavailable
