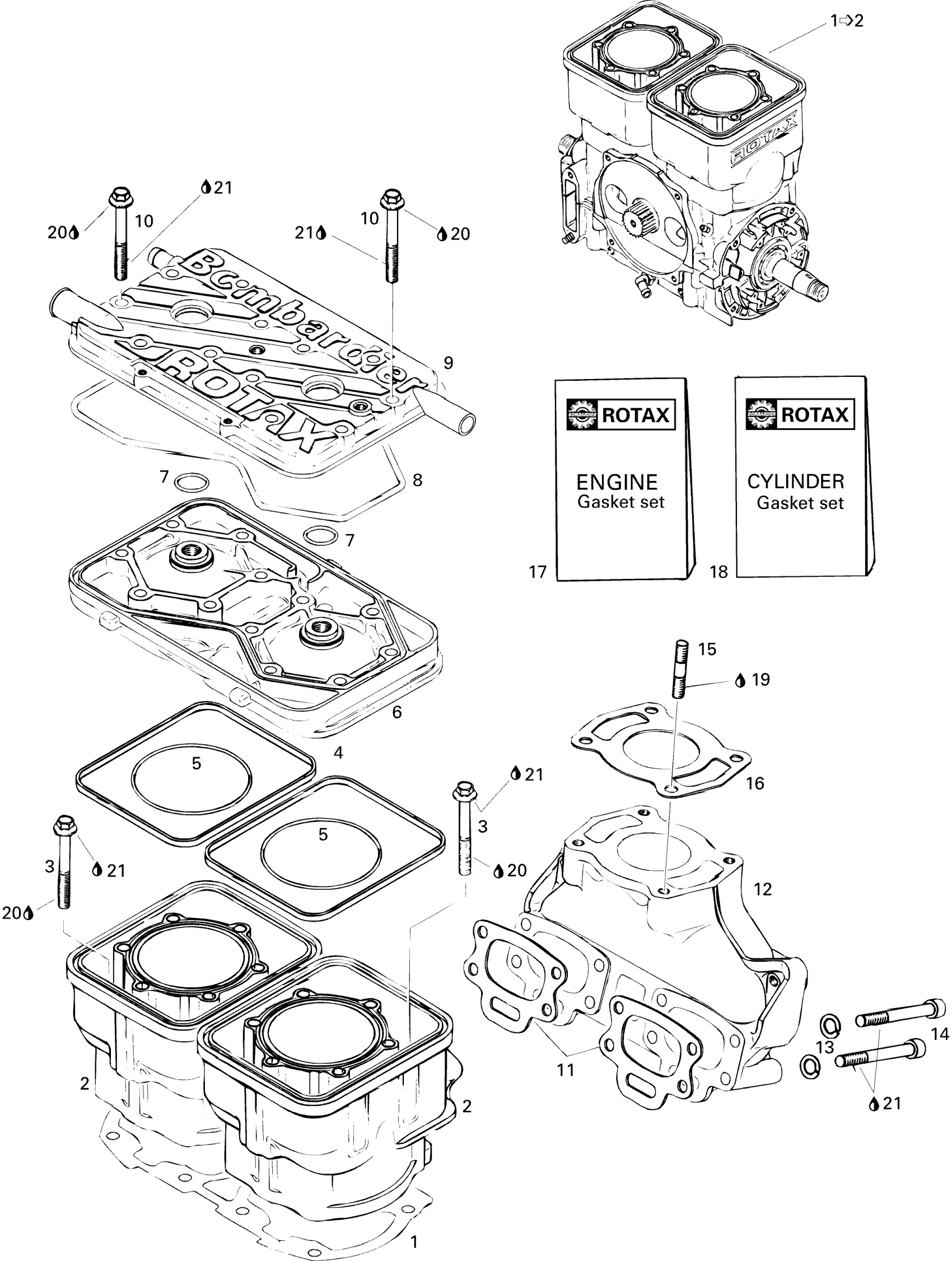

Sea-doo Speedster, 5894, 1996 01- Cylinder And Exhaust Manifold Diagram

#

Description
Price

1

Short Block Ass‘y | Includes 1 to 21

290881520

Unavailable

1

Gasket Cylinder 0.3 mm

290931400

Unavailable

1

Gasket Cylinder 0.4 mm

290931401

Unavailable

1

GASKET CYLINDER 0.5 MM - Call your local BRP dealership

290931402

Unavailable

1

Gasket Cylinder 0.6 mm

290931403

Unavailable

1

Gasket Cylinder 0.8 mm

290931404

Unavailable

2

Cylinder with Sleeve (White)

290923236

Unavailable

3

HEX. FLANGE SCREW M8 X 90 - Call your local BRP dealership

290440368

Unavailable

4

Rubber Ring

290850045

Unavailable

5

O-Ring | Included in gasket kit

420931410

$3.39

6

Head Cylinder (White)

290923251

Unavailable

7

O-Ring

420430782

$5.39

8

O-RING - Call your local BRP dealership This part replaces 290950360.

420950360

Unavailable

9

Cylinder Head Cover (White)

290923261

Unavailable

10

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

11

Gasket This part replaces 290850638.

420850638

$12.17

12

Exhaust Manifold (White)

290979141

Unavailable

13

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

14

Hex. Flange Screw M8 x 68.5

290841998

Unavailable

15

Stud M8 x 26

420941014

$14.22

16

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

17

Engine Gasket Set (Not Shown)

290886317

Unavailable

18

CYLINDER GASKET SET (NOT SHOWN) - Call your local BRP dealership

290886316

Unavailable

19

Sealant Loctite 648

219703000

$45.99

20

Loctite 243, 10 ml

293800060

$21.49

21

Dow Corning 111, 150 g

413707000

$59.99
