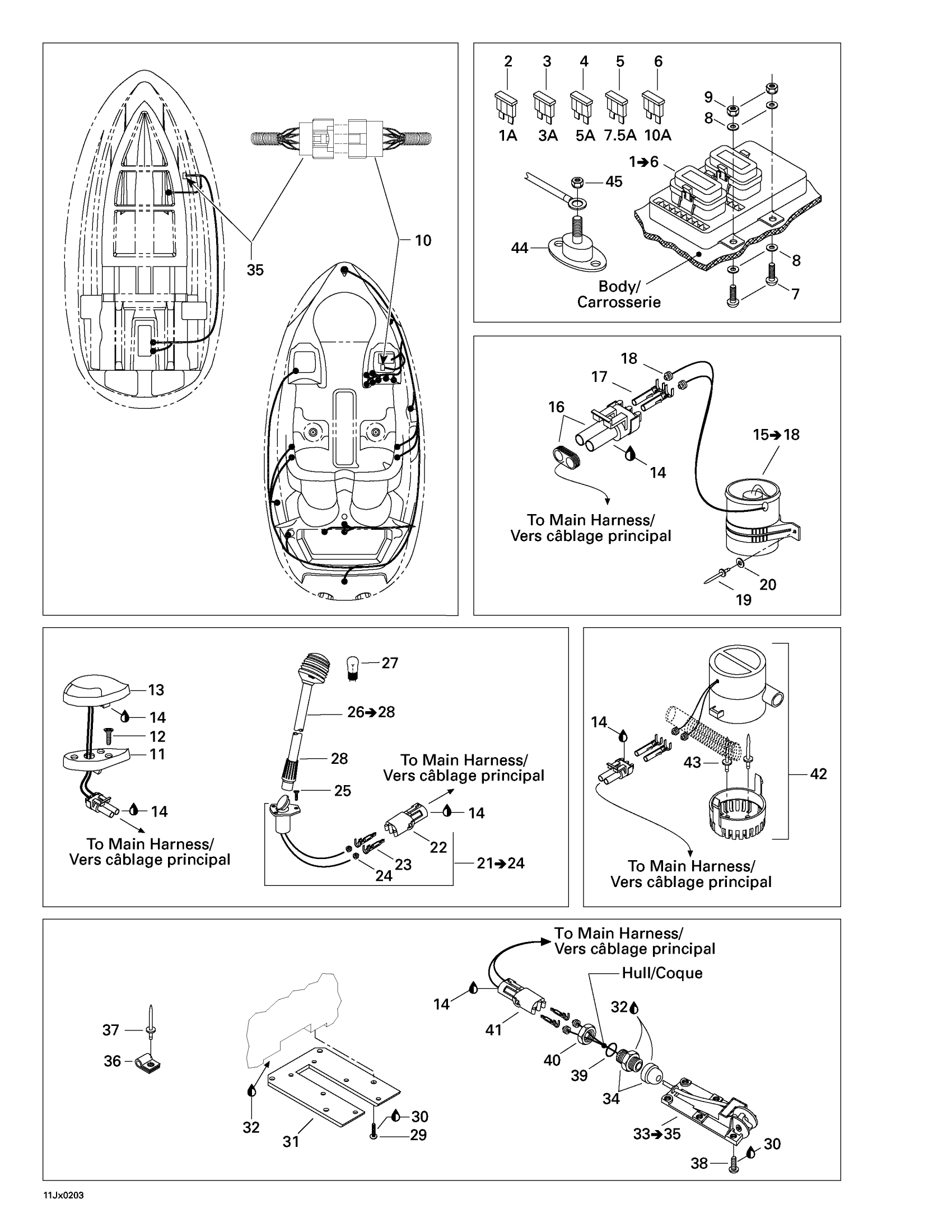

Sea-doo Speedster, 5700, 2002 10- Electrical Accessories 2 Diagram
#
1
Fuse Block
204470597
Unavailable
2
FUSE, 1 AMPERE - Call your local BRP dealership
409012800
Unavailable
3
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
4
Fuse, 5 Amperes | CE
278000344
$3.28
5
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
6
Fuse, 10 Amperes | North America
278001197
$2.21
7
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
8
Flat Washer M6, Stainless
234062600
$0.77
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Harness
204470698
Unavailable
11
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
12
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
13
Front Lamp
204470311
Unavailable
14
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
15
Fan Ass'y | Includes 44 to 47
204470108
$144.99
16
Male Connector, 2 Circuits
278000220
$15.49
17
Female Terminal
278000223
$3.19
18
Wire Seal
278000218
$4.39
19
Pop Rivet 3/16"
293150008
$0.50
20
Flat Washer 5 mm, Stainless
234052600
$0.77
21
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
Female Housing, 2 Circuits
278000217
$9.59
23
Male Terminal | XT Models
278000222
$3.19
24
Wire Seal
278000218
$4.39
25
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
26
Rear Lamp Pole | Includes 17 to 19, Models Without Tower
204470022
Unavailable
27
Bulb
204470053
Unavailable
28
COLLAR - Call your local BRP dealership
204470350
Unavailable
29
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
30
Loctite 243, 10 ml
293800060
$21.49
31
Sensor Support
204470538
Unavailable
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
34
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
35
Instrumentation Harness | CHALLENGER 1800 (5774).
204470630
Unavailable
36
Cable Clamp 3/16”
204100026
Unavailable
37
Pop Rivet 3/16"
293150088
$0.99
38
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
39
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
40
LOCKING NUT - Call your local BRP dealership
293710032
Unavailable
41
Female Housing, 2 Circuits
278000217
$9.59
42
Bilge Pump
204471431
Unavailable
43
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
44
Ground Post
204470715
Unavailable
45
HEX. ELASTIC NUT 3/8 - Call your local BRP dealership
204100032
Unavailable
