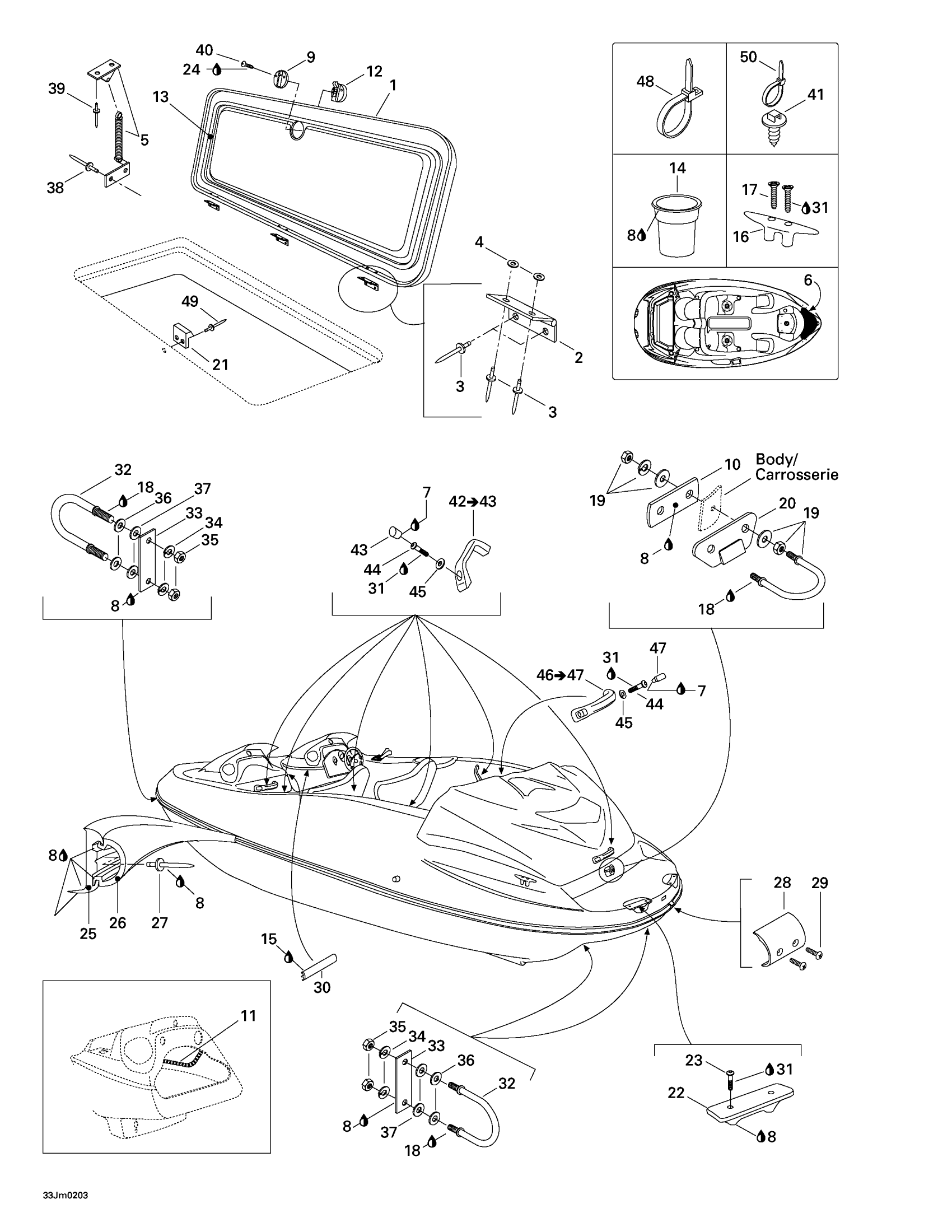

Sea-doo Speedster, 5700, 2002 Central Cover And Accessories Diagram

#

Description
Price

1

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

2

HINGE - Call your local BRP dealership

204072601

Unavailable

3

Pop Rivet 3/16"

293150088

$0.99

4

Flat Washer M5, Stainless

234051600

$0.77

5

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

6

Carpet

204070189

Unavailable

7

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

CUP BRACKET - Call your local BRP dealership

204070958

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Slit Conduit, Meter

204550045

Unavailable

12

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

13

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

15

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

16

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

17

Socket Head Screw M6 x 55

205365560

Unavailable

18

Loctite 271, 10 ml

293800005

$26.99

19

U-Bolt

204070418

Unavailable

20

Finition Plate

204070219

Unavailable

21

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

22

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

23

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

24

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

25

Black, Bumper

204050136

Unavailable

26

Black, Trim - Call your local BRP dealership

204050137

Unavailable

27

Pop Rivet 3/16"

293150013

$1.37

28

BUMPER COVER, BLACK - Call your local BRP dealership

204050031

Unavailable

29

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

30

Console Trim, White

291000778

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

33

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

34

Lock Washer 8 mm, Stainless

234181601

$0.55

35

Hex. Nut M8

232081600

$1.47

36

Flat Washer M8.5 x 18

293050001

$3.07

37

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

38

Pop Rivet 3/16"

293150043

$2.09

39

Pop Rivet 3/16"

204000081

$1.49

40

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

41

Mount Dart

293730040

$1.04

42

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

43

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

44

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

45

Stainless Flat Washer M6

234061600

$0.33

46

Handle Grip | Includes 3 to 4

204070261

Unavailable

47

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

48

Tie-Rap

293750017

Unavailable

49

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

50

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04
