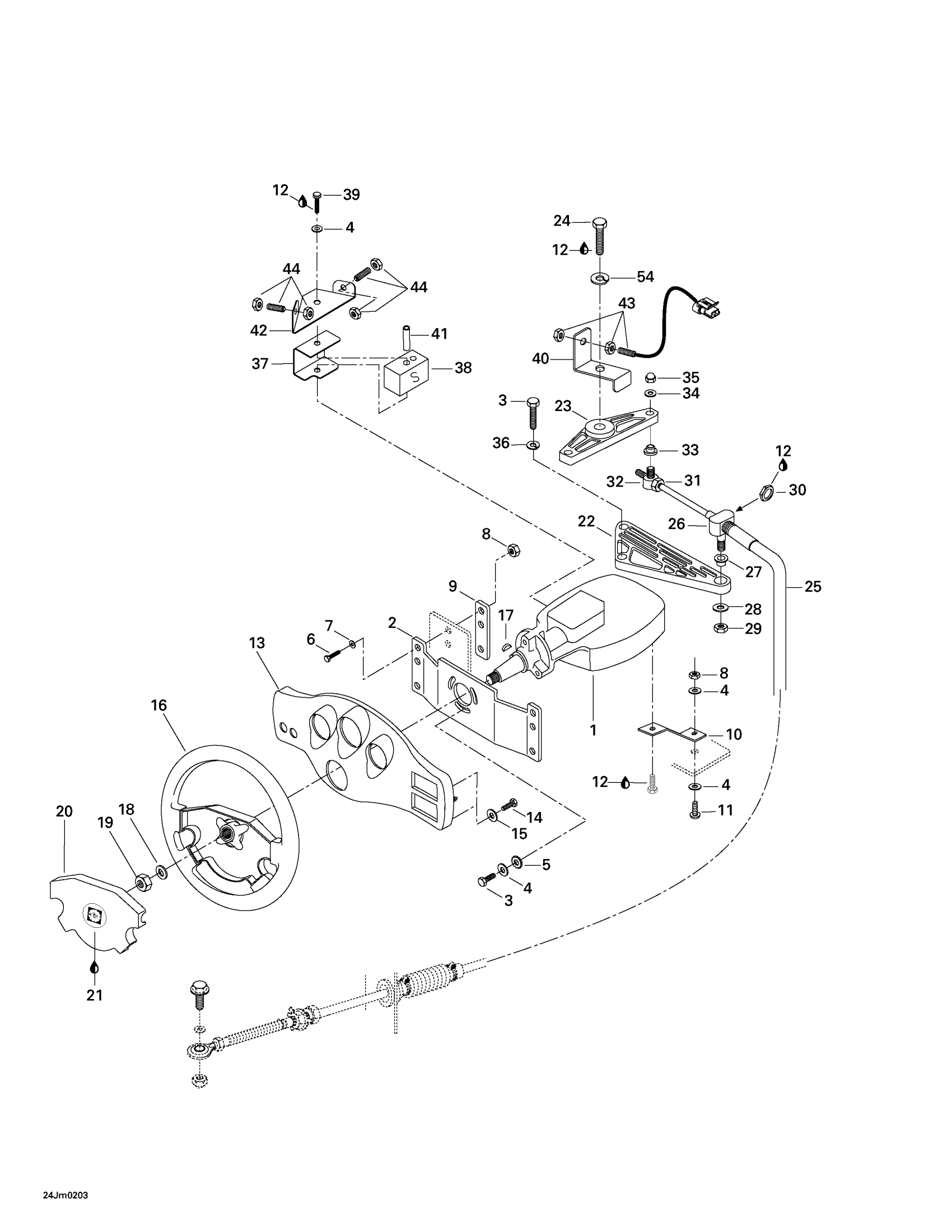

Sea-doo Speedster, 5700, 2002 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Steering Support
204390247
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Serrated Lock Washer 8 mm
234481608
$1.15
6
Hex. Screw M6 X 30
207163060
$1.48
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Reinforcement Plate
204390130
Unavailable
10
Steering Support
204390243
Unavailable
11
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
Fascia
204390209
Unavailable
14
Hex. Flange Screw K40 X 25
241142560
$2.64
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
17
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
18
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
19
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
20
Black, Steering Center
204390076
Unavailable
21
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
22
Cable Support
204390125
Unavailable
23
HELM ARM - Call your local BRP dealership
204390250
Unavailable
24
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
25
STEERING CABLE - Call your local BRP dealership
204390212
Unavailable
26
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
27
Flanged Bushing
293350014
$12.99
28
Flat Washer 10 mm, Stainless
234001600
$1.15
29
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
30
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
31
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
32
PIVOT - Call your local BRP dealership
277000456
Unavailable
33
BUSHING - Call your local BRP dealership
293350012
Unavailable
34
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
35
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
36
Lock Washer 1/4”
211200025
$1.29
37
Bumper Support
204390245
Unavailable
38
Bumper
204390246
Unavailable
39
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
40
Lower Clip
204390271
Unavailable
41
Bushing
204130004
Unavailable
42
Cam Switch
204390339
Unavailable
43
LOW SPEED CONTROL SENSOR ASS'Y - Call your local BRP dealership | Includes 46 to 50
204470631
Unavailable
44
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
