Description

Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

FLEXIBLE EXHAUST - Call your local BRP dealership

204340294

Unavailable

3

Tridon Clamp

293650064

$8.29

4

Exhaust Hose

204340297

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Tridon Clamp

293650112

$12.99

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

Flat Washer M6, Stainless

234062600

$0.77

9

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

208663560

Unavailable

10

Front Muffler Support (Port)

204340237

Unavailable

11

Front Muffler Support (Starboard)

204340199

Unavailable

12

Rear Muffler Support (Port)

204340238

Unavailable

13

Rear Muffler Support (Starboard)

204340200

Unavailable

14

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

15

Strap Clip 90°

204060017

Unavailable

16

Pop Rivet 3/16"

293150008

$0.50

17

STRAP - Call your local BRP dealership

293850022

Unavailable

18

Silicone Sealant 51388, 300 ml

296000309

$36.99

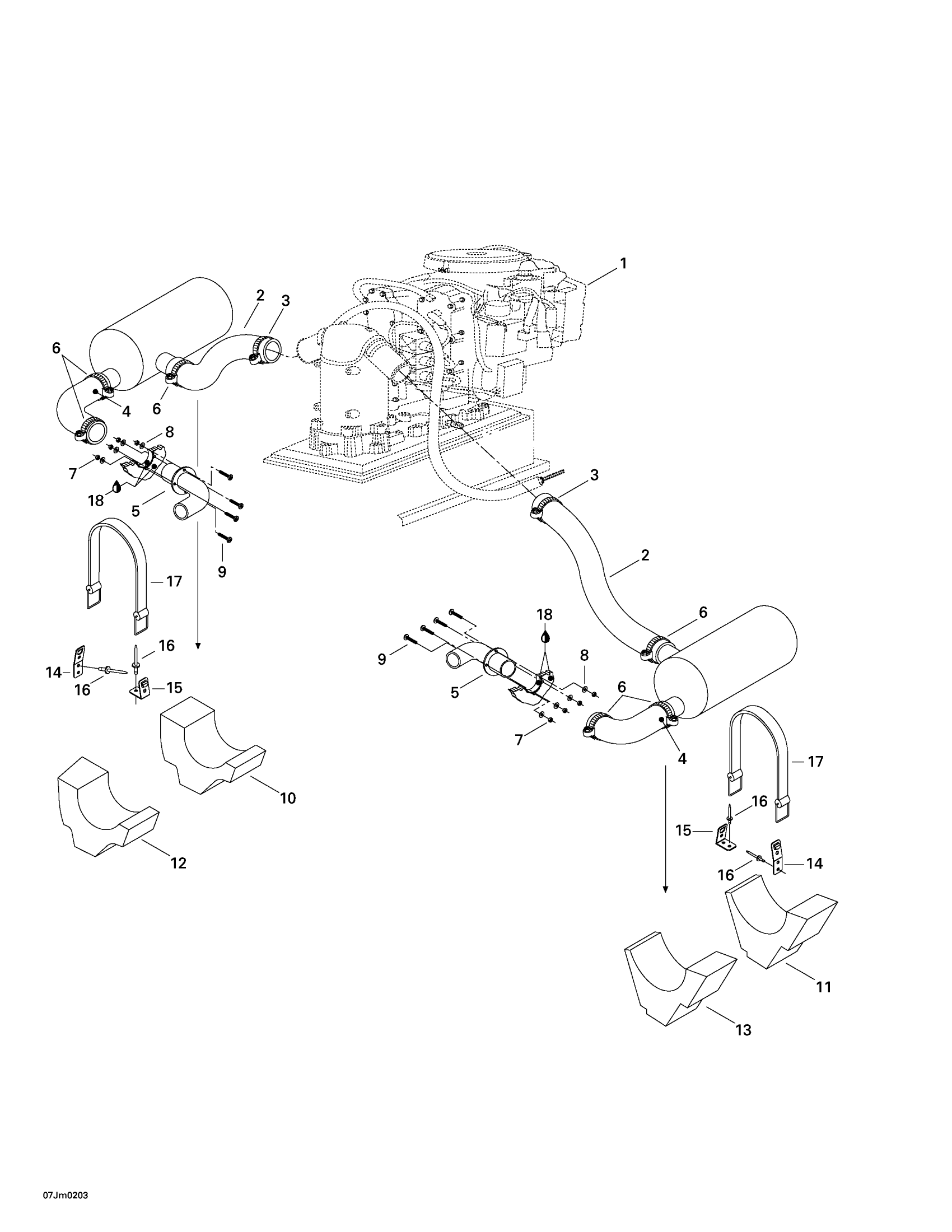

Sea-doo Speedster, 5700, 2002 01- Exhaust System Diagram

Not Available As Spare Part - Friction Washer

FLEXIBLE EXHAUST - Call your local BRP dealership

Tridon Clamp

Exhaust Hose

Not Available As Spare Part - Friction Washer

Tridon Clamp

Hex. Elastic Stop Nut M6

Flat Washer M6, Stainless

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

Front Muffler Support (Port)

Front Muffler Support (Starboard)

Rear Muffler Support (Port)

Rear Muffler Support (Starboard)

STRAP CLIP - Call your local BRP dealership

Strap Clip 90°

Pop Rivet 3/16"

STRAP - Call your local BRP dealership

Silicone Sealant 51388, 300 ml
