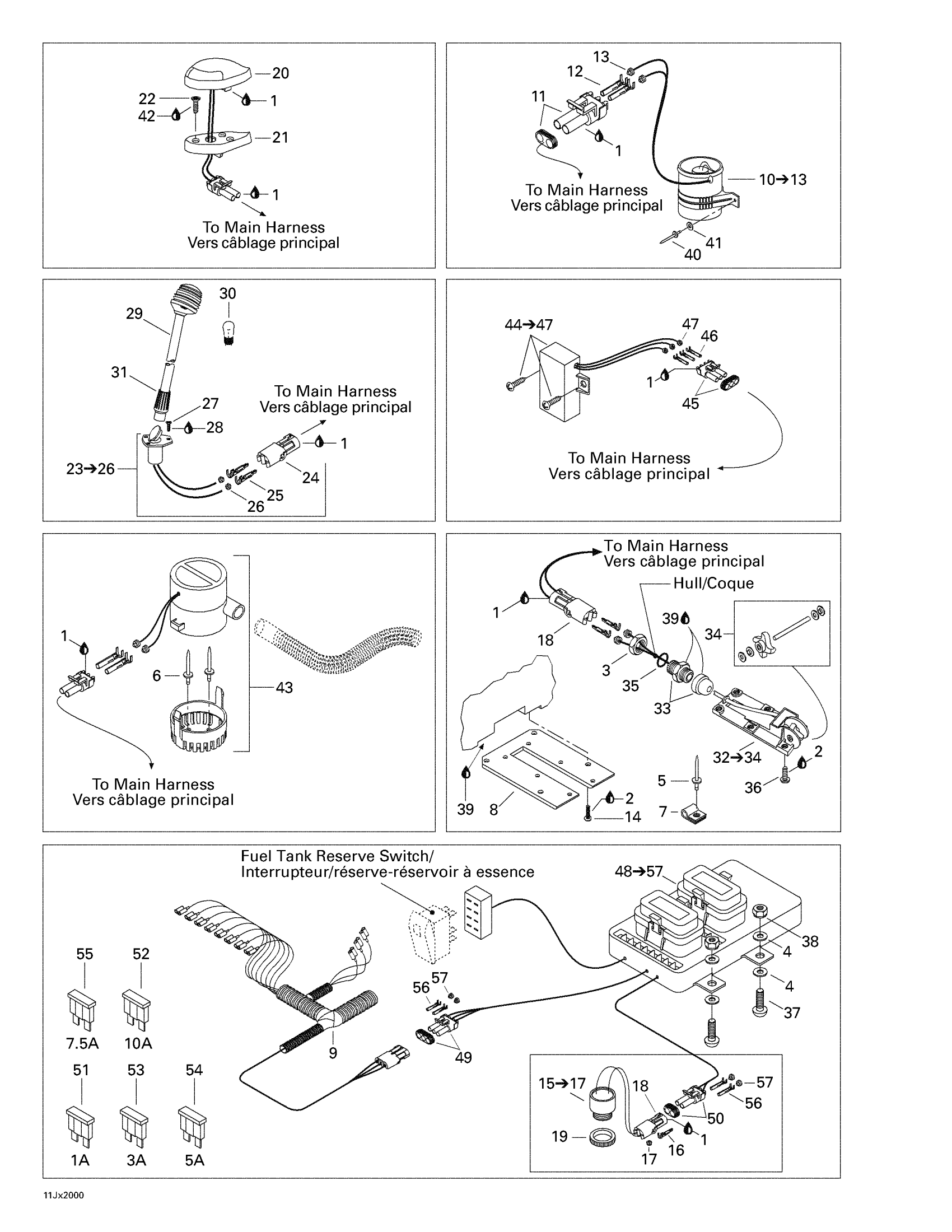

Sea-doo Speedster, 5690, 2000 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Loctite 243, 10 ml

293800060

$21.49

3

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Avdel Rivet 3/16"

293150037

$0.56

6

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

7

Cable Clamp 3/16”

204100026

Unavailable

8

Sensor Support

204470538

Unavailable

9

Accessories Harness

204470468

Unavailable

10

Fan Ass'y | Includes 44 to 47

204470108

$144.99

11

Male Connector, 2 Circuits

278000220

$15.49

12

Female Terminal

278000223

$3.19

13

Wire Seal

278000218

$4.39

14

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Wire Seal

278000218

$4.39

18

Female Housing, 2 Circuits

278000217

$9.59

19

Buzzer Nut

278000707

Unavailable

20

Front Lamp

204470311

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.90

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Female Housing, 2 Circuits

278000217

$9.59

25

Male Terminal | XT Models

278000222

$3.19

26

Wire Seal

278000218

$4.39

27

SCREW M4 X 30 - Call your local BRP dealership

208443070

Unavailable

28

Loctite 243, 10 ml

293800060

$21.49

29

Rear Lamp Pole | Includes 29 - 31.

204470206

Unavailable

30

Bulb

204470053

Unavailable

31

COLLAR - Call your local BRP dealership

204470350

Unavailable

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

37

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Silicone Sealant 51388, 300 ml

296000309

$36.99

40

Pop Rivet 3/16"

293150008

$0.50

41

Flat Washer 5 mm, Stainless

234052600

$0.77

42

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

43

Bilge Pump This part replaces 204470220.

278002020

$99.49

44

Water sensor | Includes 44 - 47.

204470476

Unavailable

45

Male Housing, 3 Circuits

278000273

$9.59

46

Female Terminal

409007300

$0.45

47

Wire Seal

710000048

$7.69

48

Fuse Block | Includes 48 - 57.

204470470

Unavailable

49

Male Housing, 3 Circuits

278000273

$9.59

50

Male Connector, 2 Circuits

278000220

$15.49

51

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

52

Fuse, 10 Amperes | North America

278001197

$2.21

53

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

54

Fuse, 5 Amperes | CE

278000344

$3.28

55

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

56

Female Terminal

278000223

$3.19

57

Wire Seal

278000218

$4.39
