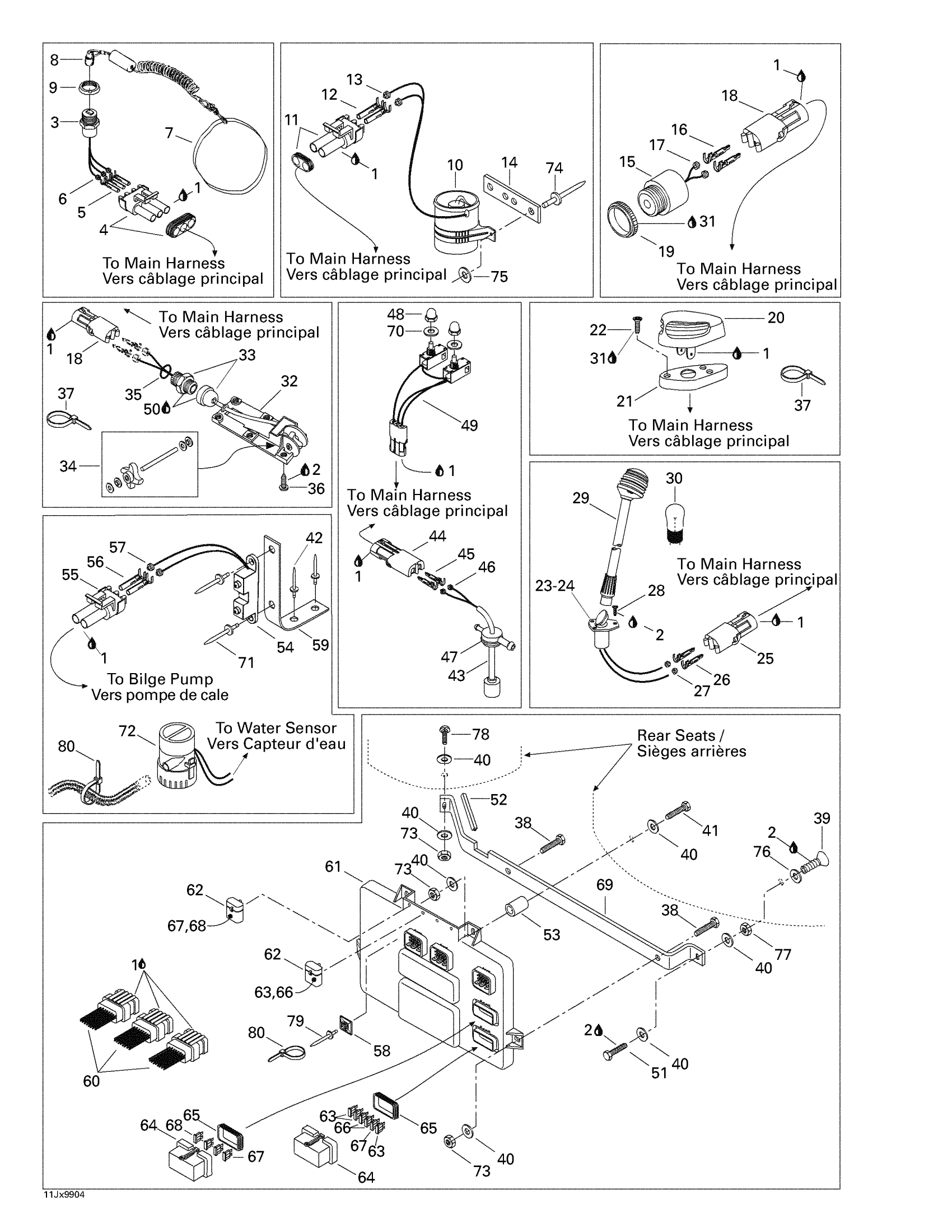

Sea-doo Speedster, 5678, 1999 10- Electrical Accessories 2 Diagram
#
1
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
2
Loctite 243, 10 ml
293800060
$21.49
3
Safety Switch This part replaces 278002325.
278002773
$114.99
4
Male Housing, 3 Circuits
278000273
$9.59
5
Female Terminal
278000223
$3.19
6
Wire Seal
278000218
$4.39
7
Safety Strap
204470025
Unavailable
8
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
9
Safety Nut (DESS Switch)
278002963
$3.28
10
Fan Ass'y | Includes 44 to 47
204470108
$144.99
11
Male Connector, 2 Circuits
278000220
$15.49
12
Female Terminal
278000223
$3.19
13
Wire Seal
278000218
$4.39
14
Fan Support
204470249
Unavailable
15
BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.
278000887
Unavailable
16
Male Terminal | XT Models
278000222
$3.19
17
Wire Seal
278000218
$4.39
18
Female Housing, 2 Circuits
278000217
$9.59
19
Buzzer Nut
278000707
Unavailable
20
Front Lamp
204470311
Unavailable
21
FRONT LAMP SUPPORT - Call your local BRP dealership
204470072
Unavailable
22
Phillips Screw M4 X 16
208641660
$0.90
23
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
24
Rear Lamp Base Ass'y | Includes 12 to 16
204471177
Unavailable
25
Female Housing, 2 Circuits
278000217
$9.59
26
Male Terminal | XT Models
278000222
$3.19
27
Wire Seal
278000218
$4.39
28
SCREW M4 X 30 - Call your local BRP dealership
208443070
Unavailable
29
Rear Lamp Pole | Includes 29 - 31.
204470206
Unavailable
30
Bulb
204470053
Unavailable
31
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
32
SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.
278001998
Unavailable
33
ELECTRIC CONNECTION - Call your local BRP dealership
293710031
Unavailable
34
Paddle Wheel Kit
295500108
Unavailable
35
SEAL WASHER - Call your local BRP dealership
278000416
Unavailable
36
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208551060
Unavailable
37
Tie Wrap 94 mm | 4X4
293750001
$1.03
38
Hex. Forming Screw M6 X 20
207162060
$1.29
39
Shouldered Screw M8 x 35
204070305
Unavailable
40
Flat Washer M6, Stainless
234062600
$0.77
41
Hex. Screw M6 X 50
207065060
$2.22
42
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
43
OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.
204470106
Unavailable
44
Female Housing, 2 Circuits
278000217
$9.59
45
Male Terminal | XT Models
278000222
$3.19
46
Wire Seal
278000218
$4.39
47
Grommet
204470104
Unavailable
48
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
49
IGNITION SWITCH - Call your local BRP dealership | Replaced by Single Switch (Cutting and Splicing Required
204470142
Unavailable
50
Silicone Sealant 51388, 300 ml
296000309
$36.99
51
Hex. Screw M6 X 16
207161660
$1.59
52
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
53
Nylon Spacer
204470256
Unavailable
54
WATER SENSOR - Call your local BRP dealership
204470038
Unavailable
55
Male Connector, 2 Circuits
278000220
$15.49
56
Female Terminal
278000223
$3.19
57
Wire Seal
278000218
$4.39
58
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
59
Sensor Support
204470058
Unavailable
60
Harness Ass'y
204470307
Unavailable
61
Electronic Module Ass'y | Includes 57 - 64.
204470155
Unavailable
62
Fuse Holder
278000379
Unavailable
63
FUSE, 7.5 AMPERES - Call your local BRP dealership | CE
278000704
Unavailable
64
FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.
278002102
$36.99
65
Cover Seal
278001070
Unavailable
66
Fuse, 10 Amperes | North America
278001197
$2.21
67
FUSE, 3 AMPERES - Call your local BRP dealership | CE
278001196
Unavailable
68
Fuse, 5 Amperes | CE
278000344
$3.28
69
Electronic Module Support
204470255
Unavailable
70
Spacer (Nylon)
204470258
Unavailable
71
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
72
Bilge Pump This part replaces 204470220.
278002020
$99.49
73
Hex. Elastic Stop Nut M6
232561600
$1.15
74
Pop Rivet 3/16"
293150043
$2.09
75
Flat Washer M5, Stainless
234051600
$0.77
76
Flat Washer 10 mm, Stainless
234001600
$1.15
77
Hex. Jam Nut M10
232100600
$2.22
78
Hex. Screw M6 X 30
207163060
$1.48
79
Pop Rivet 3/16"
293150008
$0.50
80
Tie-Rap 180 mm
414115200
$0.11
