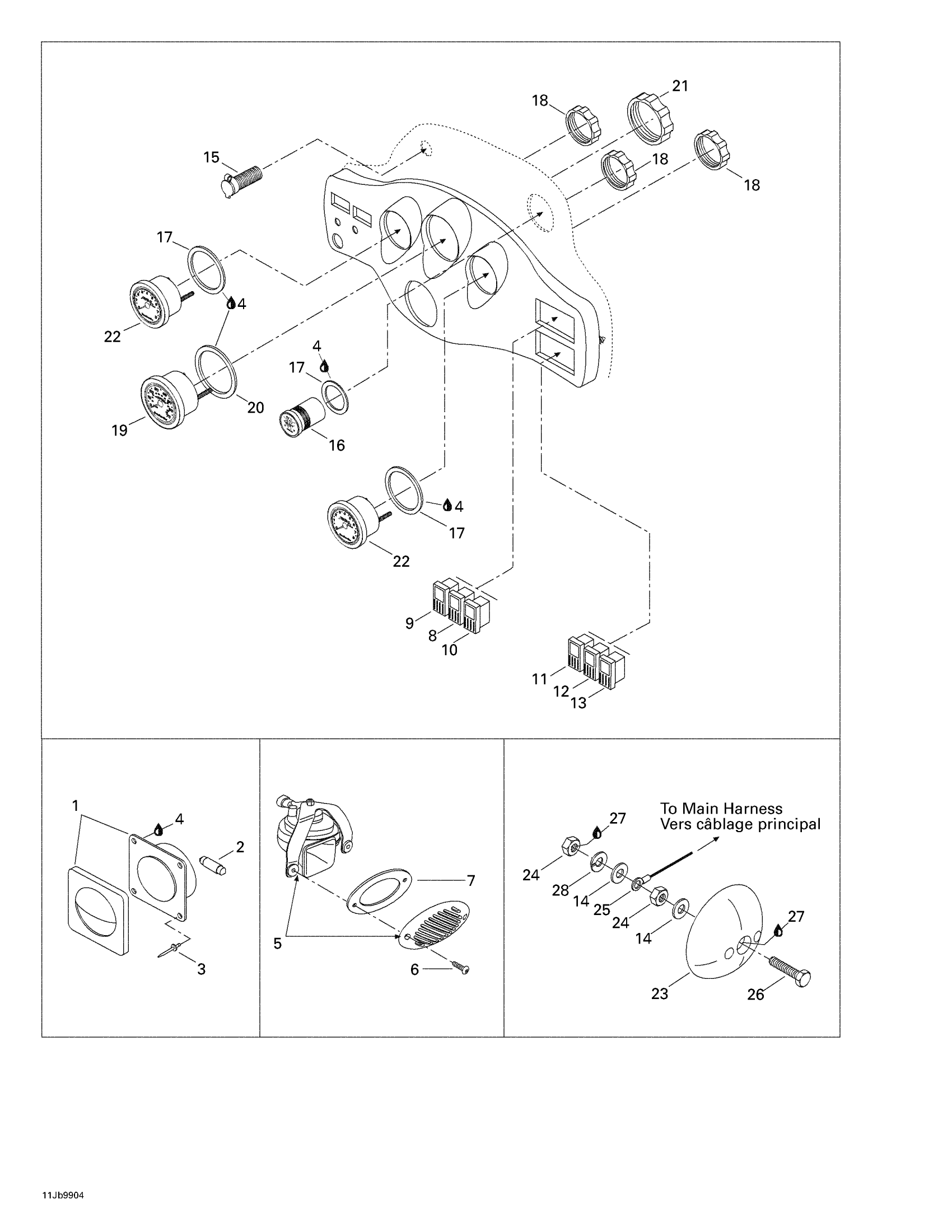

Sea-doo Speedster, 5678, 1999 10- Electrical Accessories 1 Diagram
#
Description
Price
1
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
2
BULB - Call your local BRP dealership
204470081
Unavailable
3
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
4
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
5
Horn | Includes 5 - 6.
20470033
Unavailable
6
SCREW-RD.HD.PH. - Call your local BRP dealership
211000100
Unavailable
7
Horn Gasket
293250089
Unavailable
8
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
9
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
10
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
11
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
12
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
13
Fuel Tank Reserve Switch | Includes 40 - 41.
204470103
Unavailable
14
Flat Washer M6, Stainless
234062600
$0.77
15
DC Outlet
710001248
$37.99
16
Fuel/Oil Gauge
204470319
Unavailable
17
Gasket
204470308
Unavailable
18
Gauge Nut
204470146
Unavailable
19
Speedometer Gauge
204470320
Unavailable
20
Gasket
204470309
Unavailable
21
Gauge Nut
204470171
Unavailable
22
Tachometer Gauge
204470321
Unavailable
23
Anode
204470290
Unavailable
24
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
25
Anode Extension
204470334
Unavailable
26
Hex. Screw
204100001
Unavailable
27
Silicone Sealant 51388, 300 ml
296000309
$36.99
28
Lock Washer Helical M6
234161601
$1.15
