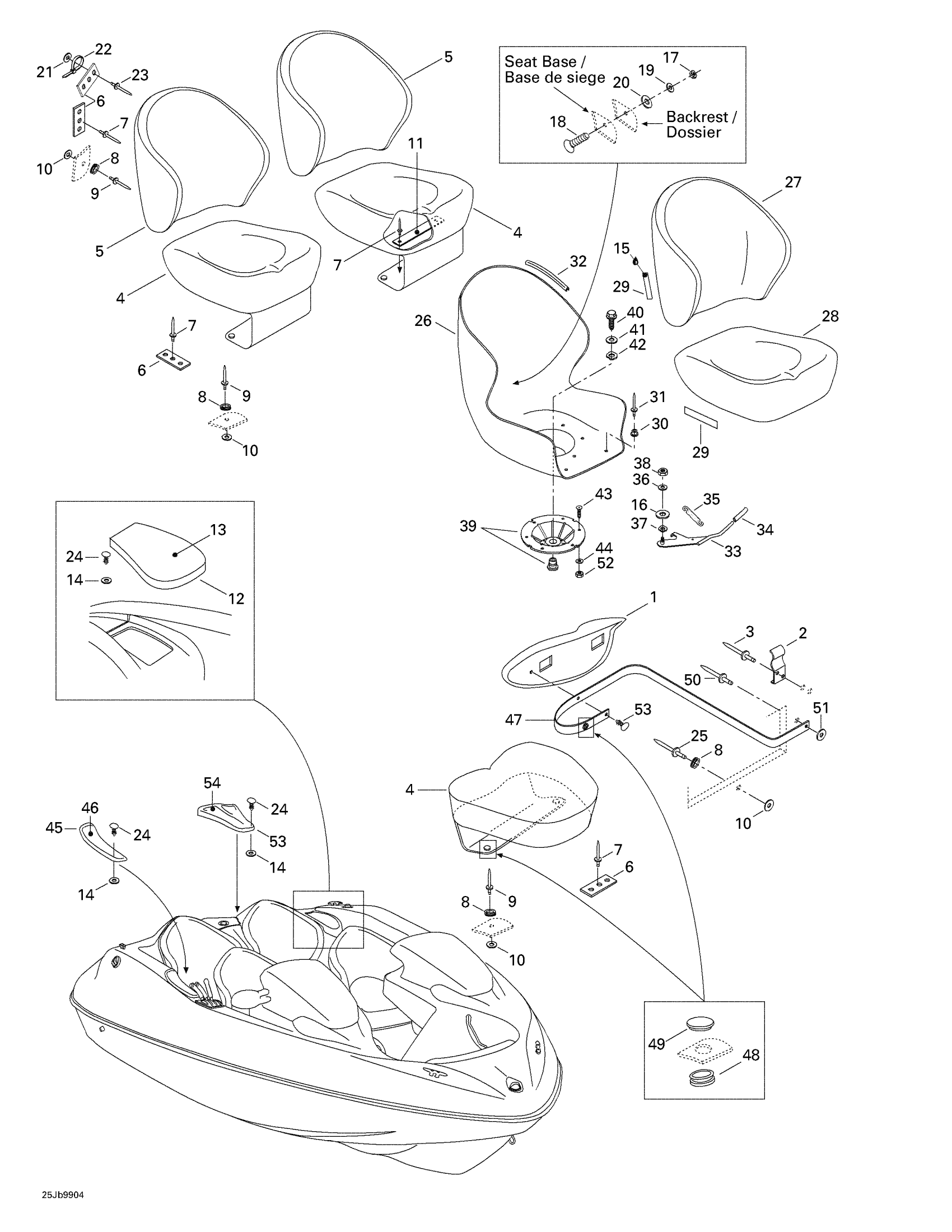

Sea-doo Speedster, 5678, 1999 09- Seats Diagram
#
1
Front Backrest Ass'y (Bright Yellow) | Includes 1 - 5.
204610502
Unavailable
2
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
3
Pop Rivet 3/16"
293150043
$2.09
4
Seat Cushion (Bright Yellow)
204610492
Unavailable
5
Backrest Cushion (Bright Yellow)
204610504
Unavailable
6
VELCRO STRIP - Call your local BRP dealership
293740004
Unavailable
7
Pop Rivet 3/16"
293150008
$0.50
8
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
9
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
10
Flat Washer M3, Stainless
234032600
$0.55
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Arm Rest Ass'y RH (Bright Yellow)
204610493
Unavailable
Arm Rest Ass'y LH (Bright Yellow)
204610495
Unavailable
13
Cover, Arm Rest RH (Bright Yellow)
204610494
Unavailable
Cover, Arm Rest LH (Bright Yellow)
204610496
Unavailable
14
Flat Washer M6, Stainless
234062600
$0.77
15
Loctite 4471, 20 G
293800058
Unavailable
16
Washer (Nylon)
204610440
Unavailable
17
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
18
Socket Head Screw M4 X 16
205441660
$1.47
19
Flat Washer
204610439
Unavailable
20
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
21
Flat Washer M5, Stainless
234051600
$0.77
22
Tie-Rap
293750017
Unavailable
23
Pop Rivet 3/16"
293150013
$1.37
24
Black, Dart
293730006
$0.99
25
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
26
Driver Seat Ass'y (Incl. 17-20) | Includes 26 - 38.
204610507
Unavailable
27
Backrest Cushion (Bright Yellow)
204610504
Unavailable
28
Seat Cushion (Bright Yellow)
204610492
Unavailable
29
VELCRO STRIP - Call your local BRP dealership
293740004
Unavailable
30
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
31
Pop Rivet 1/8
293150061
Unavailable
32
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
33
Lever Arm
204610524
Unavailable
34
Handle
204610348
Unavailable
35
SPRING - Call your local BRP dealership
204610349
Unavailable
36
Stainless Flat Washer M6
234061600
$0.33
37
Washer
211200059
Unavailable
38
Hex. Elastic Stop Nut M6
232561600
$1.15
39
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
40
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
41
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
42
WASHER - Call your local BRP dealership
293200056
Unavailable
43
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
44
Flat Washer M6, Stainless
234062600
$0.77
45
Driver Arm Rest | Includes 45 - 46.
204610498
Unavailable
46
Cover, Arm Rest-Driver (Bright Yellow)
204610499
Unavailable
47
Retaining Strap
204610389
Unavailable
48
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
49
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
50
Pop Rivet 3/16"
293150043
$2.09
51
Flat Washer 5 mm, Stainless
234052600
$0.77
52
Hex. Elastic Stop Nut M6
232561600
$1.15
53
Arm Rest-Center | Includes 53 - 54.
204610505
Unavailable
54
Cover, Arm Rest-Center (Bright Yellow)
204610506
Unavailable
