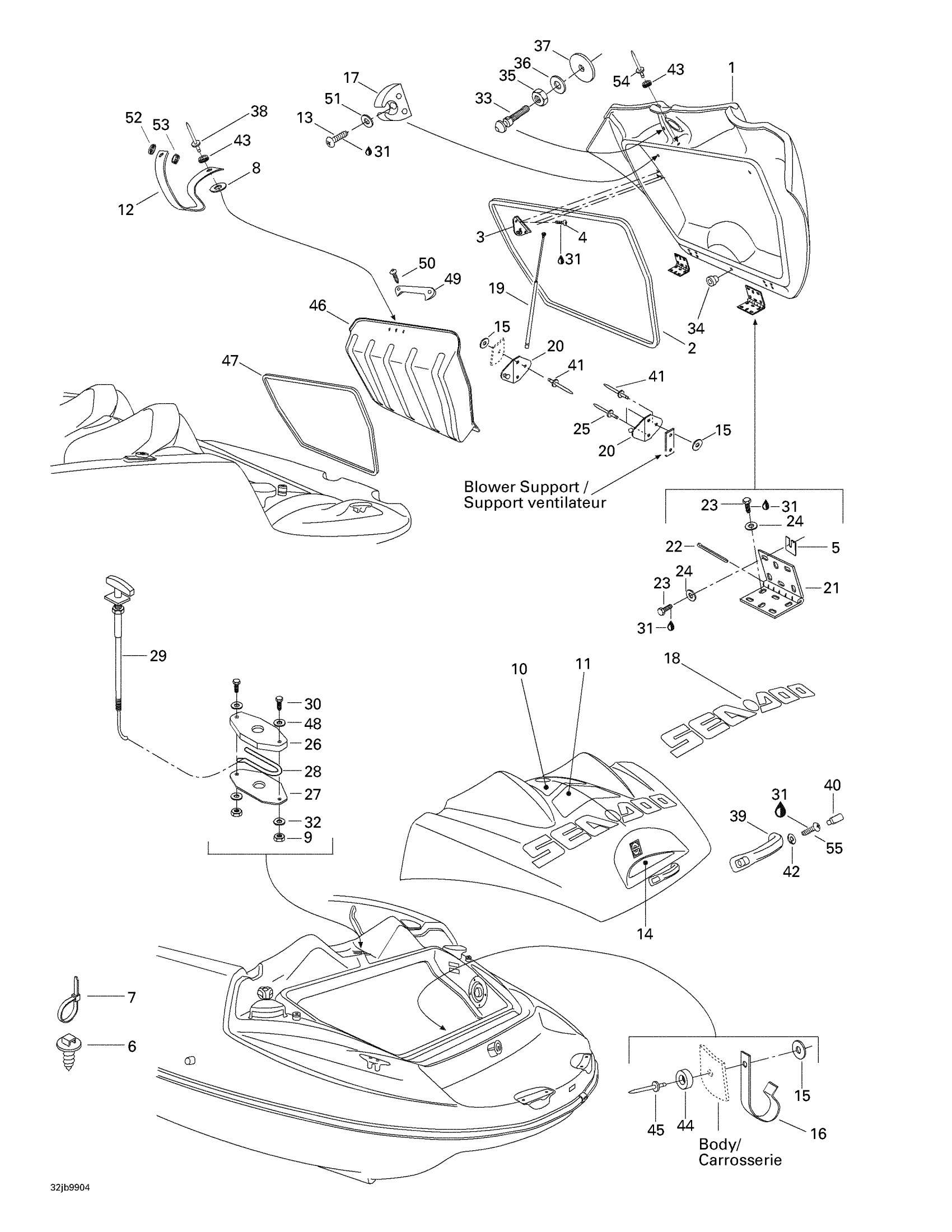

Sea-doo Speedster, 5678, 1999 09- Engine Compartment Diagram
#
1
Engine Cover
204070371
Unavailable
2
Was 293200017 Neoprene Seal
219704365
$149.99
3
CYLINDER SUPPORT - Call your local BRP dealership
291000654
Unavailable
4
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
5
SPACER 3.2 MM - Call your local BRP dealership
204070047
Unavailable
SPACER 1.6 MM - Call your local BRP dealership
204070088
Unavailable
6
Mount Dart
293730040
$1.04
7
Tie-Rap 180 mm
414115200
$0.11
Tie Wrap 368 mm
293750008
$1.04
8
Flat Washer M3, Stainless
234032600
$0.55
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
Ski Shaft Carpet
204070152
Unavailable
11
Engine Cover Carpet
204070151
Unavailable
12
Nylon Strap (Black) (Meter)
204000075
Unavailable
13
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
14
Step Carpet
204070153
Unavailable
15
Flat Washer M5, Stainless
234051600
$0.77
16
Clip Cable
414839700
Unavailable
17
Pole Support
291000642
Unavailable
18
Nonskid "Sea-Doo" Carpet
204070253
Unavailable
19
RH Retainer Cylinder
204070178
Unavailable
20
Body Cylinder Support
204070252
Unavailable
21
HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21
204070127
Unavailable
22
Cotter Pin M2.5 X 12
204070205
Unavailable
23
Hex. Screw M6 X 25
207162560
$1.47
24
Stainless Flat Washer M6
234061600
$0.33
25
Pop Rivet 3/16"
293150008
$0.50
26
LATCH BASE - Call your local BRP dealership
204070037
Unavailable
27
LATCH COVER - Call your local BRP dealership
204070036
Unavailable
28
SPRING - Call your local BRP dealership
204070038
Unavailable
29
LATCH CABLE - Call your local BRP dealership
204070049
Unavailable
30
Hex. Screw M6 X 35
207163560
$1.49
31
Loctite 243, 10 ml
293800060
$21.49
32
Flat Washer M6, Stainless
234062600
$0.77
33
Latch Stud
204700001
Unavailable
34
GROMMET - Call your local BRP dealership
293720017
Unavailable
35
Hex. Jam Nut M10
232100600
$2.22
36
Flat Washer 10 mm, Stainless
234002600
$2.22
37
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
38
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
39
GRIP HANDLE, BLACK - Call your local BRP dealership
204073190
Unavailable
40
GRIP HANDLE, BLACK - Call your local BRP dealership
204073190
Unavailable
41
Pop Rivet 3/16"
293150043
$2.09
42
Stainless Flat Washer M6
234061600
$0.33
43
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
44
Rubber Stopper
293830043
Unavailable
45
Pop Rivet 3/16"
293150013
$1.37
46
Access Cover
204050155
Unavailable
47
Seal Tray 1000Mm Long
219704368
$13.99
48
Stainless Flat Washer M6
234061600
$0.33
49
Black, Handle - Call your local BRP dealership
204050159
Unavailable
50
Hex. Flange Screw K40 X 16
241141660
$1.48
51
Flat Washer 4 mm
234040600
$0.55
52
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
53
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
54
Pop Rivet 1/8”
293150015
$0.40
55
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
