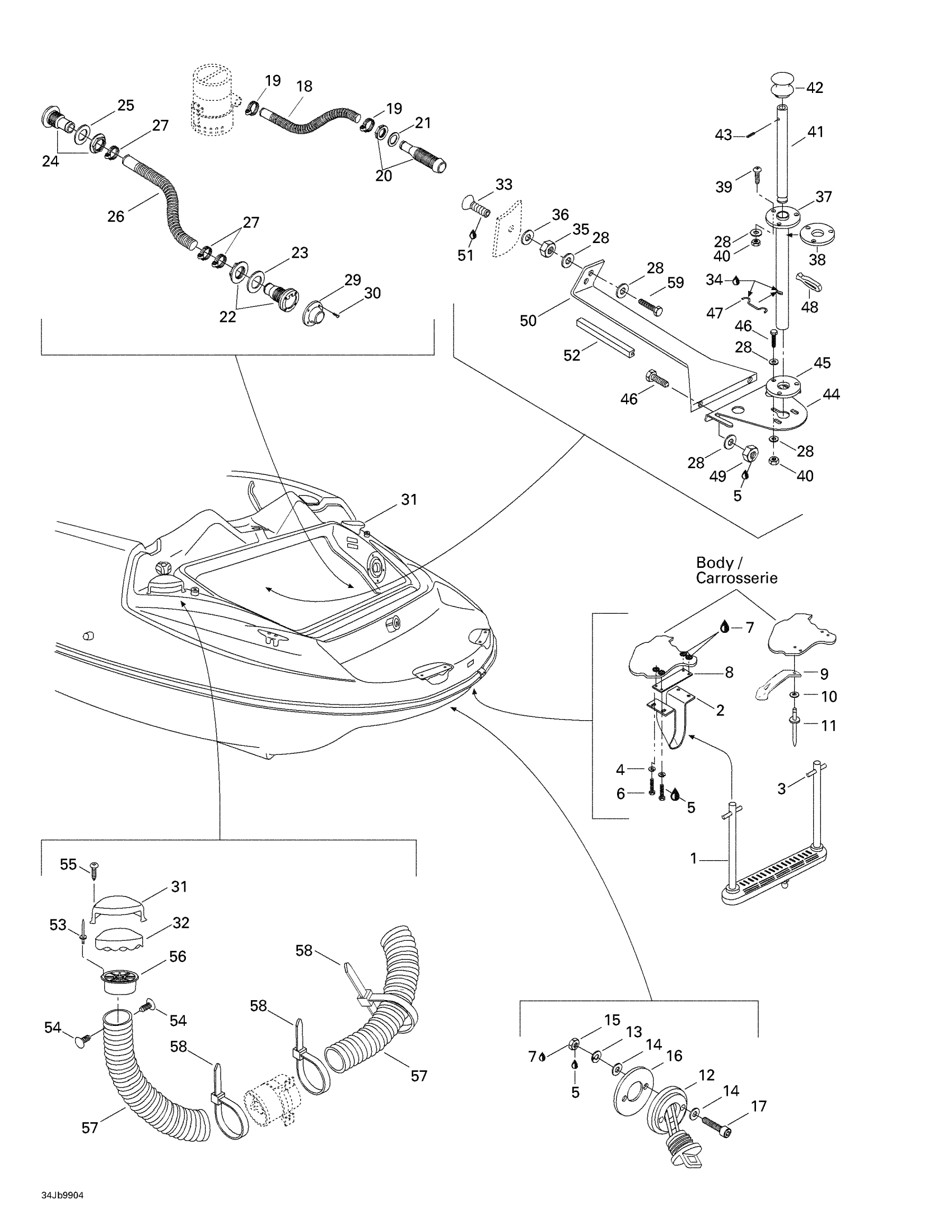

Sea-doo Speedster, 5678, 1999 09- Body And Accessories Diagram
#
1
LADDER - Call your local BRP dealership
204060187
Unavailable
2
U-BRACKET - Call your local BRP dealership
204060141
Unavailable
3
ROLL PIN M8 X 55 - Call your local BRP dealership
211300021
Unavailable
4
Lock Washer Helical M6
234161601
$1.15
5
Loctite 243, 10 ml
293800060
$21.49
6
Hex. Screw M6 X 25
207162560
$1.47
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
PROTECTOR 97 - Call your local BRP dealership
204060057
Unavailable
9
Hood Latch
570027100
$13.49
10
Flat Washer 5 mm, Stainless
234052600
$0.77
11
Pop Rivet 3/16"
293150013
$1.37
12
Drain Plug
292000187
$14.49
13
Lock Washer 4 mm
234141601
$1.15
14
Flat Washer 4 mm
234040600
$0.55
15
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
16
GASKET - Call your local BRP dealership
293250030
Unavailable
17
Socket Head Screw M4 X 25
205042560
$2.22
18
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
19
Norma Clamp
293650080
Unavailable
20
Fitting
293710162
$13.49
21
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
22
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
23
GASKET - Call your local BRP dealership
292800106
Unavailable
24
FITTING - Call your local BRP dealership
293710060
Unavailable
25
GASKET - Call your local BRP dealership
292800106
Unavailable
26
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
27
Norma Clamp
293650074
$17.05
28
Flat Washer M6, Stainless
234062600
$0.77
29
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
30
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
31
Clam Shell Vent
204050118
Unavailable
32
Insulation Foam
204050119
Unavailable
33
Shouldered Screw M8 x 35
204070305
Unavailable
34
Synthetic Grease, 400 G
293550010
Unavailable
35
Hex. Jam Nut M10
232100600
$2.22
36
Flat Washer 10 mm, Stainless
234001600
$1.15
37
FIXED TUBE - Call your local BRP dealership
291001057
Unavailable
38
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
39
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership
208563060
Unavailable
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
SKI SHAFT - Call your local BRP dealership
204072616
Unavailable
42
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
43
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
44
Fixation Plate
291001059
Unavailable
45
RETAINER WASHER - Call your local BRP dealership
291001060
Unavailable
46
Hex. Forming Screw M6 X 20
207162060
$1.29
47
SPRING - Call your local BRP dealership
291001205
Unavailable
48
Windshield Latch
570023800
$4.49
49
Hex. Elastic Stop Nut M6
232561600
$1.15
50
Support Plate
204050089
Unavailable
51
Loctite 243, 10 ml
293800060
$21.49
52
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
53
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
54
Black, Dart
293730006
$0.99
55
Flange Screw K40 X 20
241642060
$1.15
56
Vent Adaptor
204050160
Unavailable
57
Was 204050122 Vent Hose 4"
219704358
$25.99
58
Tie Rap
293750019
$3.29
59
Hex. Screw M6 X 16
207161660
$1.59
