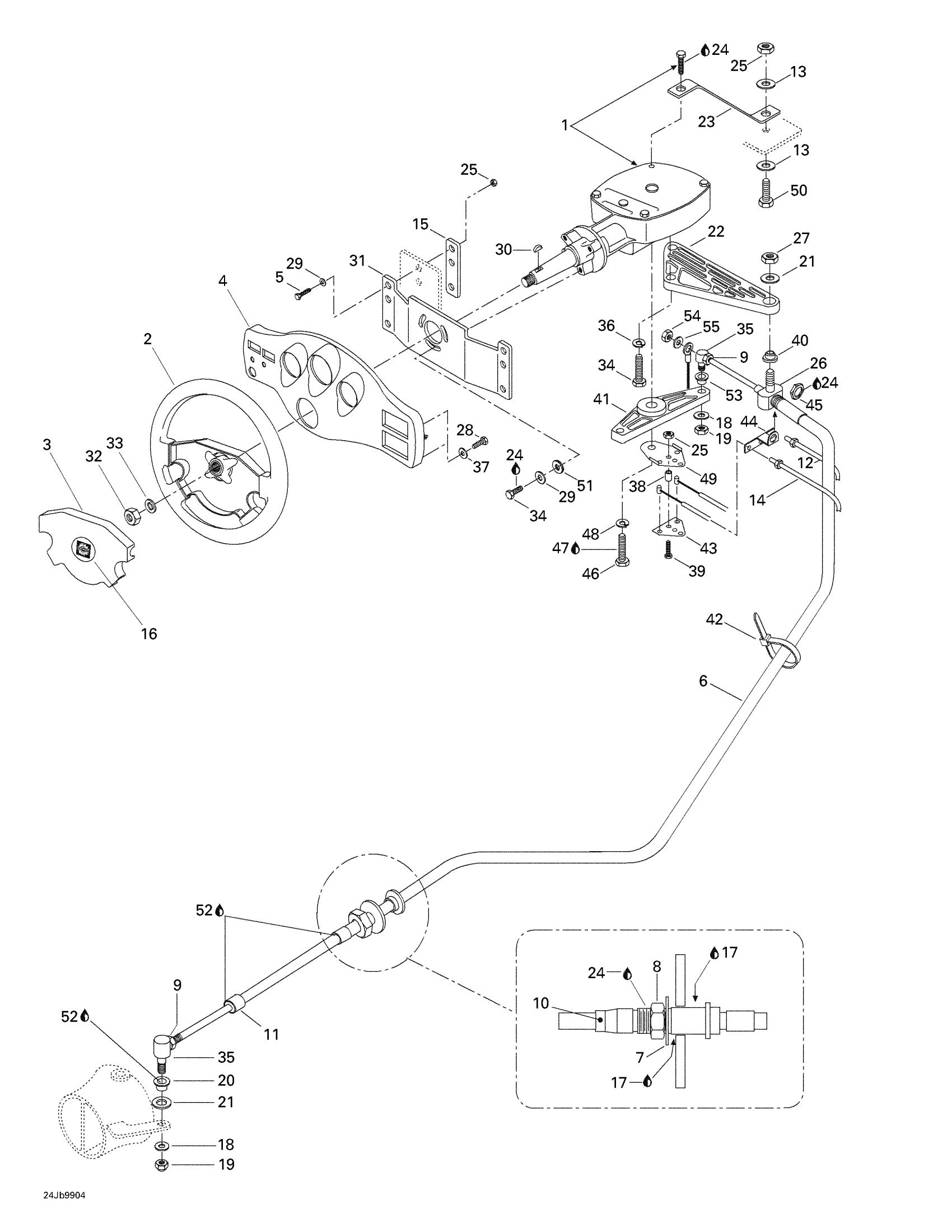

Sea-doo Speedster, 5678, 1999 07- Steering System Diagram
#
1
Helm Ass'y
204390003
Unavailable
2
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
3
Black, Steering Center
204390076
Unavailable
4
Facies
204390074
Unavailable
5
Hex. Screw M6 X 30
207163060
$1.48
6
STEERING CABLE ASS'Y - Call your local BRP dealership | Includes 6 - 9.
204390145
Unavailable
7
Washer
277000438
Unavailable
8
Nut
277000437
Unavailable
9
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
10
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
11
Terminal Wiper
277000441
$11.99
12
THROTTLE CABLE R.H - Call your local BRP dealership
204390077
Unavailable
13
Flat Washer M6, Stainless
234062600
$0.77
14
Throttle Cable L.H
204390078
Unavailable
15
Reinforcement Plate
204390130
Unavailable
16
BRP Logo 48mm
516008738
$16.99
17
Silicone Sealant 51388, 300 ml
296000309
$36.99
18
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
19
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
20
Bushing
204390134
Unavailable
21
Flat Washer 10 mm, Stainless
234001600
$1.15
22
Cable Support
204390125
Unavailable
23
Steering Brace
204390131
Unavailable
24
Loctite 243, 10 ml
293800060
$21.49
25
Hex. Elastic Stop Nut M6
232561600
$1.15
26
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
27
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
28
Hex. Flange Screw K40 X 25
241142560
$2.64
29
Stainless Flat Washer M6
234061600
$0.33
30
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
31
Steering Support
204390129
Unavailable
32
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
33
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
34
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
35
PIVOT - Call your local BRP dealership
277000456
Unavailable
36
Lock Washer 1/4”
211200025
$1.29
37
Flat Washer 4 mm, Stainless
234042600
$1.15
38
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
39
Hex. Forming Screw M6 X 20
207162060
$1.29
40
Flanged Bushing
293350014
$12.99
41
Arm
204390126
Unavailable
42
Tie-Rap 180 mm
414115200
$0.11
43
UPPER CLIP - Call your local BRP dealership
204390267
Unavailable
44
Cable Support
204390035
Unavailable
45
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
46
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
47
Loctite 271, 10 ml
293800005
$26.99
48
Lock Washer 1/4”
211200025
$1.29
49
Lower Clip
204390036
Unavailable
50
Hex. Screw M6 X 25
207162560
$1.47
51
External Serrated Lock Washer 6 mm
234461608
$1.15
52
Synthetic Grease, 400 G
293550010
Unavailable
53
BUSHING - Call your local BRP dealership
293350012
Unavailable
54
Elastic Stop Nut
204390147
Unavailable
55
Flat Washer M8, Stainless
234080600
$1.48
