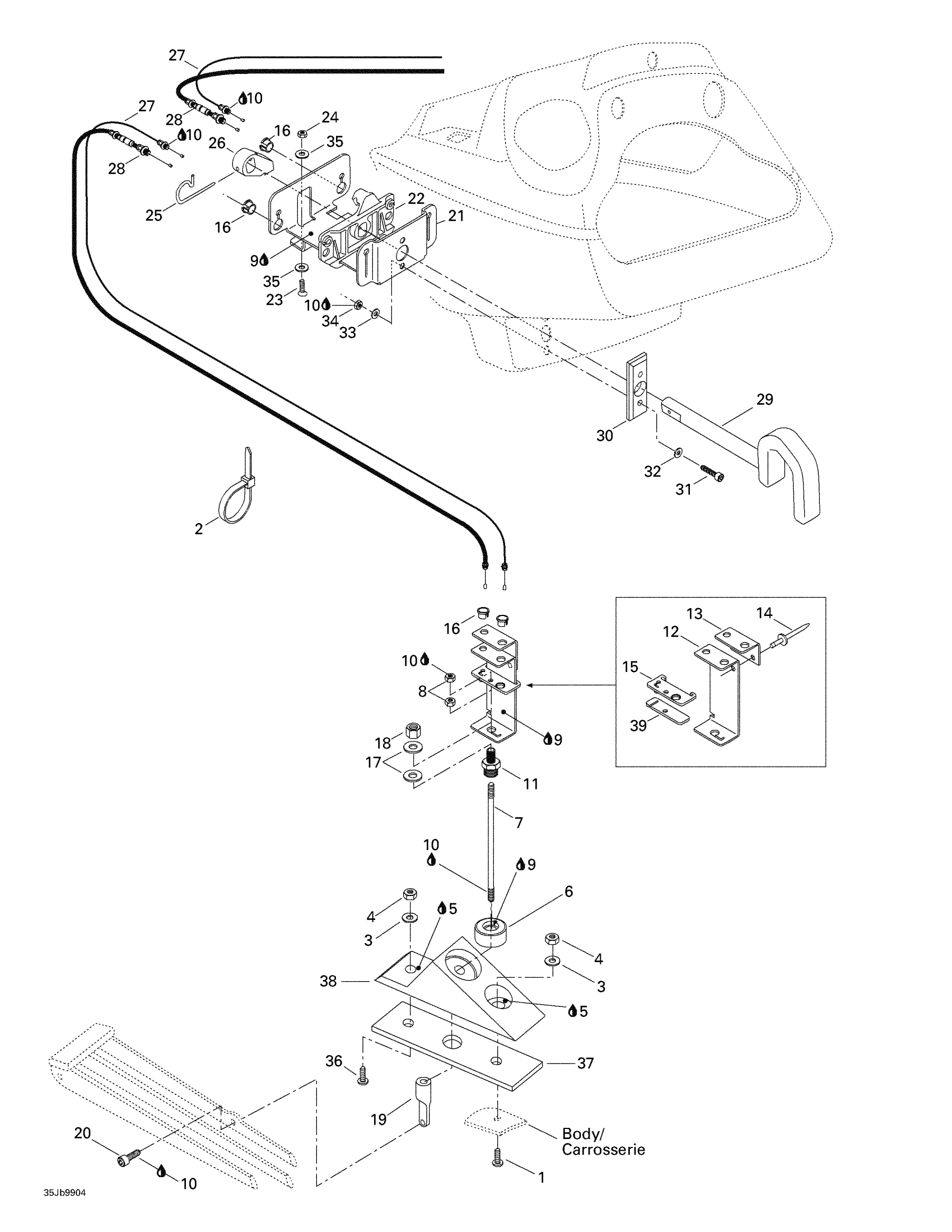

Sea-doo Speedster, 5678, 1999 05- Weedless System Diagram
#
1
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
2
Tie Wrap 142 mm
293750002
$1.25
3
Stainless Flat Washer M6
234061600
$0.33
4
Hex. Elastic Stop Nut M6
232561600
$1.15
5
Silicone Sealant 51388, 300 ml
296000309
$36.99
6
Rubber Washer
204200010
Unavailable
7
Weedless Rod
204200039
Unavailable
8
Hex. Nut
212100005
$1.35
9
Synthetic Grease, 400 G
293550010
Unavailable
10
Loctite 243, 10 ml
293800060
$21.49
11
Insert Bushing
204200040
Unavailable
12
Insert Support
204200038
Unavailable
13
Cable Protector
204200049
Unavailable
14
Pop Rivet 3/16"
204000081
$1.49
15
Rod Guide
204200058
Unavailable
16
Grommet
204200042
Unavailable
17
Flat Washer 12 mm (Nylon)
234021100
Unavailable
18
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
19
Joint
204200006
Unavailable
20
Pivot Screw
211000103
Unavailable
21
Handle Support
204200030
Unavailable
22
Handle Guide
204200041
Unavailable
23
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
$1.15
25
Weedless Spring
204200046
Unavailable
26
Catch Reworked
204200047
Unavailable
27
Weedless Cable Upper
204200028
Unavailable
28
Weedless Cable Lower
204200029
Unavailable
29
Handle
204200043
Unavailable
30
Guide Plate
271000057
Unavailable
31
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
32
FLAT WASHER 6 MM - Call your local BRP dealership
234060600
Unavailable
33
Stainless Flat Washer M6
234061600
$0.33
34
Hex. Elastic Stop Nut M6
232561600
$1.15
35
Flat Washer M6, Stainless
234062600
$0.77
36
Phillips Screw M6 X 35 | W/O Weedless System
208563560
$2.00
37
Gasket
204200057
Unavailable
38
Weedless Insert
204200020
Unavailable
39
Contact Plate
204200059
Unavailable
