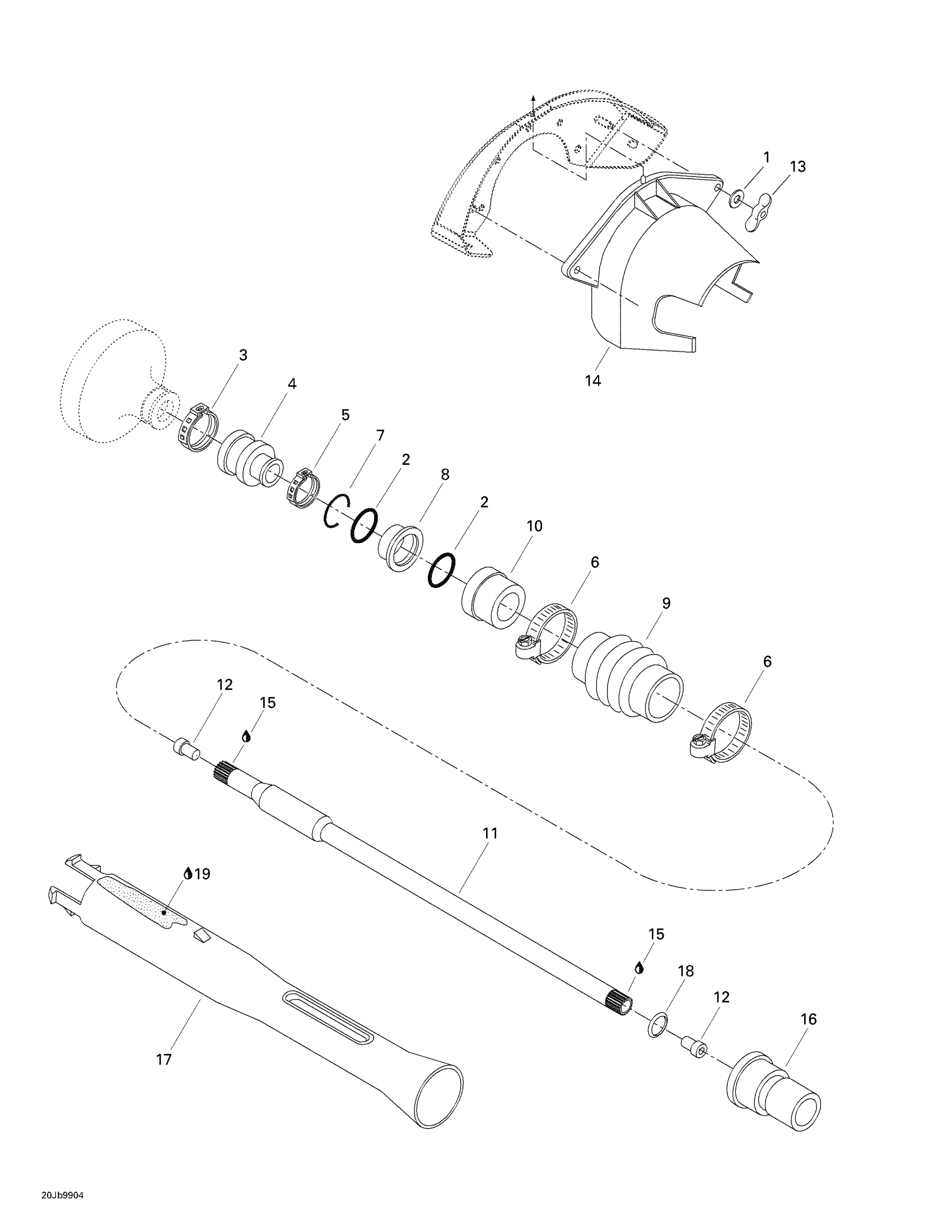

Sea-doo Speedster, 5678, 1999 Drive System Diagram

#

Description
Price

1

Flat Washer 8 mm, Stainless

234082600

$2.43

2

O-Ring

293300032

$6.03

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

$11.06

7

C-CLIP - Call your local BRP dealership

272000135

Unavailable

8

Support Ring

272000064

$66.49

9

BELLOWS - Call your local BRP dealership

272000184

$27.99

10

Carbon Ring

272000770

$45.99

11

Drive Shaft

272000096

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Nut M8

232681100

$2.19

14

RH Flywheel Guard

204120133

Unavailable

LH Flywheel Guard

204120118

Unavailable

15

Synthetic Grease, 400 G

293550010

Unavailable

16

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

17

SHAFT PROTECTOR - Call your local BRP dealership

204120130

Unavailable

18

Retaining Ring

204120132

Unavailable

19

Instant Gasket

219701421

$51.99
