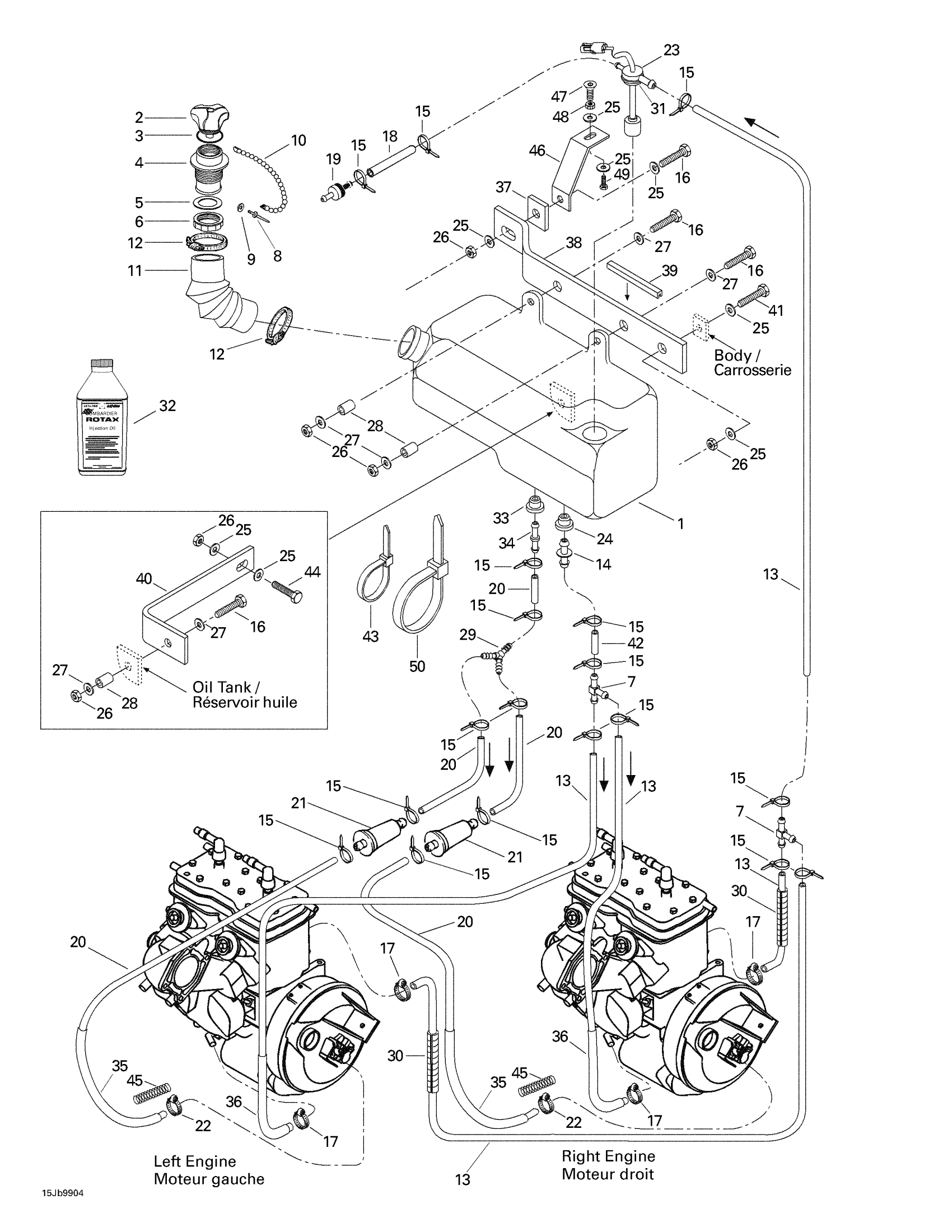

Sea-doo Speedster, 5678, 1999 02- Oil Injection System Diagram
#
1
Oil Tank
204550020
Unavailable
2
Oil Cap
275000186
Unavailable
3
O-RING - Call your local BRP dealership
293250025
Unavailable
4
Filler Neck
275000212
Unavailable
5
Gasket
293250016
Unavailable
6
Nut-Neck Oil Filler
211100013
Unavailable
7
T-FITTING - Call your local BRP dealership
293710053
Unavailable
8
Pop Rivet 1/8"
293150056
Unavailable
9
Flat Washer M3, Stainless
234032600
$0.55
10
Oil Cap Chain
275500015
Unavailable
11
Filled Neck Hose
204550035
Unavailable
12
Norma Clamp
293650077
$7.41
13
Was 275500008 Hose 12 mm
219704356
$20.49
14
STRAIGHT FITTING - Call your local BRP dealership
293710045
Unavailable
15
Tie Wrap 94 mm | 4X4
293750001
$1.03
16
Hex. Screw M6 X 35
207163560
$1.49
17
Tridon Gear Clamp
293650170
$1.99
18
Was 415110000 Polyurethane Hose 5.2 mm
219704414
$121.99
19
Check Valve
275500398
$10.99
20
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
21
OIL FILTER - Call your local BRP dealership
275000051
Unavailable
22
Oetiker Clamp
293650042
$3.09
23
OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.
204470106
Unavailable
24
Grommet | Europe
707800347
$10.49
25
Flat Washer M6, Stainless
234062600
$0.77
26
Hex. Elastic Stop Nut M6
232561600
$1.15
27
Flat Washer M6, Stainless
234062600
$0.77
28
SPACER SLEEVE - Call your local BRP dealership
204550033
Unavailable
29
Y-Fitting
204550001
Unavailable
30
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
31
Grommet
204470104
Unavailable
32
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
$12.99
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
$43.99
OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.
779123
Unavailable
SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership
413710500
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
33
Grommet
709200285
$9.69
34
STRAIGHT FITTING - Call your local BRP dealership
293710046
Unavailable
35
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
36
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
37
Spacer 6.3 mm
204550058
Unavailable
38
Upper Bracket
204550036
Unavailable
39
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
40
Lower Bracket
204550037
Unavailable
41
Hex. Screw M6 X 30
207063060
$1.89
42
Was 275500008 Hose 12 mm
219704356
$20.49
43
Tie-Rap 180 mm
414115200
$0.11
44
Hex. Screw M6 X 30
207063060
$1.89
45
Spring
270000377
Unavailable
46
Bracket
204550072
Unavailable
47
Shouldered Screw M8 x 35
204070305
Unavailable
48
Hex. Jam Nut M10
232100600
$2.22
49
Hex. Screw M6 X 16
207161660
$1.59
50
Tie Wrap 368 mm
293750008
$1.04
