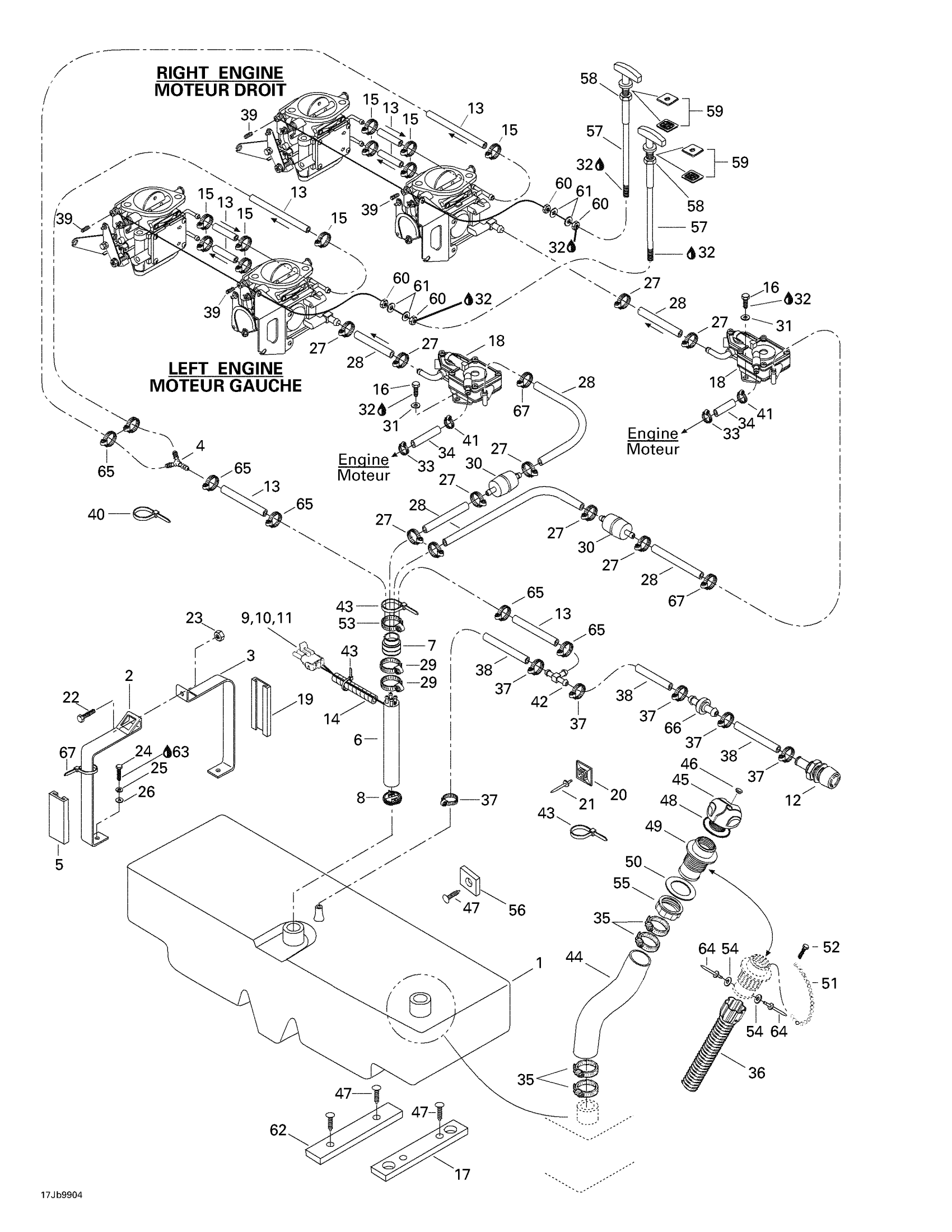

Sea-doo Speedster, 5678, 1999 02- Fuel System Diagram
#
1
Plastic Fuel Tank
204560053
Unavailable
2
Tank Bracket
204560065
Unavailable
3
Tank Bracket
204560072
Unavailable
4
Y-Fitting
293710059
$9.69
5
Protector Strip
204560075
Unavailable
6
BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48
204560223
Unavailable
7
Fuel Tube Adaptor
204560066
Unavailable
8
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Male Housing, 3 Circuits
278000273
$9.59
12
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
13
Hose 6 mm (Meter)
204560099
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
16
Hex. Cap Screw M6 X 12
207161260
$1.26
17
Rubber Pad
204060185
Unavailable
18
Fuel Pump
270500388
$84.99
19
Protector Strip
204560076
Unavailable
20
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
21
Pop Rivet 3/16"
293150008
$0.50
22
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
23
Hex. Elastic Nut M8
232581600
$1.48
24
Hex. Screw M8 X 30
207183060
$1.58
25
Lock Washer 8 mm, Stainless
234181601
$0.55
26
Flat Washer 8 mm, Stainless
234082600
$2.43
27
NORMA CLAMP - Call your local BRP dealership
293650087
Unavailable
28
Hose 5/16"
204560070
Unavailable
29
Norma Clamp
293650081
$12.18
30
FUEL FILTER - Call your local BRP dealership
204560077
Unavailable
31
Stainless Flat Washer M6
234061600
$0.33
32
Loctite 243, 10 ml
293800060
$21.49
33
Tridon Gear Clamp
293650170
$1.99
34
HOSE-6MM. 5000MM LONG - Call your local BRP dealership
219704396
Unavailable
35
Norma Clamp
293650081
$12.18
36
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
37
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
38
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
39
Socket Set Screw M4 x 6
206540660
Unavailable
40
Tie Wrap 142 mm
293750002
$1.25
41
Oetiker Clamp
293650042
$3.09
42
T-Fitting
204560038
Unavailable
43
Tie-Rap 180 mm
414115200
$0.11
44
Exterior Hose Filler Neck
204560079
Unavailable
45
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
46
Black, Snap Cap
293000034
$9.39
47
Black, Dart
293730006
$0.99
48
Gasket
293250017
Unavailable
49
Filler Neck
275500247
Unavailable
50
Gasket
293250029
$14.82
51
Oil Cap Chain
275500015
Unavailable
52
Screw K40 X 10
241140060
$1.48
53
Norma Clamp
293650077
$7.41
54
Flat Washer M3, Stainless
234032600
$0.55
55
Filler Neck Nut, Fuel
211100012
$14.22
56
Rubber Pad
274000354
Unavailable
57
RH Choke Cable | Includes 57 - 61.
270000207
Unavailable
LH CHOKE CABLE - Call your local BRP dealership
270000208
Unavailable
58
Hex. Nut
211100007
Unavailable
59
Choke Plate
291000457
Unavailable
60
Hex. Nut M6
232160600
$1.15
61
Stainless Flat Washer M6
234061600
$0.33
62
Rubber Pad
293830055
Unavailable
63
Loctite 271, 10 ml
293800005
$26.99
64
Rivet 1/8”
293150057
Unavailable
65
Norma Clamp
293650088
Unavailable
66
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
67
Tridon Gear Clamp
293650172
$3.09
