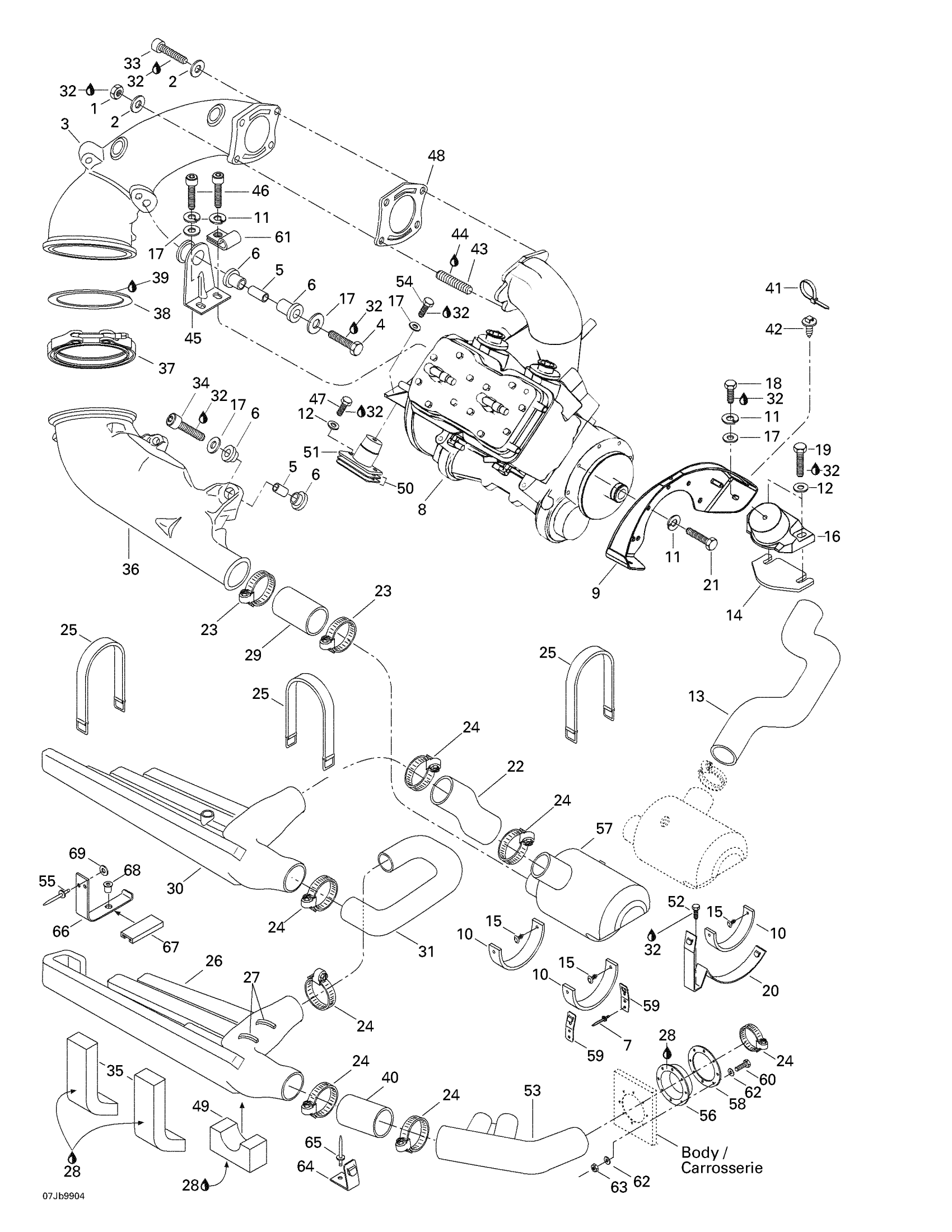

Sea-doo Speedster, 5678, 1999 Engine Support And Muffler Diagram

#

Description
Price

1

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

2

Flat Washer 10 mm, Stainless

234001600

$1.15

3

Head Pipe Ass'y | Includes 6 - 8.

274000161

Unavailable

4

Hex. Screw M8 X 40

207084060

$2.22

5

Bushing

274000254

$13.17

6

RUBBER BUSHING - Call your local BRP dealership

293830036

$14.23

7

Pop Rivet 3/16"

293150008

$0.50

8

Rotax Engine 787

270000442

Unavailable

9

Engine Support

270000359

Unavailable

10

Rubber Pad

293830055

Unavailable

11

Lock Washer 8 mm, Stainless

234181601

$0.55

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

RH Exhaust Hose

204340089

Unavailable

14

Shim 0.3 mm

270000122

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000123

Unavailable

15

Black, Dart

293730006

$0.99

16

Rubber Mount, Black

270000421

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

Hex. Screw M8 X 16

207181660

Unavailable

19

Hex. Screw M8 X 40

207184060

$2.22

20

Muffler Support

274000234

Unavailable

21

Hex. Screw M8 X 25, Scotch Grip

207382560

$2.43

22

EXHAUST HOSE L.H - Call your local BRP dealership

204340090

Unavailable

23

Norma Clamp

293650077

$7.41

24

NORMA CLAMP - Call your local BRP dealership

293650076

Unavailable

25

Retainer Strap

293850097

$11.64

26

Resonator # 2

204340071

Unavailable

27

Seal Tray 1000Mm Long

219704368

$13.99

28

Silicone Sealant 51388, 300 ml

296000309

$36.99

29

Exhaust Hose

274000170

Unavailable

30

Resonator # 1

204340070

Unavailable

31

Exhaust Hose

204340072

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Socket Head Screw M10 x 35

205003560

Unavailable

34

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

35

Foam Support, Exterior

204060191

Unavailable

36

Cone Pipe ass'y

274000210

Unavailable

37

Clamp-Exhaust

274000357

Unavailable

38

Brass Washer

274000169

Unavailable

39

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

40

Exhaust Hose | CHALLENGER 1800 (5774).

204340073

Unavailable

LH Exhaust Hose (Port Side)

204340107

Unavailable

41

Tie Wrap 142 mm

293750002

$1.25

42

Mount Dart

293730040

$1.04

43

Stud M10

211300017

Unavailable

44

Loctite 271, 10 ml

293800005

$26.99

45

Pipe Support

274000598

Unavailable

46

SOCKET SCREW M8 X 20 - Call your local BRP dealership

205082060

Unavailable

47

Hex. Screw M8 X 40

207184060

$2.22

48

Gasket

290931500

Unavailable

49

Support Foam Lower

204060190

Unavailable

50

Shim 0.3 mm - Call your local BRP dealership

204250048

Unavailable

SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.

204250049

Unavailable

51

Rubber Mount, Black

270000422

Unavailable

52

Tapping Screw M6.3 X 32

209663260

Unavailable

53

Resonator # 3

204340091

Unavailable

54

Hex. Screw M8 X 18

207181860

$1.48

55

RIVET - Call your local BRP dealership

293150065

Unavailable

56

Gasket

293250096

Unavailable

57

Expension Chamber RH (Silver)

204340114

Unavailable

Expension Chamber LH (Silver)

204340118

Unavailable

58

Ring

274000277

Unavailable

59

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

60

Hex. Screw M6 X 25

207162560

$1.47

61

Clip

293850018

Unavailable

62

Stainless Flat Washer M6

234061600

$0.33

63

Hex. Elastic Stop Nut M6

232561600

$1.15

64

Strap Clip 90°

204060017

Unavailable

65

Avdel Rivet 3/16"

293150037

$0.56

66

Resonator Support

204060192

Unavailable

67

Protector Pad

204060193

Unavailable

68

CUSHION - Call your local BRP dealership

293350016

Unavailable

69

Flat Washer 5 mm, Stainless

234052600

$0.77
