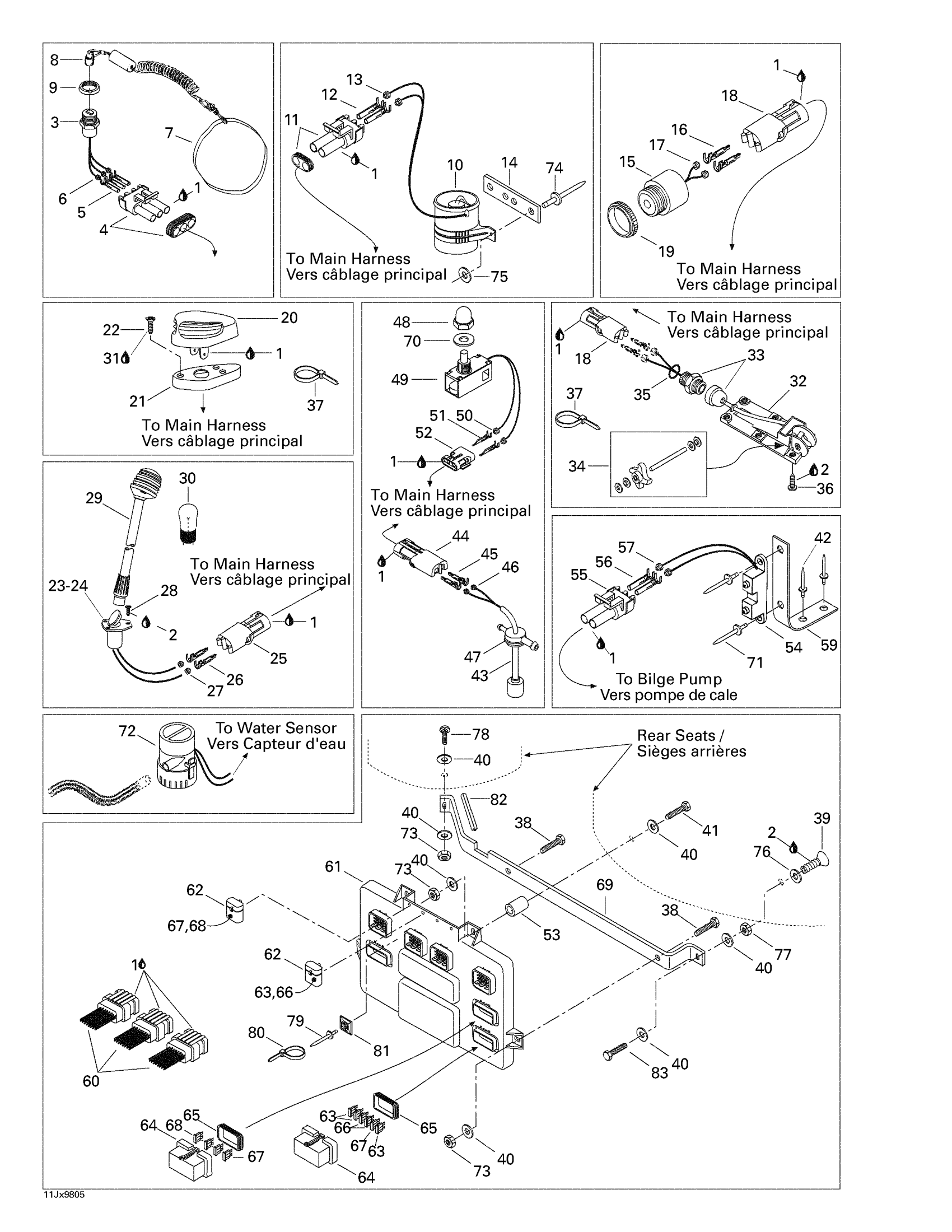

Sea-doo Speedster, 5615, 1998 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Loctite 243, 10 ml

293800060

$21.49

3

Safety Switch This part replaces 278002325.

278002773

$114.99

4

Male Housing, 3 Circuits

278000273

$9.59

5

Female Terminal

278000223

$3.19

6

Wire Seal

278000218

$4.39

7

Safety Strap

204470025

Unavailable

8

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

9

Safety Nut (DESS Switch)

278002963

$3.28

10

Fan Ass'y | Includes 44 to 47

204470108

$144.99

11

Male Connector, 2 Circuits

278000220

$15.49

12

Female Terminal

278000223

$3.19

13

Wire Seal

278000218

$4.39

14

Fan Support

204470249

Unavailable

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Wire Seal

278000218

$4.39

18

Female Housing, 2 Circuits

278000217

$9.59

19

Buzzer Nut

278000707

Unavailable

20

Front Lamp

204470071

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.90

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

25

Female Housing, 2 Circuits

278000217

$9.59

26

Male Terminal | XT Models

278000222

$3.19

27

Wire Seal

278000218

$4.39

28

Screw M4 x 30

211000136

Unavailable

29

Rear Lamp Pole | Includes 29 - 31.

204470206

Unavailable

30

Bulb

204470053

Unavailable

31

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Hex. Forming Screw M6 X 20

207162060

$1.29

39

Shouldered Screw M8 x 35

204070305

Unavailable

40

Flat Washer M6, Stainless

234062600

$0.77

41

Hex. Screw M6 X 50

207065060

$2.22

42

Not Available As Spare Part - Friction Washer

Unavailable

43

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

44

Female Housing, 2 Circuits

278000217

$9.59

45

Male Terminal | XT Models

278000222

$3.19

46

Wire Seal

278000218

$4.39

47

Grommet

204470104

Unavailable

48

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

49

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

50

Wire Seal

278000218

$4.39

51

Male Terminal | XT Models

278000222

$3.19

52

Female Housing, 2 Circuits

278000217

$9.59

53

Nylon Spacer

204470256

Unavailable

54

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

55

Male Connector, 2 Circuits

278000220

$15.49

56

Female Terminal

278000223

$3.19

57

Wire Seal

278000218

$4.39

58

Loctite 271, 10 ml

293800005

$26.99

59

Sensor Support

204470058

Unavailable

60

Harness Ass'y

204470156

Unavailable

61

Electronic Module Ass'y | Includes 57 - 64.

204470155

Unavailable

62

Fuse Holder

278000379

Unavailable

63

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

64

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

65

Cover Seal

278001070

Unavailable

66

Fuse, 10 Amperes | North America

278001197

$2.21

67

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

68

Fuse, 5 Amperes | CE

278000344

$3.28

69

Electronic Module Support

204470255

Unavailable

70

Spacer (Nylon)

204470258

Unavailable

71

Not Available As Spare Part - Friction Washer

Unavailable

72

Bilge Pump This part replaces 204470220.

278002020

$99.49

73

Hex. Elastic Stop Nut M6

232561600

$1.15

74

Pop Rivet 3/16"

293150043

$2.09

75

Flat Washer M5, Stainless

234051600

$0.77

76

Flat Washer 10 mm, Stainless

234001600

$1.15

77

Hex. Jam Nut M10

232100600

$2.22

78

Hex. Screw M6 X 30

207163060

$1.48

79

Pop Rivet 3/16"

293150008

$0.50

80

Tie-Rap 180 mm

414115200

$0.11

81

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

82

Was 271000110 Protection Trim

219704353

$15.99

83

Hex. Screw M6 X 16

207161660

$1.59
