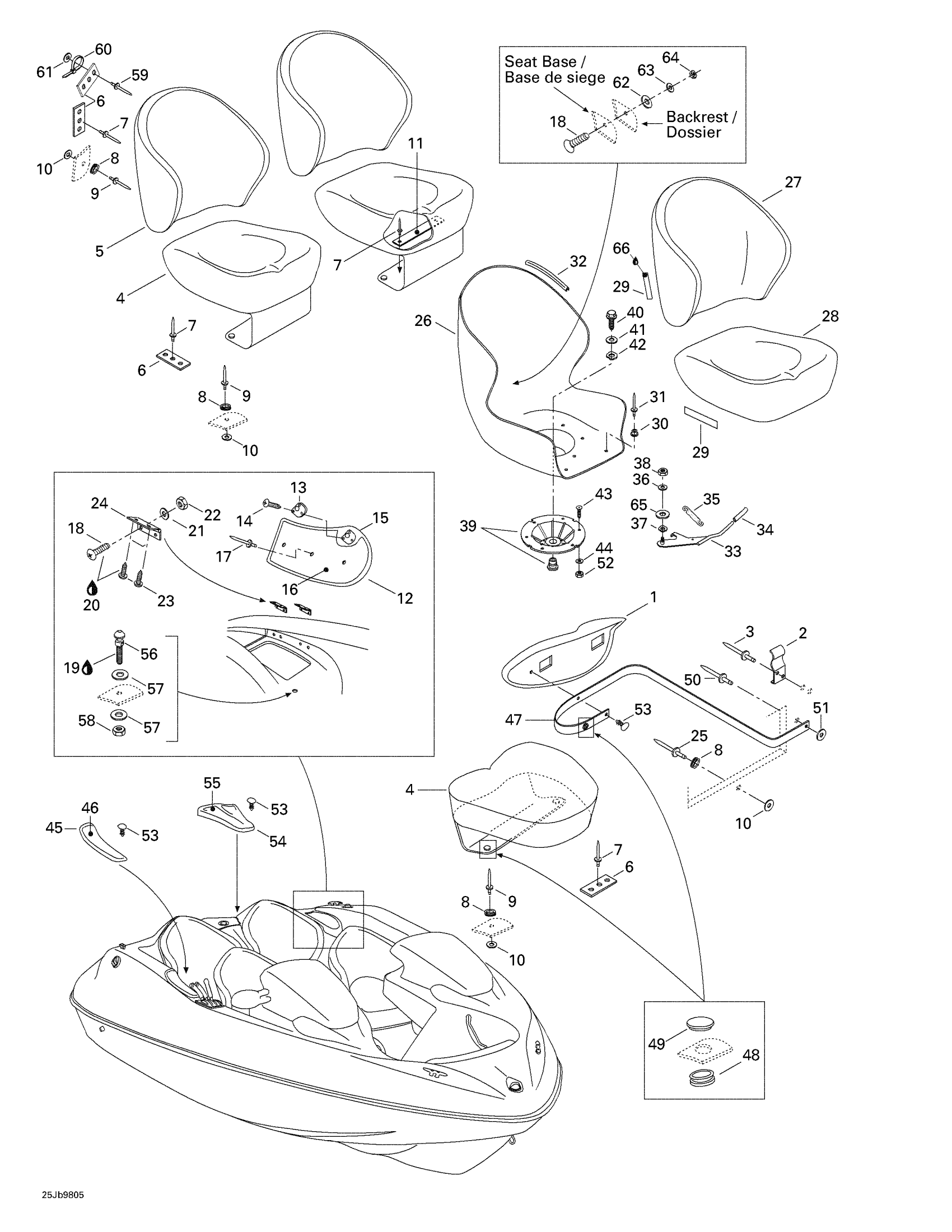

Sea-doo Speedster, 5615, 1998 Seats Diagram

#

Description
Price

1

Front Backrest Ass'y

204610247

Unavailable

2

SEAT SUPPORT - Call your local BRP dealership

204613998

Unavailable

3

Pop Rivet 3/16"

293150043

$2.09

4

Seat Cushion

204610249

Unavailable

5

Backrest Cushion

204610250

Unavailable

6

VELCRO STRIP - Call your local BRP dealership

293740004

Unavailable

7

Pop Rivet 3/16"

293150008

$0.50

8

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

9

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

10

Flat Washer M3, Stainless

234032600

$0.55

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Arm Rest Ass'y R.H | Includes 12 - 17.

204610251

Unavailable

Arm Rest Ass'y L.H

204610252

Unavailable

13

Front Seat Latch

204610178

Unavailable

14

Socket Screw M4 x 10

205441060

Unavailable

15

Cover, Arm Rest R.H

204610431

Unavailable

Cover, Arm Rest L.H

204610434

Unavailable

16

Arm Rest Bottom Cover R.H

204610436

Unavailable

Arm Rest Bottom Cover L.H

204610437

Unavailable

17

Pop Rivet 1/8

204610438

Unavailable

18

Socket Head Screw M4 X 16

205441660

$1.47

19

Loctite 243, 10 ml

293800060

$21.49

20

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

21

Flat Washer 4 mm, Stainless

234041600

$1.15

22

Jam Nut M4

218042600

Unavailable

23

Allen Screw M4 x 10

211000149

Unavailable

24

Hinge

269700031

$9.99

25

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

26

Driver Seat Ass'y | Includes 26 - 38.

204610255

Unavailable

27

Backrest Cushion

204610250

Unavailable

28

Seat Cushion

204610249

Unavailable

29

VELCRO STRIP - Call your local BRP dealership

293740004

Unavailable

30

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

31

Pop Rivet 1/8

293150061

Unavailable

32

TRIM, BLACK - Call your local BRP dealership

204610371

Unavailable

33

Lever Arm

204610347

Unavailable

34

Handle

204610348

Unavailable

35

SPRING - Call your local BRP dealership

204610349

Unavailable

36

Flat Washer M6, Stainless

234062600

$0.77

37

Washer

211200059

Unavailable

38

Hex. Elastic Stop Nut M6

232561600

$1.15

39

Swivel Plate Ass'y

204610370

Unavailable

40

SCREW-SHOULDER - Call your local BRP dealership

211000172

Unavailable

41

FLAT WASHER - Call your local BRP dealership

211200058

Unavailable

42

WASHER - Call your local BRP dealership

293200056

Unavailable

43

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.77

45

Arm Rest, Driver (Viper Red) | Includes 23 - 24. SPEEDSTER SK (RED) 5677.

204610254

Unavailable

46

Cover, Arm Rest-Driver

204610428

Unavailable

47

Retaining Strap

204610389

Unavailable

48

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

49

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

50

Pop Rivet 3/16"

293150043

$2.09

51

Flat Washer 5 mm, Stainless

234052600

$0.77

52

Hex. Elastic Stop Nut M6

232561600

$1.15

53

Black, Dart

293730006

$0.99

54

Arm Rest-Center | Includes 54 - 55.

204610253

Unavailable

55

Cover, Arm Rest-Center

204610425

Unavailable

56

Stud

204610287

Unavailable

57

Flat Washer M6, Stainless

234062600

$0.77

58

Hex. Nut M6

232061600

$1.15

59

Pop Rivet 3/16"

293150013

$1.37

60

Tie-Rap

293750017

Unavailable

61

Flat Washer M5, Stainless

234051600

$0.77

62

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

63

Flat Washer

204610439

Unavailable

64

Nut M4

211100025

Unavailable

65

Not Available As Spare Part - Friction Washer

Unavailable

66

Not Available As Spare Part - Friction Washer

Unavailable
