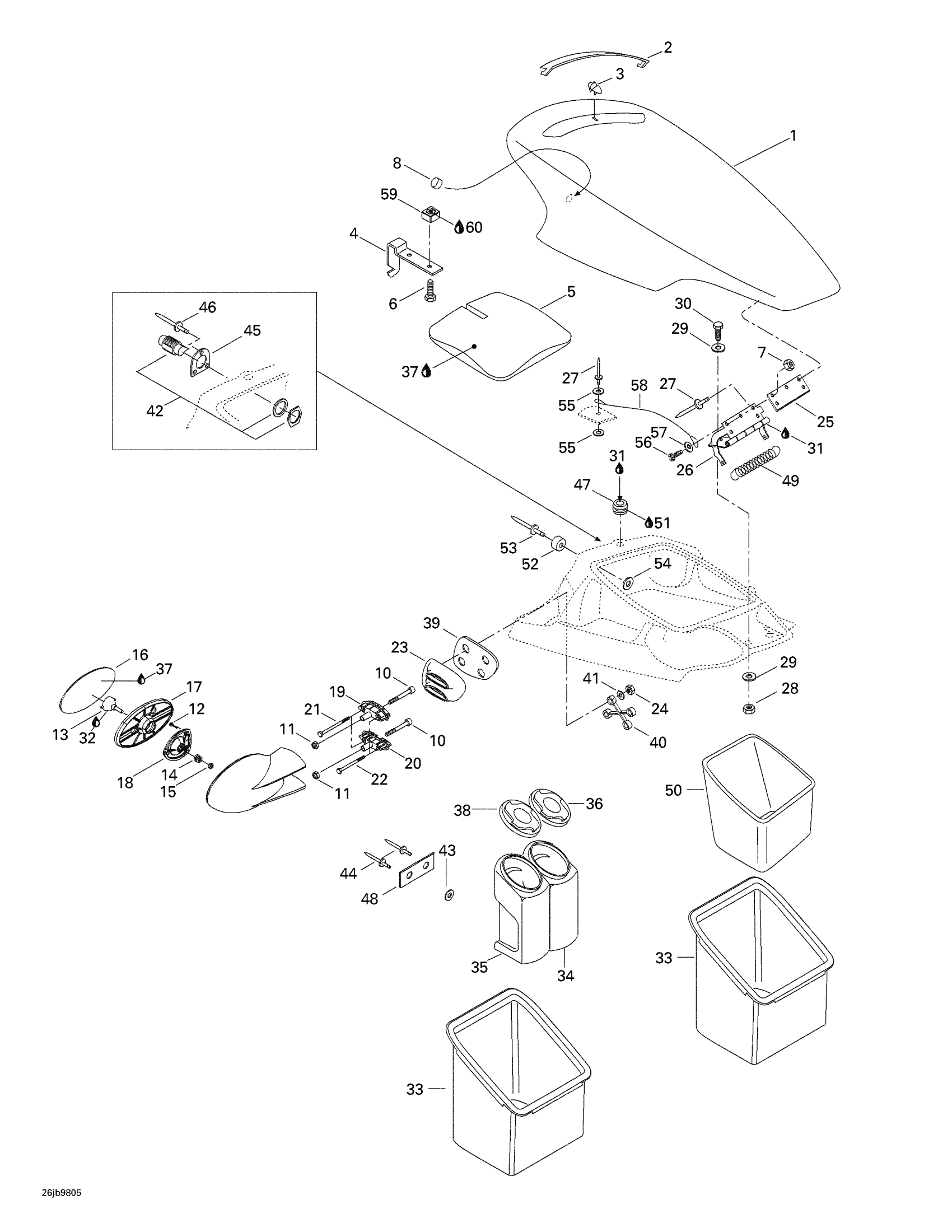

Sea-doo Speedster, 5615, 1998 Front Storage Compartments Diagram

#

Description
Price

1

Windshield This part replaces 204620079.

291003861

$380.99

2

DEFLECTOR - Call your local BRP dealership

204073803

$63.99

3

Stopper Rear

204620081

Unavailable

4

LATCH - Call your local BRP dealership

204620070

Unavailable

5

FOAM, WINDSCREEN - Call your local BRP dealership

204620080

Unavailable

6

HEX. SCREW M6 X 12 - Call your local BRP dealership

207151260

Unavailable

7

Hex. Elastic Nut M5 | X

232551600

$1.15

8

RUBBER STOPPER - Call your local BRP dealership

204620295

Unavailable

9

RH Mirror Ass'y | Includes 9 - 24.

204070273

Unavailable

10

Screw Allen M8 x 75

215987560

Unavailable

11

Hex. Elastic Nut M8

232581600

$1.48

12

Hex. Flange Screw K40 X 16

241141660

$1.48

13

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

14

Mirror Spring

269500453

$10.49

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

MIRROR - Call your local BRP dealership

269500454

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Hex. Screw M6 X 100

230060060

$7.41

22

HEX. SCREW M6 X 90 - Call your local BRP dealership

207069060

Unavailable

23

Adaptor (Black)

204070277

Unavailable

24

Hex. Nut M6

232061600

$1.15

25

RETAINING PLATE - Call your local BRP dealership

204620087

Unavailable

26

HINGE ASS'Y - Call your local BRP dealership

204620281

Unavailable

27

Pop Rivet 3/16"

293150039

$1.49

28

Hex. Elastic Nut M5 | X

232551600

$1.15

29

Flat Washer M5, Stainless

234051600

$0.77

30

Hex. Screw M5 X 20

207152060

$1.47

31

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

32

Synthetic Grease, 400 G

293550010

Unavailable

33

STORAGE TRAY - Call your local BRP dealership

269501940

$53.99

34

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

35

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

36

Storage Housing Cap

269500237

Unavailable

37

Silicone Sealant 51388, 300 ml

296000309

$36.99

38

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

39

RH Gasket

293250035

Unavailable

40

RH Reinforcement Plate

291000679

Unavailable

41

Stainless Flat Washer M6

234061600

$0.33

42

LATCH KIT - Call your local BRP dealership

204620063

Unavailable

43

Flat Washer M3, Stainless

234032600

$0.55

44

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

45

LATCH PLATE - Call your local BRP dealership

204070304

Unavailable

46

RIVET_PLASTIC - Call your local BRP dealership

204130080

Unavailable

47

Grommet

293720056

Unavailable

48

GASKET - Call your local BRP dealership

293250037

Unavailable

49

HINGE SPRING - Call your local BRP dealership

204620018

Unavailable

50

ICEBOX FOAM - Call your local BRP dealership

204630008

Unavailable

51

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

52

Rubber Stopper

293830043

Unavailable

53

Pop Rivet 3/16"

293150014

$1.09

54

Flat Washer M5, Stainless

234051600

$0.77

55

Flat Washer M5, Stainless

234051600

$0.77

56

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

57

Flat Washer 3/16

204620091

Unavailable

58

RETAINER CABLE - Call your local BRP dealership

269500524

Unavailable

59

Square Nut M5

232851600

Unavailable

59

Square Nut M5

232851600

Unavailable

60

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99
