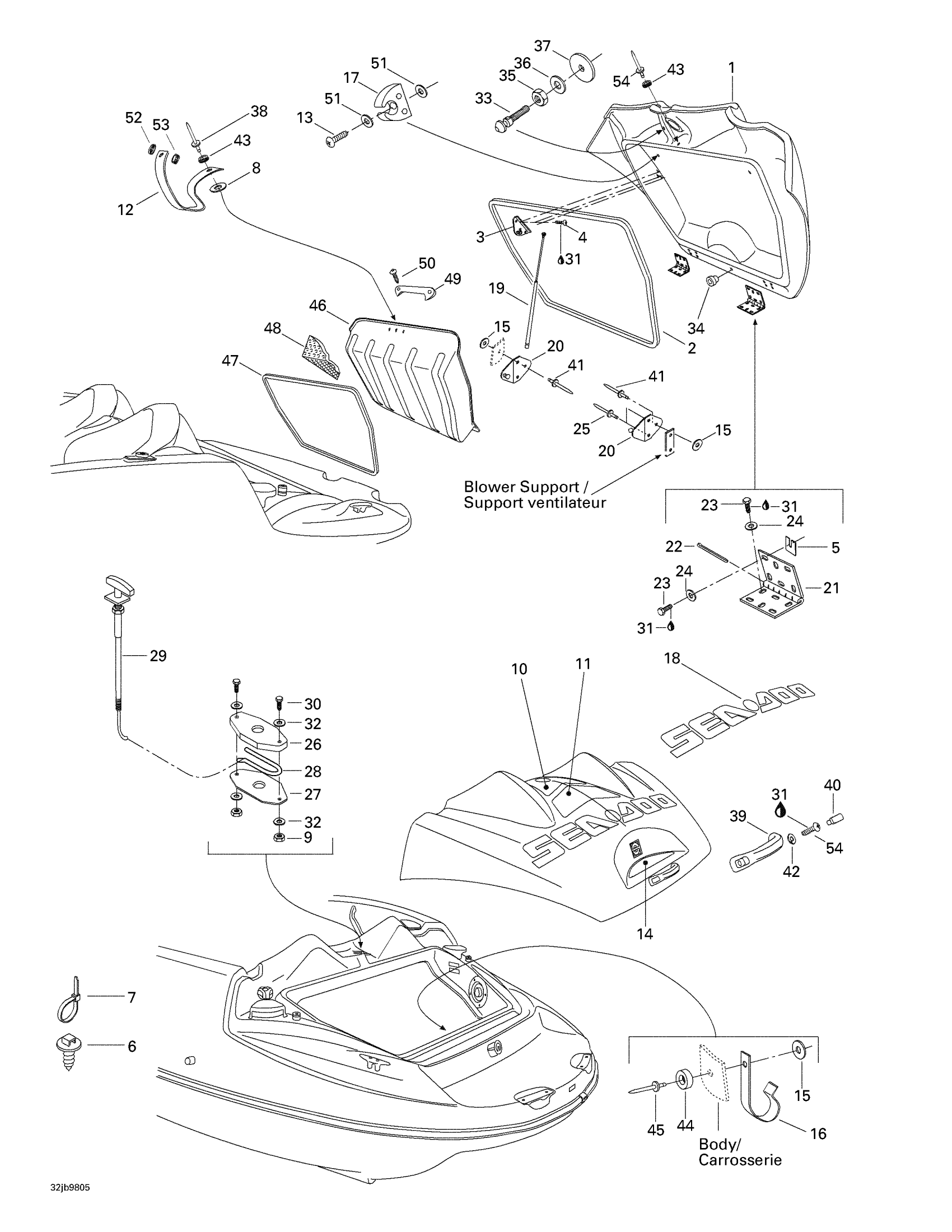

Sea-doo Speedster, 5615, 1998 Engine Compartment Diagram

#

Description
Price

1

Engine Cover

204070148

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

4

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

5

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

6

Mount Dart

293730040

$1.04

7

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

8

Flat Washer M3, Stainless

234032600

$0.55

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Ski Shaft Carpet

204070152

Unavailable

11

Engine Cover Carpet

204070151

Unavailable

12

Nylon Strap (Black) (Meter)

204000075

Unavailable

13

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

14

Step Carpet

204070153

Unavailable

15

Flat Washer M5, Stainless

234051600

$0.77

16

Clip Cable

414839700

Unavailable

17

Pole Support

291000642

Unavailable

18

Nonskid "Sea-Doo" Carpet

204070253

Unavailable

19

RH Retainer Cylinder

204070178

Unavailable

20

Body Cylinder Support

204070252

Unavailable

21

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

22

Cotter Pin M2.5 X 12

204070205

Unavailable

23

Hex. Screw M6 X 25

207162560

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

Pop Rivet 3/16"

293150008

$0.50

26

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

27

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

28

SPRING - Call your local BRP dealership

204070038

Unavailable

29

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

30

Hex. Screw M6 X 35

207163560

$1.49

31

Loctite 243, 10 ml

293800060

$21.49

32

Flat Washer M6, Stainless

234062600

$0.77

33

Latch Stud

204700001

Unavailable

34

GROMMET - Call your local BRP dealership

293720017

Unavailable

35

Hex. Jam Nut M10

232100600

$2.22

36

Flat Washer 10 mm, Stainless

234002600

$2.22

37

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

38

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

39

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

40

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

41

Pop Rivet 3/16"

293150043

$2.09

42

External Serrated Lock Washer 6 mm

234461608

$1.15

43

BOTTOM SNAP - Call your local BRP dealership

204000084

Unavailable

44

Rubber Stopper

293830043

Unavailable

45

Pop Rivet 3/16"

293150013

$1.37

46

Access Cover

204050069

Unavailable

47

Seal Tray 1000Mm Long

219704368

$13.99

48

Foam Luggage

204320035

Unavailable

49

HANDLE, WHITE - Call your local BRP dealership

291000608

Unavailable

50

Hex. Flange Screw K40 X 16

241141660

$1.48

51

Flat Washer 4 mm

234040600

$0.55

52

SNAP BASE - Call your local BRP dealership | SE

204000083

Unavailable

53

SNAP COVER - Call your local BRP dealership

204000085

Unavailable

54

Pop Rivet 1/8”

293150015

$0.40
