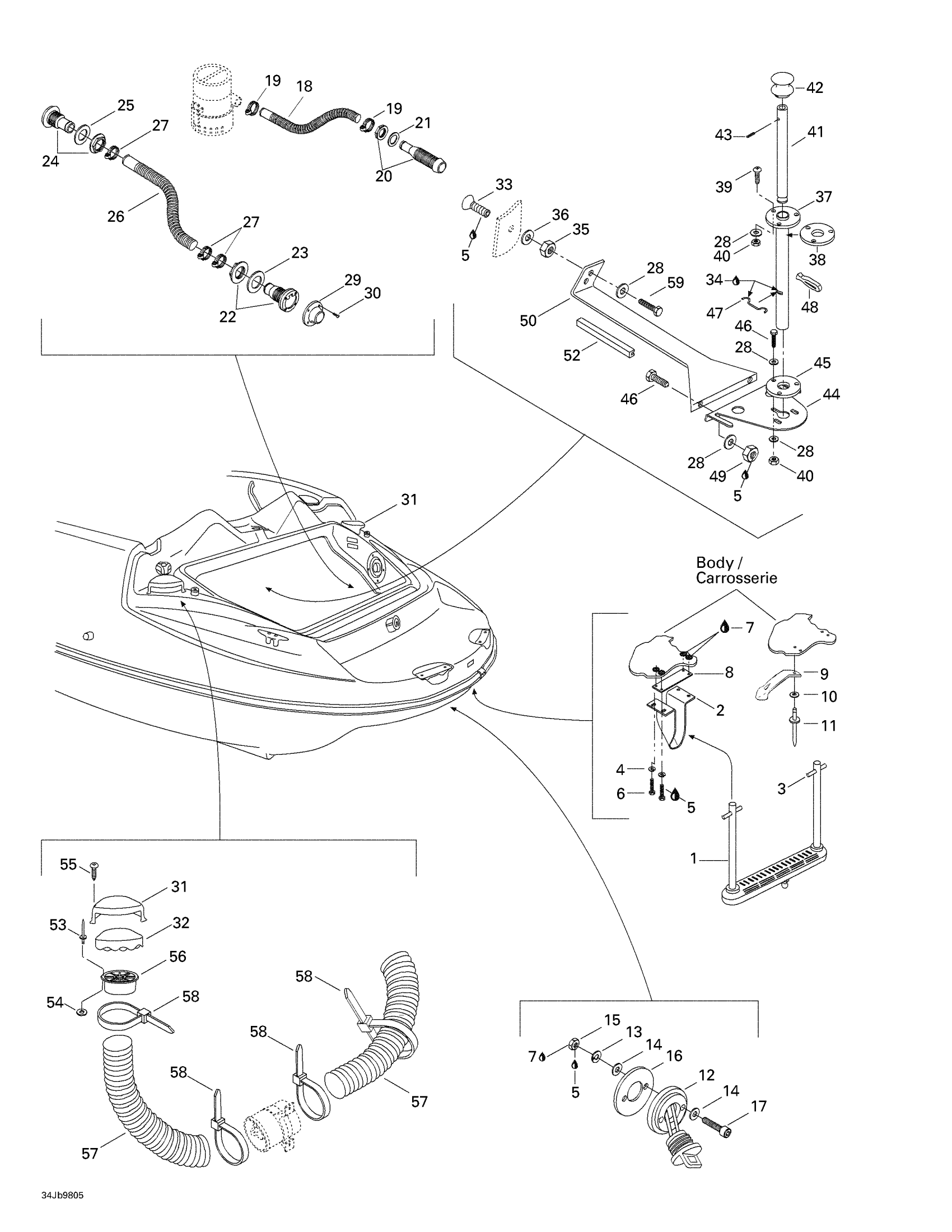

Sea-doo Speedster, 5615, 1998 Body And Accessories Diagram

#

Description
Price

1

LADDER - Call your local BRP dealership

204060187

Unavailable

2

U-BRACKET - Call your local BRP dealership

204060141

Unavailable

3

ROLL PIN M8 X 55 - Call your local BRP dealership

211300021

Unavailable

4

Lock Washer Helical M6

234161601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

Hex. Screw M6 X 25

207162560

$1.47

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

9

Hood Latch

570027100

$13.49

10

Flat Washer 5 mm, Stainless

234052600

$0.77

11

Pop Rivet 3/16"

293150013

$1.37

12

Drain Plug

292000187

$14.49

13

Lock Washer 4 mm

234141601

$1.15

14

Flat Washer 4 mm

234040600

$0.55

15

Nut M4

211100025

Unavailable

16

GASKET - Call your local BRP dealership

293250030

Unavailable

17

Socket Head Screw M4 X 25

205042560

$2.22

18

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

19

Norma Clamp

293650080

Unavailable

20

Fitting

293710162

$13.49

21

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

22

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

23

GASKET - Call your local BRP dealership

292800106

Unavailable

24

FITTING - Call your local BRP dealership

293710060

Unavailable

25

GASKET - Call your local BRP dealership

292800106

Unavailable

26

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

27

Norma Clamp

293650074

$17.05

28

Flat Washer M6, Stainless

234062600

$0.77

29

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

30

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

31

Clam Shell Vent

204050118

Unavailable

32

Insulation Foam

204050119

Unavailable

33

Shouldered Screw M8 x 35

204070305

Unavailable

34

Synthetic Grease, 400 G

293550010

Unavailable

35

Hex. Jam Nut M10

232100600

$2.22

36

Flat Washer 10 mm, Stainless

234001600

$1.15

37

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

38

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

39

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

42

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

43

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

44

Fixation Plate

291001059

Unavailable

45

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

46

Hex. Forming Screw M6 X 20

207162060

$1.29

47

SPRING - Call your local BRP dealership

291001205

Unavailable

48

Windshield Latch

570023800

$4.49

49

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

50

Support Plate

204050089

Unavailable

51

Loctite 243, 10 ml

293800060

$21.49

52

Was 271000110 Protection Trim

219704353

$15.99

53

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

54

WASHER - Call your local BRP dealership

293150007

Unavailable

55

Flange Screw K40 X 20

241642060

$1.15

56

Vent Grille

204050121

Unavailable

57

Was 204050122 Vent Hose 4"

219704358

$25.99

58

Tie Rap

293750019

$3.29

59

Hex. Screw M6 X 16

207161660

$1.59
