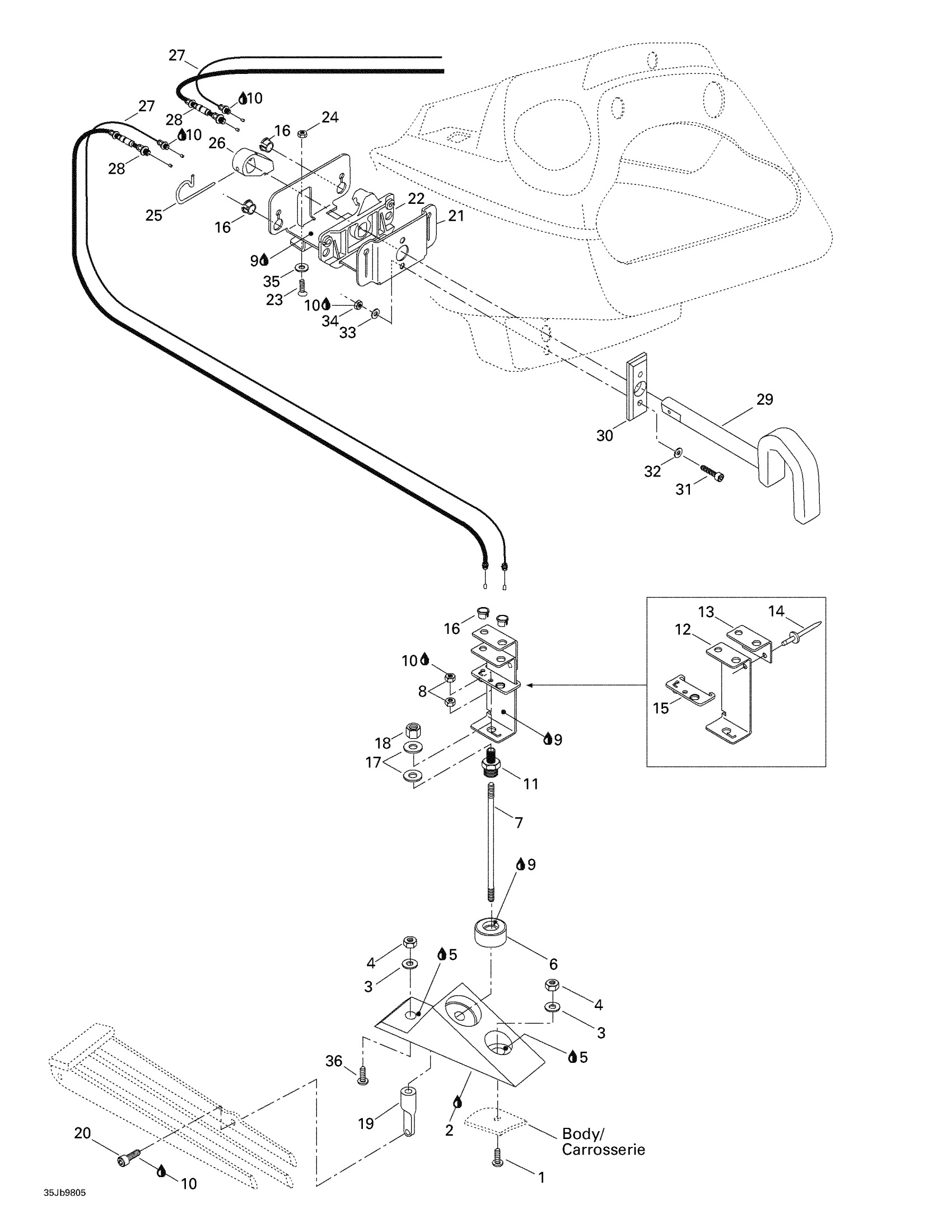

Sea-doo Speedster, 5615, 1998 Weedless System Diagram

#

Description
Price

1

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

2

Instant Gasket

219701421

$51.99

3

Stainless Flat Washer M6

234061600

$0.33

4

Hex. Elastic Stop Nut M6

232561600

$1.15

5

Silicone Sealant 51388, 300 ml

296000309

$36.99

6

Rubber Washer

204200010

Unavailable

7

Weedless Rod

204200039

Unavailable

8

Hex. Nut

212100005

$1.35

9

Synthetic Grease, 400 G

293550010

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

Insert Bushing

204200040

Unavailable

12

Insert Support

204200038

Unavailable

13

Cable Protector

204200049

Unavailable

14

Pop Rivet 3/16"

204000081

$1.49

15

Rod Guide

204200037

Unavailable

16

Grommet

204200042

Unavailable

17

Flat Washer 12 mm (Nylon)

217030000

Unavailable

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

19

Joint

204200006

Unavailable

20

Pivot Screw

211000103

Unavailable

21

Handle Support

204200030

Unavailable

22

Handle Guide

204200041

Unavailable

23

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

24

Hex. Elastic Stop Nut M6

232561600

$1.15

25

Weedless Spring

204200046

Unavailable

26

Catch Reworked

204200047

Unavailable

27

Weedless Cable Upper

204200028

Unavailable

28

Weedless Cable Lower

204200029

Unavailable

29

Handle

204200043

Unavailable

30

Guide Plate

271000057

Unavailable

31

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

32

Flat Washer 6 mm

217060600

Unavailable

33

Stainless Flat Washer M6

234061600

$0.33

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

Flat Washer M6, Stainless

234062600

$0.77

36

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00
