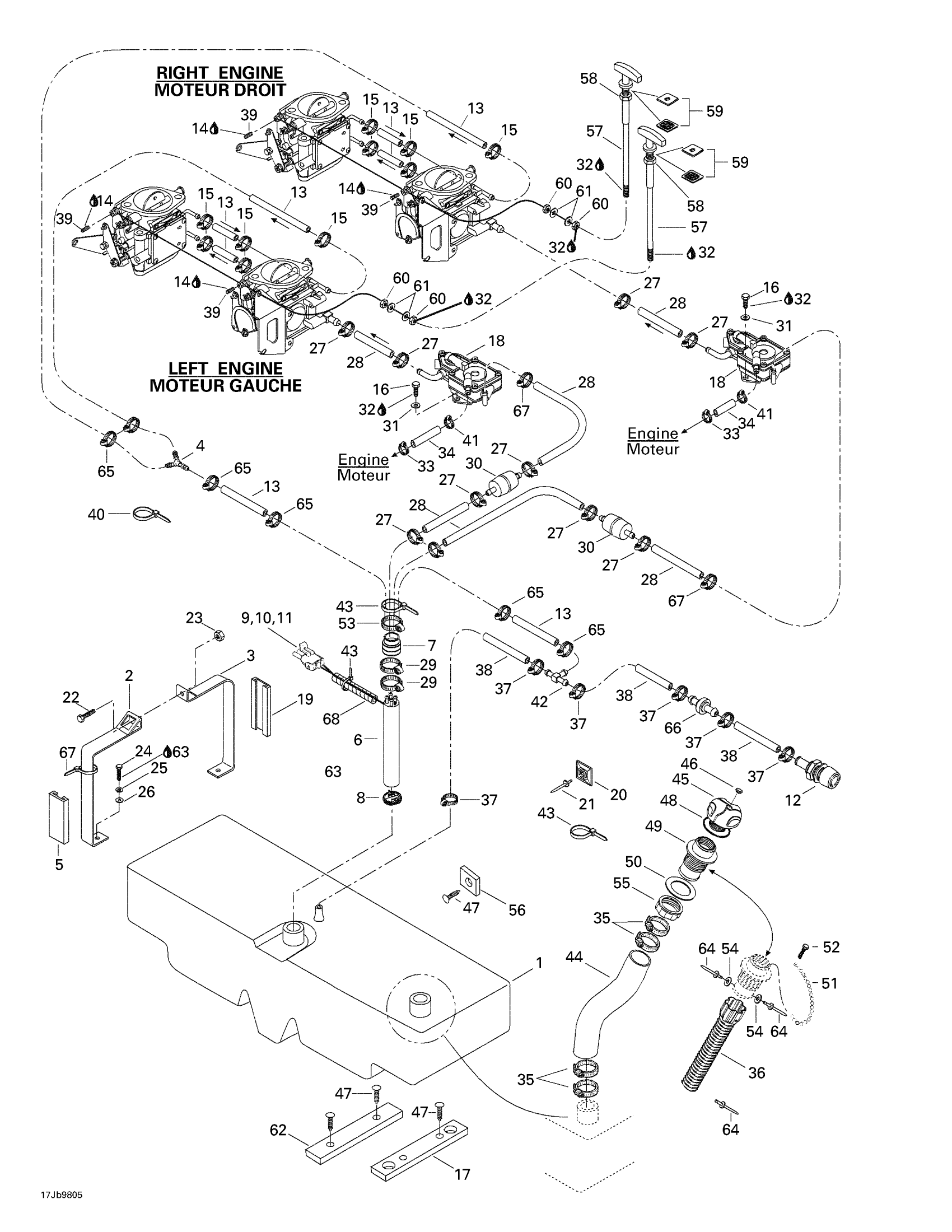

Sea-doo Speedster, 5615, 1998 Fuel System Diagram

#

Description
Price

1

Plastic Fuel Tank

204560053

Unavailable

2

Tank Bracket

204560065

Unavailable

3

Tank Bracket

204560072

Unavailable

4

Y-Fitting

293710059

$9.69

5

Protector Strip

204560075

Unavailable

6

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Male Housing, 3 Circuits

278000273

$9.59

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm

204000068

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

16

Hex. Screw M6 x 12

210000011

Unavailable

17

Rubber Pad

204060185

Unavailable

18

Fuel Pump

270500388

$84.99

19

Protector Strip

204560076

Unavailable

20

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

21

Pop Rivet 3/16"

293150008

$0.50

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

28

Hose 5/16"

204560070

Unavailable

29

Norma Clamp

293650081

$12.18

30

FUEL FILTER - Call your local BRP dealership

204560077

Unavailable

31

Stainless Flat Washer M6

234061600

$0.33

32

Loctite 243, 10 ml

293800060

$21.49

33

Tridon Gear Clamp

293650170

$1.99

34

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

35

Norma Clamp

293650081

$12.18

36

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

39

Allen Screw M4 x 6

210100014

Unavailable

40

Tie Wrap 142 mm

293750002

$1.25

41

Oetiker Clamp

293650042

$3.09

42

T-Fitting

204560038

Unavailable

43

Tie-Rap 180 mm

414115200

$0.11

44

Exterior Hose Filler Neck

204560079

Unavailable

45

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

46

Black, Snap Cap

293000034

$9.39

47

Black, Dart

293730006

$0.99

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$14.82

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.48

53

Norma Clamp

293650077

$7.41

54

Flat Washer M3, Stainless

234032600

$0.55

55

Filler Neck Nut, Fuel

211100012

$14.22

56

Rubber Pad

274000354

Unavailable

57

RH Choke Cable | Includes 57 - 61.

270000207

Unavailable

LH CHOKE CABLE - Call your local BRP dealership

270000208

Unavailable

58

Hex. Nut

211100007

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.15

61

Stainless Flat Washer M6

234061600

$0.33

62

Rubber Pad

293830055

Unavailable

63

Loctite 271, 10 ml

293800005

$26.99

64

Rivet 1/8”

293150057

Unavailable

65

Norma Clamp

293650088

Unavailable

66

Vent Line Surge Protector

204560074

Unavailable

67

Tie Wrap 368 mm

293750008

$1.04

68

Slit Conduit, Meter

204550045

Unavailable
