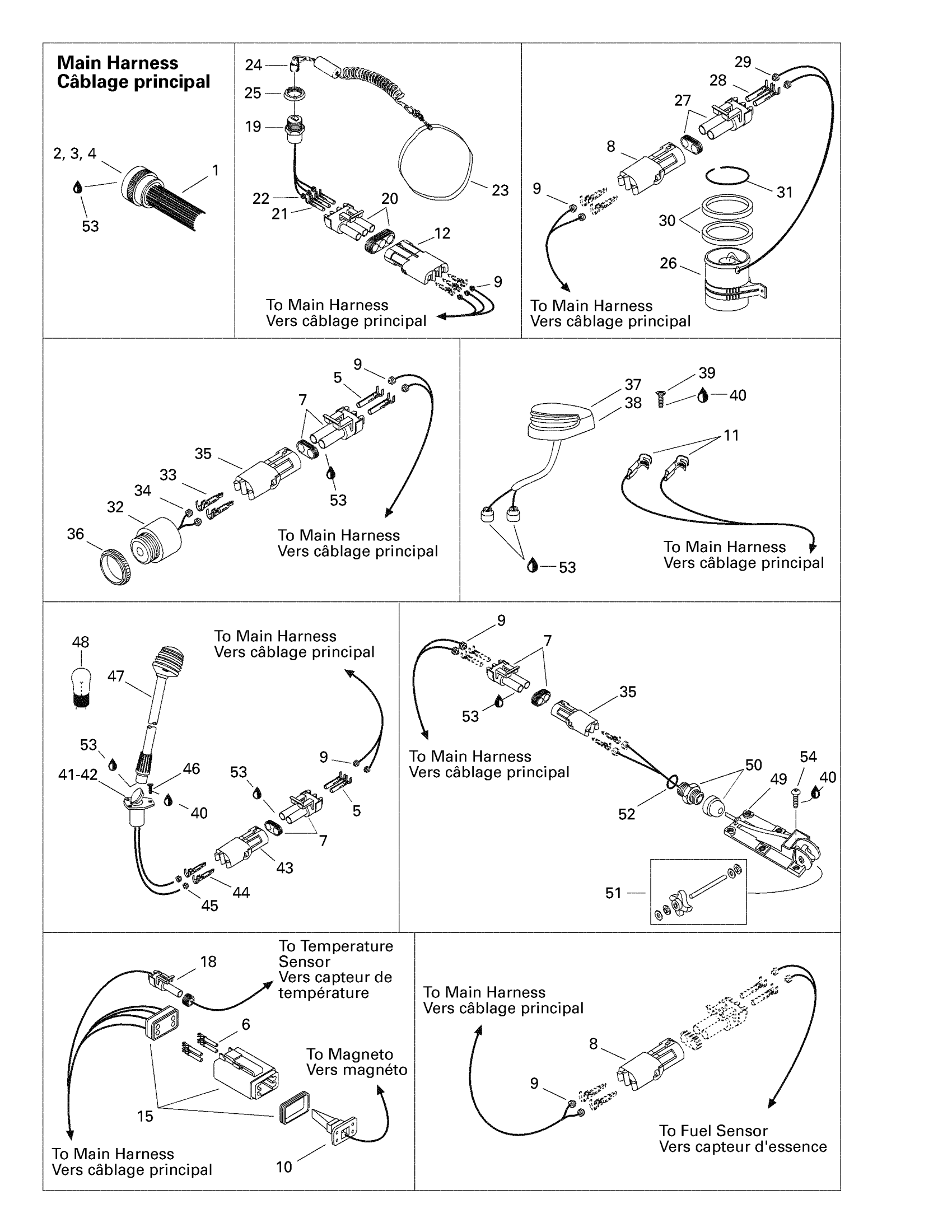

Sea-doo Speedster, 5602/5608, 1997 Electrical Accessories Diagram

#

Description
Price

1

Harness Ass'y | Includes 1 - 18.

204470057

Unavailable

2

Male Housing(Canon)

278000870

Unavailable

3

Female Terminal(Canon)

278000871

Unavailable

4

Female terminal(Canon)

278000872

Unavailable

5

Female Terminal

409007300

$0.45

6

Female Terminal

278000632

$2.09

7

Male Connector, 2 Circuits

278000220

$15.49

8

Female Housing, 2 Circuits

278000217

$9.59

9

Wire Seal

278000218

$4.39

10

Male Lock, 4 Circuits | CE

278000738

$3.09

11

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

12

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

13

Male Housing (24 Ways)(AMP)

278001194

Unavailable

14

FEMALE CONNECTOR, 6 CIRCUITS - Call your local BRP dealership

278000156

Unavailable

15

Male Connector, 4 Circuits | CE

278000739

$19.49

16

Female Housing, 1 Circuit

278000161

$9.59

17

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

18

Male Housing, 1 Circuit

278001012

$16.86

19

Safety Switch This part replaces 278002325.

278002773

$114.99

20

Male Housing, 3 Circuits

278000273

$9.59

21

Female Terminal

278000223

$3.19

22

Wire Seal

278000218

$4.39

23

Safety Strap

204470025

Unavailable

24

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

25

Safety Nut (DESS Switch)

278002963

$3.28

26

Fan Ass'y | Includes 44 to 47

204470108

$144.99

27

Male Connector, 2 Circuits

278000220

$15.49

28

Female Terminal

278000223

$3.19

29

Wire Seal

278000218

$4.39

30

Seal Tray 1000Mm Long

219704368

$13.99

31

BROACH - Call your local BRP dealership

204000133

Unavailable

32

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

33

Male Terminal | XT Models

278000222

$3.19

34

Wire Seal

278000218

$4.39

35

Female Housing, 2 Circuits

278000217

$9.59

36

Buzzer Nut

278000707

Unavailable

37

Front Lamp

204470071

Unavailable

38

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

39

Phillips Screw M4 X 16

208641660

$0.90

40

Loctite 243, 10 ml

293800060

$21.49

41

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

42

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

43

Female Housing, 2 Circuits

278000217

$9.59

44

Male Terminal | XT Models

278000222

$3.19

45

Wire Seal

278000218

$4.39

46

Screw M4 x 30

211000136

Unavailable

47

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

48

Bulb

204470053

Unavailable

49

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

50

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

51

Paddle Wheel Kit

295500108

Unavailable

52

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

53

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

54

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable
