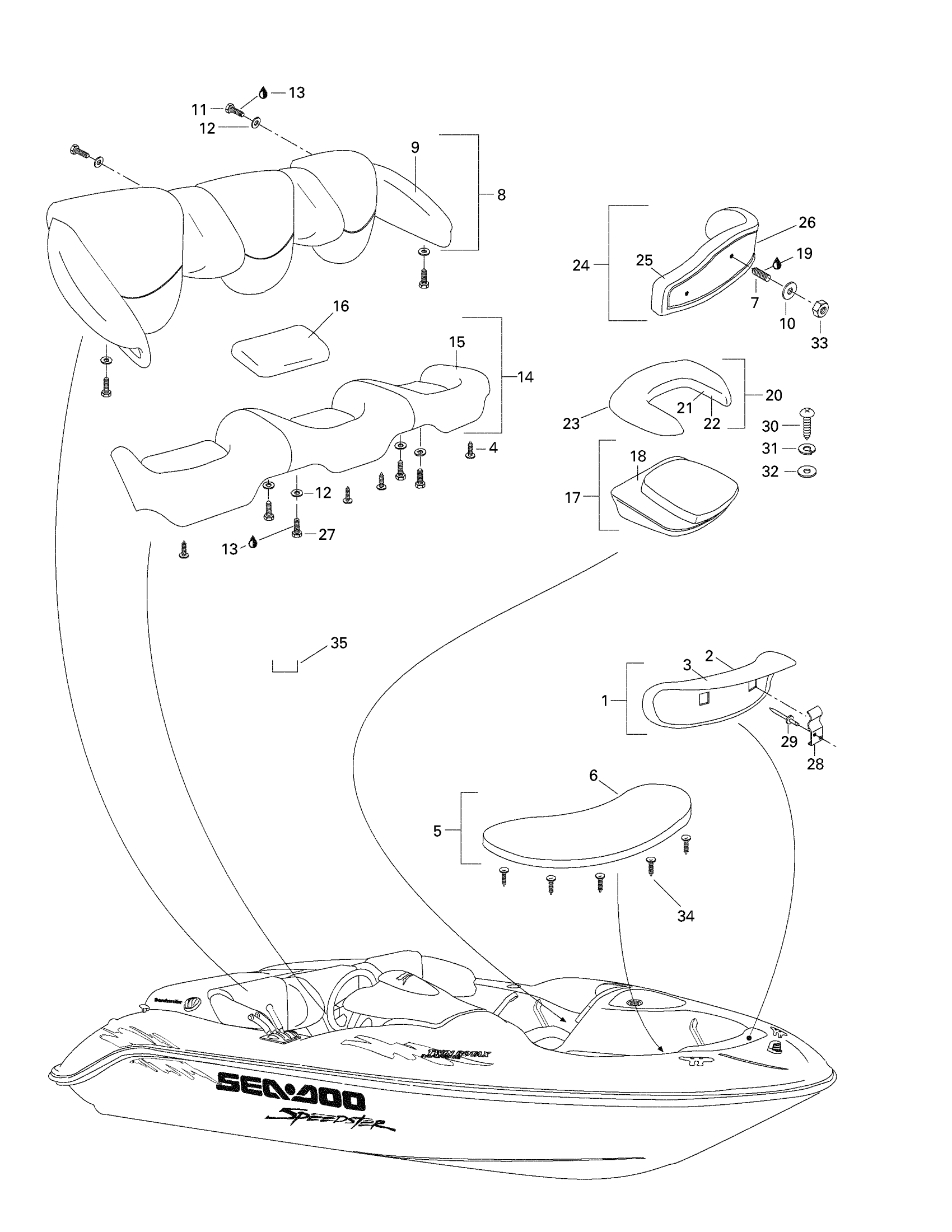

Sea-doo Speedster, 5602/5608, 1997 Seats Diagram

#

Description
Price

1

Front Backrest Ass'y | Includes 1 - 3.

204610097

Unavailable

2

Front Backrest Cover (Yellow)

204610174

Unavailable

3

Front Backrest Foam

269000331

Unavailable

4

Black Dart

293730014

$0.99

5

Front Seat Ass'y | Includes 5 - 6.

204610085

Unavailable

6

Front Seat Cover (Grey)

204610086

Unavailable

7

Set Screw M5 x 30

216553060

Unavailable

8

Rear Backrest Ass'y | Includes 8 - 9.

204610087

Unavailable

9

RR Backrest Cover (Armrest)

204610205

Unavailable

RR Central Backrest Cover (Yellow)

204610204

Unavailable

RR Backrest Cover (Printed)

204610088

Unavailable

10

Flat Washer 5 mm, Stainless

234052600

$0.77

11

Hex. Screw M6 X 25

207162560

$1.47

12

Flat Washer M6, Stainless

234062600

$0.77

13

Loctite 243, 10 ml

293800060

$21.49

14

Rear Seat Ass'y | Includes 14 - 16.

204610089

Unavailable

15

RR Seat Cover (Grey)

204610203

Unavailable

16

Rear Seat Pillow Cover

204610090

Unavailable

Rear Seat Pillow Foam

269000232

Unavailable

17

Keeper Seat | Includes 17 - 18.

204610112

Unavailable

18

Seat Foam

269000333

Unavailable

19

Loctite 271, 10 ml

293800005

$26.99

20

Keeper Seat Ring | Includes 20 - 22.

204610114

Unavailable

21

Keeper Seat Ring Cover

204610115

Unavailable

22

Keeper Seat Ring Foam

269000336

Unavailable

23

Keeper Seat Ring Base

269000334

Unavailable

24

Keeper Seat Backrest | Includes 24 - 26.

204610116

Unavailable

25

Keeper Seat Backrest Foam

269000339

Unavailable

26

Base Keeper Seat Backrest

269000337

Unavailable

27

Hex. Screw M6 X 30

207063060

$1.89

28

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

29

Pop Rivet 3/16"

293150043

$2.09

30

Self Tapping Screw

216663860

Unavailable

31

Lock Washer Helical M6

234161601

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Elastic Nut M5 | X

232551600

$1.15

34

Black, Dart

293730006

$0.99

35

Staple

293730005

Unavailable

36

Keeper Seat Backrest cover

204610117

Unavailable
