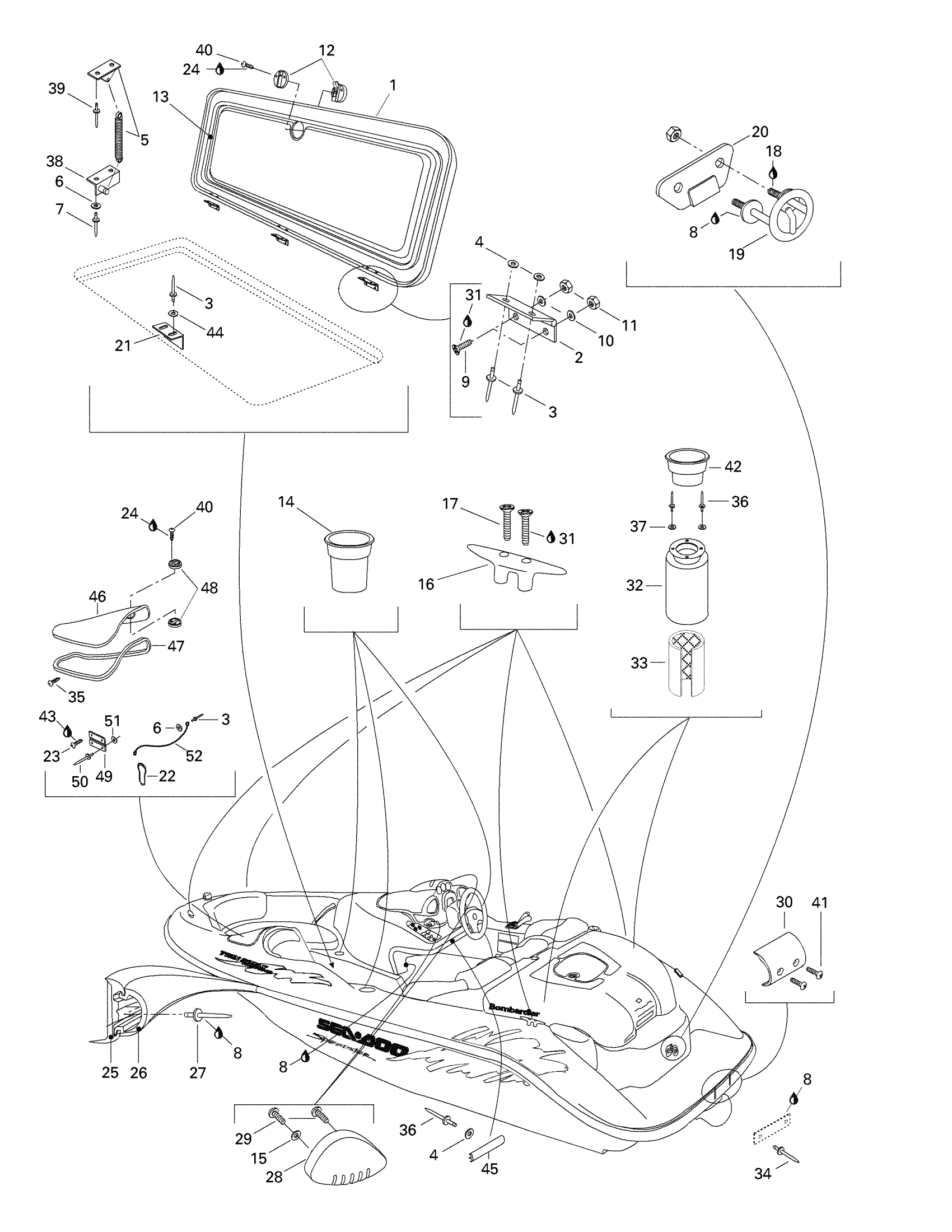

Sea-doo Speedster, 5602/5608, 1997 Central Cover And Accessories Diagram

#

Description
Price

1

Central Cover

291000737

Unavailable

2

HINGE - Call your local BRP dealership

204072601

Unavailable

3

Pop Rivet 3/16"

293150039

$1.49

4

Flat Washer M5, Stainless

234051600

$0.77

5

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.77

7

Pop Rivet 3/16"

293150039

$1.49

8

Silicone Sealant 51388, 300 ml

296000309

$36.99

9

SCREW-CTSK.FL.HD.PH.DIN.965A-A2 - Call your local BRP dealership

216142060

Unavailable

10

Flat Washer 4 mm

234040600

$0.55

11

Elastic Stop Nut M4

232541600

$1.15

12

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

13

Seal Tray 1000Mm Long

219704368

$13.99

14

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

15

Flat Washer 4 mm, Stainless

234042600

$1.15

16

CLEAT - Call your local BRP dealership

204070100

Unavailable

17

Screw M6 x 55

211000135

Unavailable

18

Loctite 271, 10 ml

293800005

$26.99

19

Ski Tow

291000610

Unavailable

20

Ski Tow Plate, Black

204070054

Unavailable

21

KEEPER - Call your local BRP dealership

204070060

Unavailable

22

CABLE CLIP - Call your local BRP dealership

293750000

Unavailable

23

Socket Head Screw M4 X 16

205441660

$1.47

24

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

25

Bumper extrusion (Black)

204050029

Unavailable

26

Bumper Moulding (Black)

204050030

Unavailable

27

Pop Rivet 3/16"

293150013

$1.37

28

Ventilation Grill, Yellow

291000829

Unavailable

29

Flange Screw K40 X 20

241642060

$1.15

30

BUMPER COVER, BLACK - Call your local BRP dealership

204050031

Unavailable

31

Loctite 243, 10 ml

293800060

$21.49

32

Rear Hose Vent

204050004

Unavailable

33

Noise Deflector

291001133

Unavailable

34

Pop Rivet 1/8''

293150033

Unavailable

35

Dart

293730013

Unavailable

36

Pop Rivet 3/16"

293150014

$1.09

37

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

38

Spring Bracket

291000719

Unavailable

39

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

40

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

41

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

42

Cup Holder

291000914

Unavailable

43

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

44

Flat Washer M5, Stainless

234051600

$0.77

45

TRIM, WHITE - Call your local BRP dealership

204050042

Unavailable

46

Storage Door

291000753

Unavailable

47

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

48

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

49

Hinge

269700031

$9.99

50

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

51

Flat Washer M3, Stainless

234032600

$0.55

52

RETAINER CABLE - Call your local BRP dealership

204000117

Unavailable
