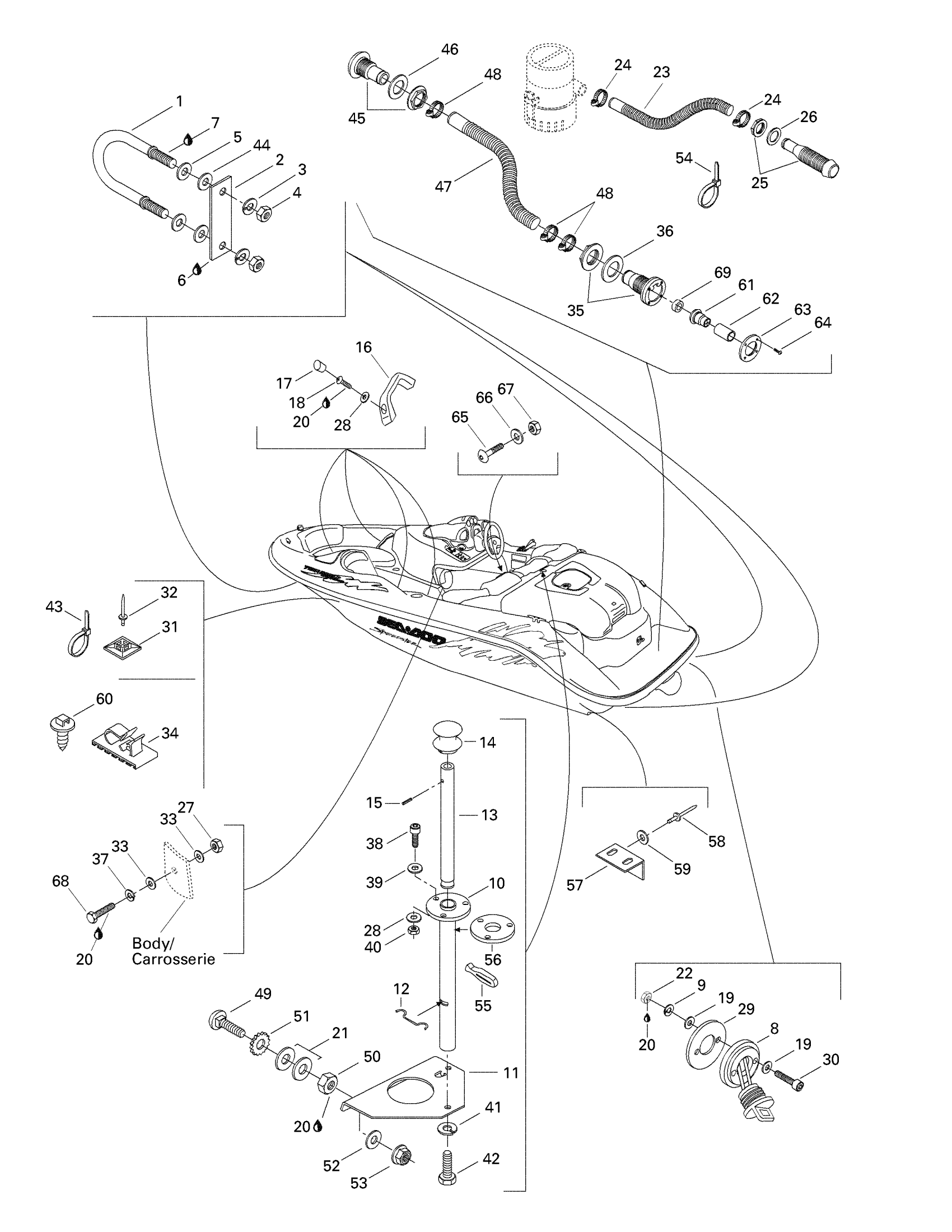

Sea-doo Speedster, 5602/5608, 1997 Body And Accessories Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

3

Lock Washer 8 mm, Stainless

234181601

$0.55

4

Hex. Nut M8

232081600

$1.47

5

Flat Washer M8.5 x 18

293050001

$3.07

6

Silicone Sealant 51388, 300 ml

296000309

$36.99

7

Loctite 271, 10 ml

293800005

$26.99

8

Drain Plug

292000187

$14.49

9

Lock Washer 4 mm

234141601

$1.15

10

Fixation Tube

291000745

Unavailable

11

Fixation Plate

291000749

Unavailable

12

Spring

291000750

Unavailable

13

Ski Shaft

291000748

Unavailable

14

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

15

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

16

Grip Handle | Includes 6 to 7

204070045

Unavailable

17

Snap Cap

204070056

Unavailable

18

SCREW-PAN HD.PH.DIN.7985A-A2 - Call your local BRP dealership

211000009

Unavailable

19

Flat Washer 4 mm

234040600

$0.55

20

Loctite 243, 10 ml

293800060

$21.49

21

Stainless, Flat Washer 8 mm

234081600

$0.55

22

Nut M4

211100025

Unavailable

23

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

24

Tridon Clamp

293650016

$10.99

25

Fitting

293710162

$13.49

26

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

27

Hex. Nut M5

232051600

$1.15

28

Stainless Flat Washer M6

234061600

$0.33

29

GASKET - Call your local BRP dealership

293250030

Unavailable

30

Socket Head Screw M4 X 25

205042560

$2.22

31

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

32

Avdel Rivet 3/16"

293150037

$0.56

33

Flat Washer M5, Stainless

234051600

$0.77

34

TIE CLAMP - Call your local BRP dealership

293750005

Unavailable

35

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

36

GASKET - Call your local BRP dealership

292800106

Unavailable

37

Helical Lock Washer M5

234151601

$1.15

38

Socket Head Screw M6 X 30

205063060

$2.75

39

Flat Washer M6, Stainless

234062600

$0.77

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

Lock Washer 8 mm, Stainless

234181601

$0.55

42

Hex. Screw M8 X 18

207181860

$1.48

43

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 180 mm

414115200

$0.11

44

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

45

FITTING - Call your local BRP dealership

293710060

Unavailable

46

GASKET - Call your local BRP dealership

292800106

Unavailable

47

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

48

Tridon Gear Clamp

293650045

$5.69

49

Elevator Bolt

204000130

Unavailable

50

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

51

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

52

Flat Washer M6, Stainless

234062600

$0.77

53

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

54

Tie-Rap 180 mm

414115200

$0.11

55

Windshield Latch

570023800

$4.49

56

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

57

KEEPER - Call your local BRP dealership

204070060

Unavailable

58

Pop Rivet 3/16"

293150039

$1.49

59

Flat Washer M5, Stainless

234051600

$0.77

60

Mount Dart

293730040

$1.04

61

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

62

Scupper Support

204060072

Unavailable

63

Scupper Clamp

204060074

Unavailable

64

Screw K40 X 10

241140060

$1.48

65

Screw M5 x 25

216152560

Unavailable

66

Flat Washer 5 mm, Stainless

234052600

$0.77

67

Hex. Elastic Nut M5 | X

232551600

$1.15

68

Screw M5 x 35

215053560

Unavailable

69

Ring

204060082

Unavailable
