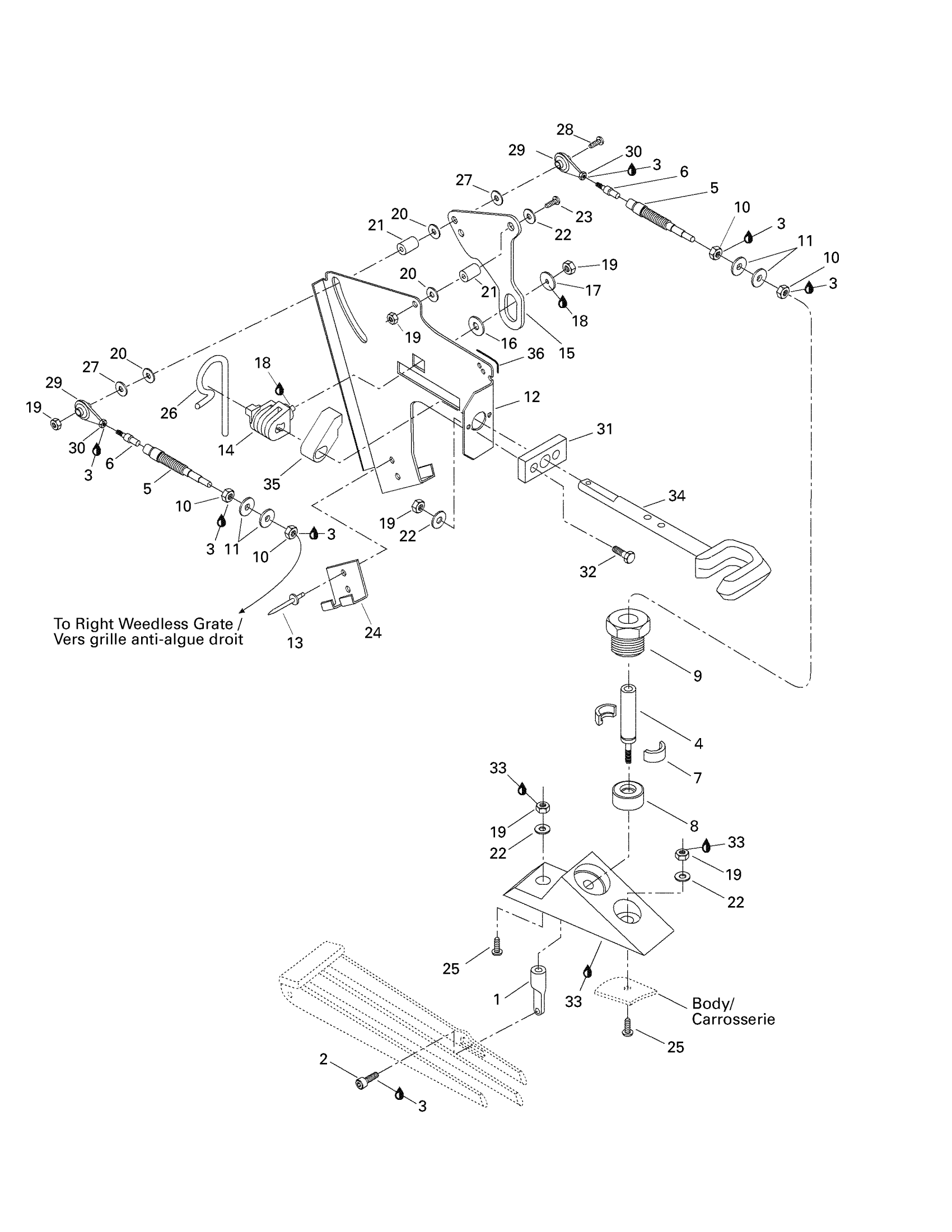

Sea-doo Speedster, 5602/5608, 1997 Weedless System Diagram

#

Description
Price

1

Joint

204200006

Unavailable

2

Pivot Screw

211000103

Unavailable

3

Loctite 243, 10 ml

293800060

$21.49

4

Weedless Cable L.H

204200002

Unavailable

Weedless Cable R.H

204200001

Unavailable

5

Boot, Large

277000473

Unavailable

6

Boot, Small

277000466

Unavailable

7

HALF RING - Call your local BRP dealership

204200009

Unavailable

8

Rubber Washer

204200010

Unavailable

9

Steering Cable Lock This part replaces 277000784.

277001729

$13.22

10

Hex. Jam Nut

212100006

Unavailable

11

Flat Washer

213200017

Unavailable

12

Weedless Support

204200014

Unavailable

13

Pop Rivet 3/16"

204000081

$1.49

14

Sliding Block

271000269

Unavailable

15

Triangular Lever

204200018

Unavailable

16

Flat Washer 20 mm

211200012

Unavailable

17

Washer

271000061

Unavailable

18

Synthetic Grease, 400 G

293550010

Unavailable

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

Flat Washer 10 mm

217001000

Unavailable

21

Bushing

271000293

Unavailable

22

Stainless Flat Washer M6

234061600

$0.33

23

Hex. Screw M6 X 25

207162560

$1.47

24

Fork

204200011

Unavailable

25

Phillips Screw M6 X 25

208562560

$2.32

26

Spring

271000270

Unavailable

27

Flat Washer M6, Stainless

234062600

$0.77

28

Hex. Screw M6 x 55

215665560

Unavailable

29

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

30

Hex. Nut

212100005

$1.35

31

Guide Plate

271000057

Unavailable

32

SCREW-SOCKET BN.HD.M6 X 20 - Call your local BRP dealership

211000018

Unavailable

33

Instant Gasket

219701421

$51.99

34

Weedless Handle

204200015

Unavailable

35

Catch

271000268

Unavailable

36

Was 271000110 Protection Trim

219704353

$15.99

37

Weedless Insert

204200020

Unavailable
