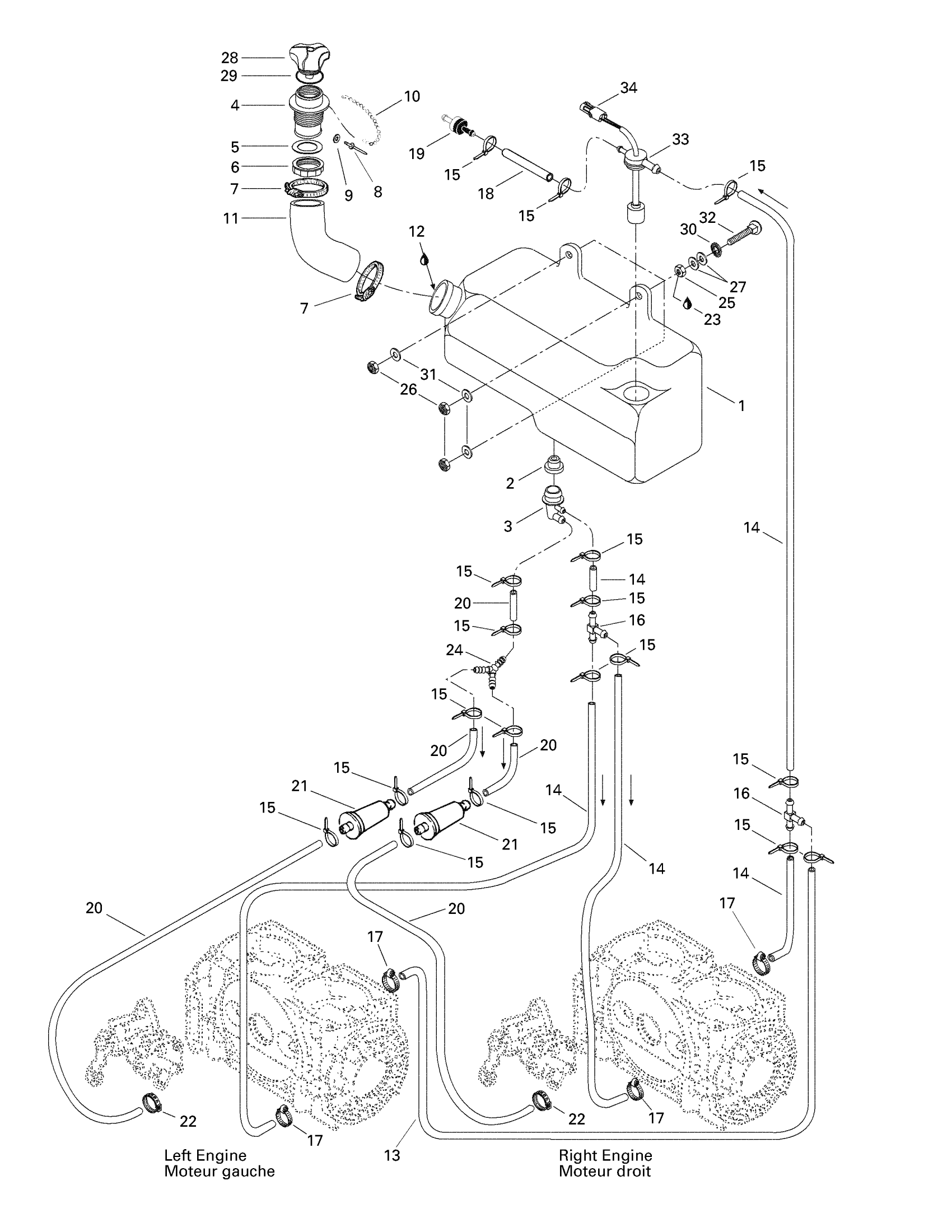

Sea-doo Speedster, 5602/5608, 1997 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

204550014

Unavailable

2

Grommet

293720008

$14.75

3

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

4

Filler Neck

275000212

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

Tridon Clamp

293650035

$7.29

8

Pop RIvet 1/8 X ,375

293150285

$0.33

9

Flat Washer M3, Stainless

234032600

$0.55

10

Oil Cap Chain

275500015

Unavailable

11

Formed Hose

275000128

Unavailable

12

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

13

Was 275500008 Hose 12 mm

219704356

$20.49

14

Was 275500008 Hose 12 mm

219704356

$20.49

15

Tie Wrap 94 mm | 4X4

293750001

$1.03

16

T-FITTING - Call your local BRP dealership

293710053

Unavailable

17

Tridon Gear Clamp

293650170

$1.99

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

19

Check Valve This part replaces 275500087.

275501246

$10.99

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$3.09

23

Loctite 243, 10 ml

293800060

$21.49

24

Y-Fitting

204550001

Unavailable

25

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

26

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.55

28

Oil Cap

275000186

Unavailable

29

O-RING - Call your local BRP dealership

293250025

Unavailable

30

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.77

32

Elevator Bolt

204000130

Unavailable

33

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

34

Female Housing, 2 Circuits

278000217

$9.59

35

Male Terminal | XT Models

278000222

$3.19

36

Wire Seal

278000218

$4.39
