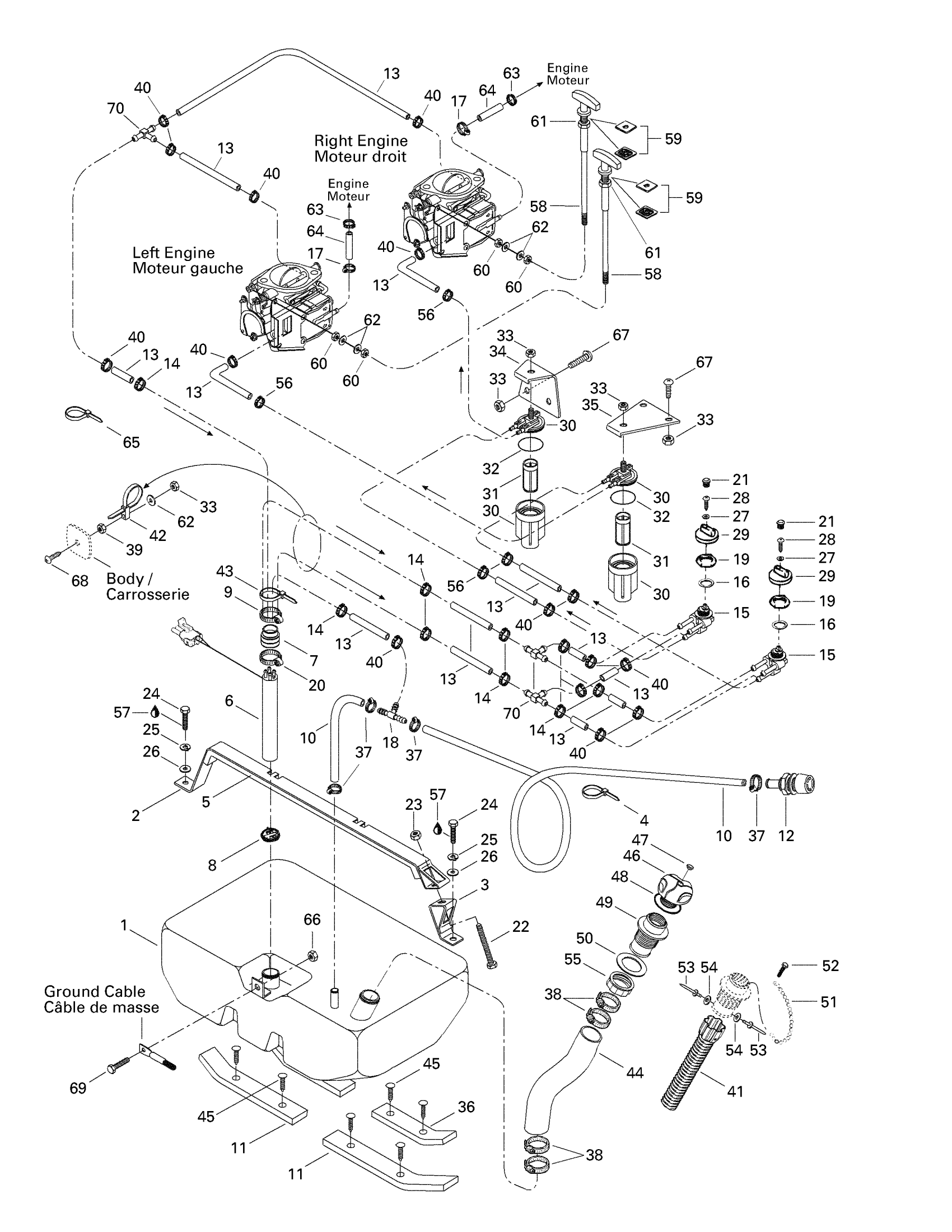

Sea-doo Speedster, 5602/5608, 1997 Fuel System Diagram

#

Description
Price

1

Fuel Tank (Plastic), Model 5602

204560024

Unavailable

Aluminum Fuel Tank

204560017

Unavailable

2

Tank Bracket

275500199

Unavailable

3

Strap Bracket

275500202

Unavailable

4

Tie Wrap 368 mm

293750008

$1.04

5

Protector Pad

204560029

Unavailable

6

Baffle Pick-up Ass'y | Includes 6 - 8.

275500237

Unavailable

7

Tube Adapter

275500111

Unavailable

8

Fuel Filter

275500249

Unavailable

9

Tridon Clamp

293650035

$7.29

10

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

11

Rubber Pad 330 mm

293830020

Unavailable

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm

204000068

Unavailable

14

Clic Clamp

293650059

Unavailable

15

Fuel Valve

275500098

$43.99

16

GASKET - Call your local BRP dealership

293250004

Unavailable

17

Tridon Gear Clamp

293650170

$1.99

18

T-Fitting

204560038

Unavailable

19

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

20

Tridon Clamp

293650023

$13.49

21

Black, Cap

275500241

$3.49

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Flat Washer 4 mm

234040600

$0.55

28

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

29

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

30

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

31

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

32

O-Ring

275500090

$8.79

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Fixation Plate

275500207

Unavailable

35

Fuel Filter Support

204560007

Unavailable

36

Rubber Pad

293830021

Unavailable

37

TRIDON GEAR CLAMP - Call your local BRP dealership

293650005

Unavailable

38

Tridon Clamp

293650023

$13.49

39

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

40

Caillau Clic Clamp

293650060

Unavailable

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Tie-Rap

293750017

Unavailable

43

Tie-Rap 180 mm

414115200

$0.11

44

Filler Neck Hose

275500259

Unavailable

45

Black, Dart

293730006

$0.99

46

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

47

Black, Snap Cap

293000034

$9.39

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$14.82

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.48

53

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.55

55

Filler Neck Nut, Fuel

211100012

$14.22

56

Clic Clamp

293650057

Unavailable

57

Loctite 271, 10 ml

293800005

$26.99

58

Choke Cable Ass'y L.H | Includes 58 - 62.

204250020

Unavailable

RH Choke Cable Ass'y | Includes 58 - 62.

204250019

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.15

61

NUT-HEXAGONAL HI-LEX - Call your local BRP dealership

211100030

Unavailable

62

Stainless Flat Washer M6

234061600

$0.33

63

Oetiker Clamp

293650042

$3.09

64

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

65

Tie Wrap 142 mm

293750002

$1.25

66

Hex. Elastic Stop Nut M6

232561600

$1.15

67

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

Screw M6 x 16

211000003

Unavailable

68

Phillips Screw M6 X 25

208562560

$2.32

69

Hex. Screw M6 x 12

210000011

Unavailable

70

T Fitting

293710040

Unavailable
