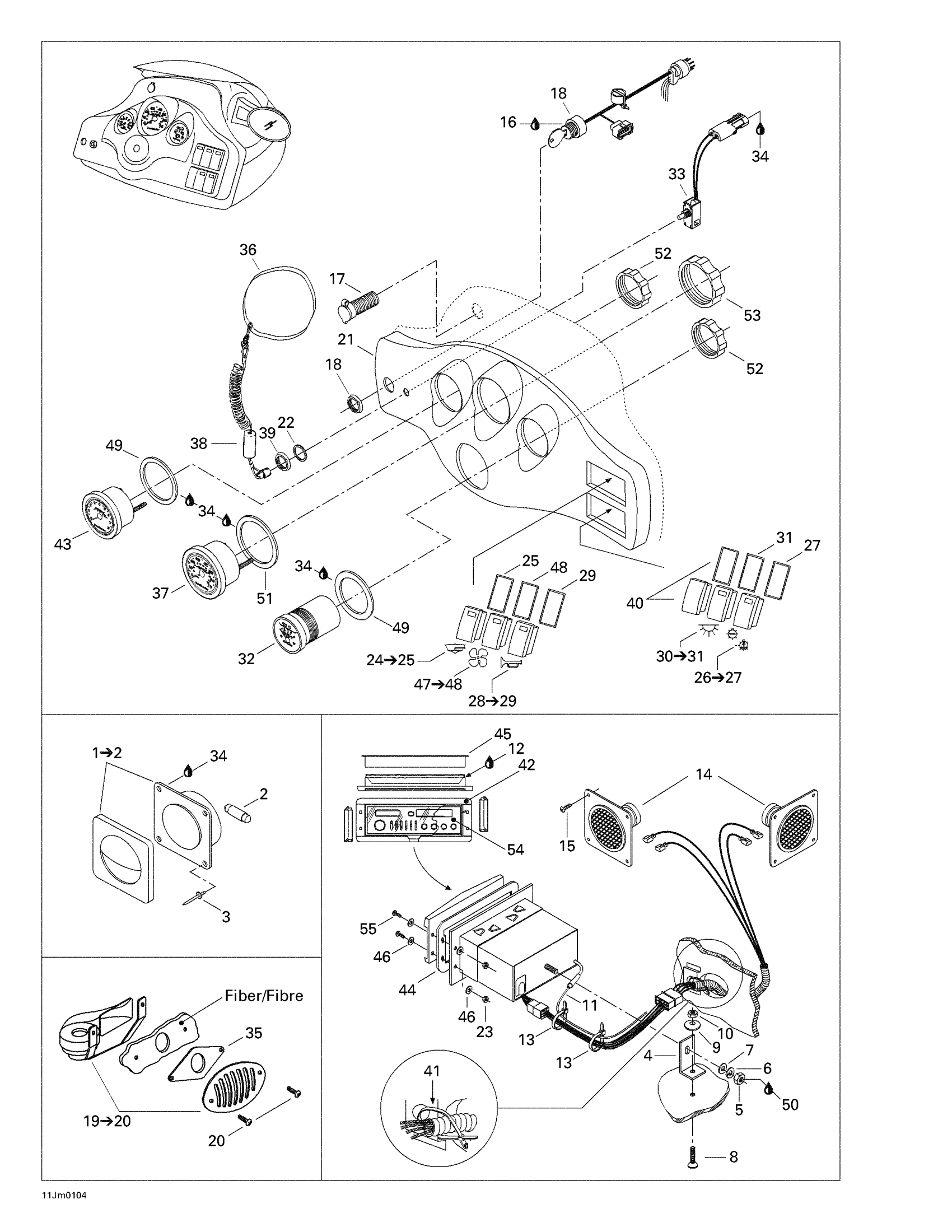

Sea-doo Speedster, 5443, 2001 10- Electrical Accessories 1 Diagram
#
1
Courtesy Light Ass'y | Includes 29 to 30
204470026
$47.49
2
BULB - Call your local BRP dealership
204470081
Unavailable
3
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
4
Radio Support
204470385
Unavailable
5
Hex. Nut M5
232051600
$1.15
6
Helical Lock Washer M5
234151601
$1.15
7
Flat Washer 5 mm, Stainless
234052600
$0.77
8
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
9
Flat Washer M6, Stainless
234062600
$0.77
10
Hex. Elastic Stop Nut M6
232561600
$1.15
11
Antenna
204470380
Unavailable
12
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
13
Tie Wrap 94 mm | 4X4
293750001
$1.03
14
Speaker
204470378
Unavailable
15
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
16
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
17
DC Outlet
710001248
$37.99
18
Instrumentation Harness | CHALLENGER 1800 (5774).
204470630
Unavailable
19
HORN - Call your local BRP dealership
204470801
Unavailable
20
SCREW-RD.HD.PH. - Call your local BRP dealership
211000100
Unavailable
21
Fascia
204390209
Unavailable
22
FLAT WASHER - Call your local BRP dealership
204100027
Unavailable
23
Elastic Stop Nut M4
232541600
$1.15
24
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
25
Gasket
204470132
Unavailable
26
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
27
Gasket
204470132
Unavailable
28
HORN SWITCH ASS'Y - Call your local BRP dealership
204470101
$49.99
29
Gasket
204470132
Unavailable
30
COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470102
Unavailable
31
Gasket
204470132
Unavailable
32
Oil/Fuel Gauge
204470391
Unavailable
33
Safety Switch | Includes 17 - 20.
204470463
Unavailable
34
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
35
Horn Gasket
293250108
Unavailable
36
Safety Strap
204470025
Unavailable
37
Speedometer Gauge
204470374
Unavailable
38
Safety Lanyard
278001431
$47.49
39
Safety Switch Nut
278000099
Unavailable
40
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
41
Tie Wrap 142 mm
293750002
$1.25
42
Radio Cover
204470266
Unavailable
43
Tachometer Gauge
204470466
Unavailable
44
RADIO COVER GASKET - Call your local BRP dealership
204470257
Unavailable
45
Radio Splashguard
204470270
Unavailable
46
Flat Washer 4 mm
234040600
$0.55
47
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
48
Gasket
204470132
Unavailable
49
Gasket
204470308
Unavailable
50
Loctite 243, 10 ml
293800060
$21.49
51
Gasket
204470309
Unavailable
52
Gauge Nut
204470146
Unavailable
53
Gauge Nut
204470171
Unavailable
54
Tape-Radio | CHALLENGER 1800 (5445).
204470377
Unavailable
55
PHILLIPS SCREW M4 X 25 - Call your local BRP dealership
208642560
Unavailable
