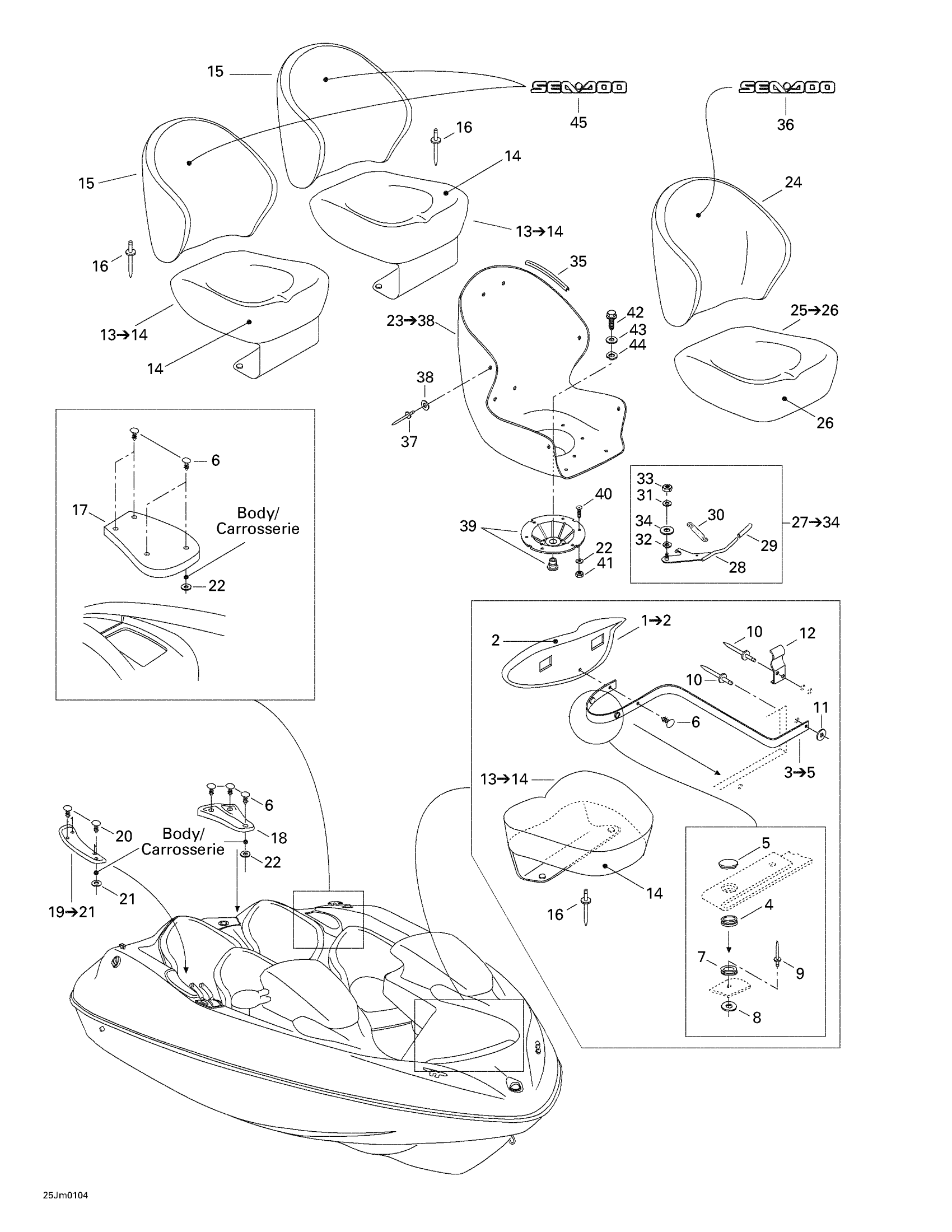

Sea-doo Speedster, 5443, 2001 09- Seats Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204611303
Unavailable
2
Backrest Cover
204611335
Unavailable
3
Retaining Strap Ass'y | Includes 2 to 4
204611446
Unavailable
4
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
5
SNAP COVER - Call your local BRP dealership
204000085
Unavailable
6
Black, Dart
293730006
$0.99
7
BOTTOM SNAP - Call your local BRP dealership
204000084
Unavailable
8
Flat Washer M3, Stainless
234032600
$0.55
9
RIVET_POP 1/8 X ,625 - Call your local BRP dealership
293150023
Unavailable
10
Pop Rivet 3/16"
293150043
$2.09
11
Flat Washer 5 mm, Stainless
234052600
$0.77
12
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
13
Seat Cushion (Metalic Quartz)
204611280
Unavailable
14
Cover Cushion
204611288
Unavailable
15
Backrest Cushion (Metalic Quartz)
295501058
Unavailable
16
Pop Rivet 3/16"
293150013
$1.37
17
RH Arm Rest Ass'y | .
204610674
Unavailable
LH Arm Rest Ass'y | .
204610676
Unavailable
18
Arm Rest | .
204610681
Unavailable
19
Arm Rest Ass'y | Includes 19 - 21. .
204611389
Unavailable
20
Black, Dart
293730006
$0.99
21
Flat Washer M6, Stainless
234062600
$0.77
22
Flat Washer M6, Stainless
234062600
$0.77
23
Driver Seat Ass'y | Includes 23 - 38.
204611304
Unavailable
24
Backrest Cushion (Metallic Quartz)
204611532
Unavailable
25
Seat Cushion (Metalic Quartz)
204611280
Unavailable
26
Cover Cushion
204611288
Unavailable
27
Lever Arm Ass’y
204610523
Unavailable
28
Lever Arm
204610524
Unavailable
29
Handle
204610348
Unavailable
30
SPRING - Call your local BRP dealership
204610349
Unavailable
31
Stainless Flat Washer M6
234061600
$0.33
32
Washer
211200059
Unavailable
33
Hex. Elastic Stop Nut M6
232561600
$1.15
34
Washer (Nylon)
204610440
Unavailable
35
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
36
Sea-Doo Logo
204900783
Unavailable
37
Pop Rivet 1/8
293150085
Unavailable
38
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
39
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
40
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
41
Hex. Elastic Stop Nut M6
232561600
$1.15
42
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
43
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
44
WASHER - Call your local BRP dealership
293200056
Unavailable
45
Sea-Doo Logo
204900783
Unavailable
