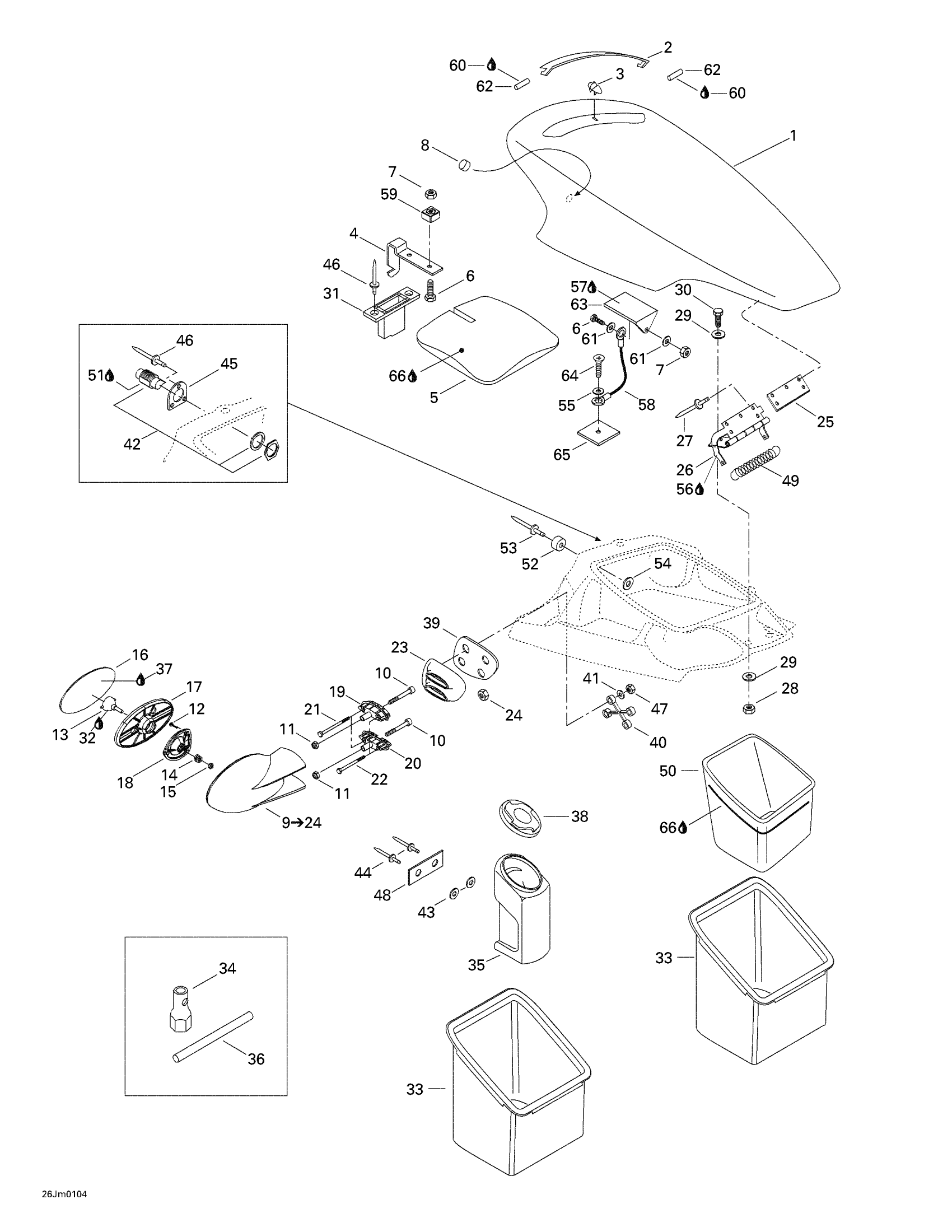

Sea-doo Speedster, 5443, 2001 09- Front Storage Compartment Diagram
#
1
Windshield This part replaces 204620079.
291003861
$380.99
2
DEFLECTOR - Call your local BRP dealership
204073803
$63.99
3
REAR STOPPER - Call your local BRP dealership
204620106
Unavailable
4
LATCH - Call your local BRP dealership
204620070
Unavailable
5
FOAM, WINDSCREEN - Call your local BRP dealership
204620080
Unavailable
6
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
7
Hex. Elastic Nut M5 | X
232551600
$1.15
8
RUBBER STOPPER - Call your local BRP dealership
204620295
Unavailable
9
RH Mirror Ass'y | Includes 37 to 54
204070995
Unavailable
10
Socket Head Screw M8 X 75
205087560
Unavailable
11
Hex. Elastic Nut M8
232581600
$1.48
12
Hex. Flange Screw K40 X 16
241141660
$1.48
13
MIRROR BALL JOINT - Call your local BRP dealership
269500079
Unavailable
14
Mirror Spring
269500453
$10.49
15
Hex. Elastic Stop Nut M6
232561600
$1.15
16
MIRROR - Call your local BRP dealership
269500454
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Hex. Screw M6 X 100
230060060
$7.41
22
HEX. SCREW M6 X 90 - Call your local BRP dealership
207069060
Unavailable
23
Adaptor, Black
204070997
Unavailable
24
Hex. Nut M6
232061600
$1.15
25
RETAINING PLATE - Call your local BRP dealership
204620087
Unavailable
26
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
27
Pop Rivet 3/16"
293150039
$1.49
28
Hex. Elastic Nut M5 | X
232551600
$1.15
29
Flat Washer 5 mm, Stainless
234052600
$0.77
30
Hex. Screw M5 X 20
207152060
$1.47
31
LATCH GUIDE - Call your local BRP dealership
204072064
Unavailable
32
Synthetic Grease, 400 G
293550010
Unavailable
33
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
34
Socket Wrench
204630050
Unavailable
35
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
36
Steel Bar
204630051
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
$36.99
38
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
39
RH Gasket
293250035
Unavailable
40
RH Reinforcement Plate
291000679
Unavailable
41
Stainless Flat Washer M6
234061600
$0.33
42
LATCH KIT - Call your local BRP dealership
204620063
Unavailable
43
Flat Washer M3, Stainless
234032600
$0.55
44
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
45
LATCH PLATE - Call your local BRP dealership
204070304
Unavailable
46
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
47
Hex. Nut M6
232061600
$1.15
48
GASKET - Call your local BRP dealership
293250037
Unavailable
49
HINGE SPRING - Call your local BRP dealership
204620018
Unavailable
50
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
51
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
52
Rubber Stopper
293830043
Unavailable
53
Pop Rivet 3/16"
293150014
$1.09
54
Flat Washer M5, Stainless
234051600
$0.77
55
Flat Washer M6, Stainless
234062600
$0.77
56
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
57
Not Available As Spare Part - Friction Washer
Unavailable
58
RETAINER CABLE - Call your local BRP dealership
204620194
Unavailable
59
NUT HOUSING - Call your local BRP dealership
204073798
Unavailable
60
Glue Tube, Loctite 454, 20 G
413708300
$60.99
61
Flat Washer 5 mm, Stainless
234052600
$0.77
62
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership
204620126
Unavailable
63
CABLE ATTACHEMENT - Call your local BRP dealership
204620127
Unavailable
64
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
65
Not Available As Spare Part - Friction Washer
Unavailable
66
Not Available As Spare Part - Friction Washer
Unavailable
