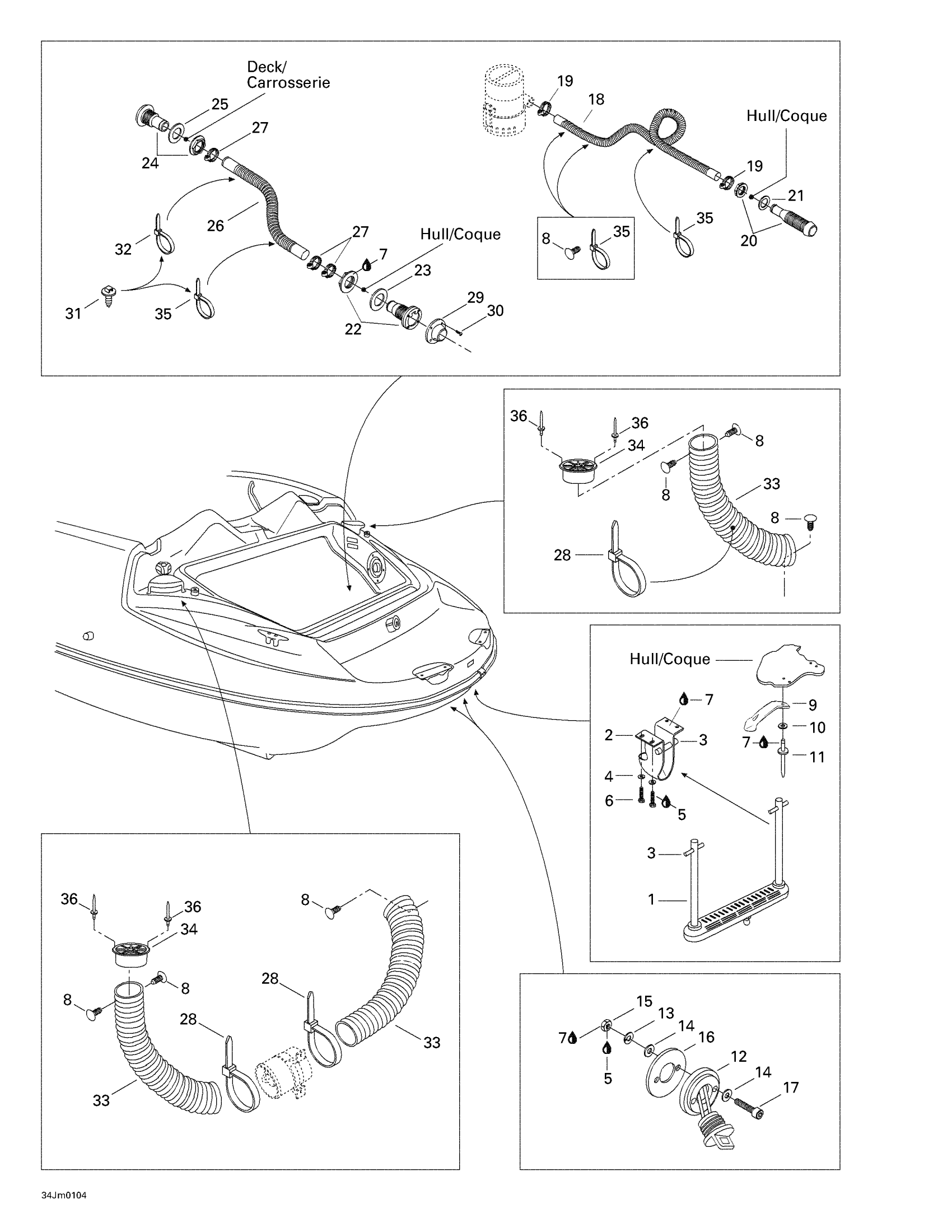

Sea-doo Speedster, 5443, 2001 09- Body And Accessories 1 Diagram
#
Description
Price
1
LADDER - Call your local BRP dealership
204060187
Unavailable
2
U-BRACKET - Call your local BRP dealership
204060141
Unavailable
3
ROLL PIN M8 X 55 - Call your local BRP dealership
211300021
Unavailable
4
Lock Washer Helical M6
234161601
$1.15
5
Loctite 243, 10 ml
293800060
$21.49
6
Hex. Screw M6 X 35
207163560
$1.49
7
Silicone Sealant 51388, 300 ml
296000309
$36.99
8
Black, Dart
293730006
$0.99
9
Hood Latch
570027100
$13.49
10
Flat Washer 5 mm, Stainless
234052600
$0.77
11
Pop Rivet 3/16"
293150013
$1.37
12
Drain Plug
292000187
$14.49
13
Lock Washer 4 mm
234141601
$1.15
14
Flat Washer 4 mm
234040600
$0.55
15
NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership
232041600
Unavailable
16
GASKET - Call your local BRP dealership
293250030
Unavailable
17
Socket Screw M4 X 30
205043060
Unavailable
18
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership
291001206
Unavailable
19
Tridon Clamp
293650016
$10.99
20
Fitting
293710162
$13.49
21
GASKET - Call your local BRP dealership This part replaces 293250251.
293250006
Unavailable
22
THRU HULL FITTING - Call your local BRP dealership
204060071
Unavailable
23
GASKET - Call your local BRP dealership
292800106
Unavailable
24
FITTING - Call your local BRP dealership
293710060
Unavailable
25
GASKET - Call your local BRP dealership
292800106
Unavailable
26
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership
204070560
Unavailable
27
Norma Clamp
293650074
$17.05
28
Tie Rap
293750019
$3.29
29
SCUPPER VALVE - Call your local BRP dealership
204060188
Unavailable
30
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown
211000180
Unavailable
31
Mount Dart
293730040
$1.04
32
Tie Wrap 368 mm
293750008
$1.04
33
Was 204050122 Vent Hose 4"
219704358
$25.99
34
Vent Adaptor
204050160
Unavailable
35
Tie-Rap 180 mm
414115200
$0.11
36
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
