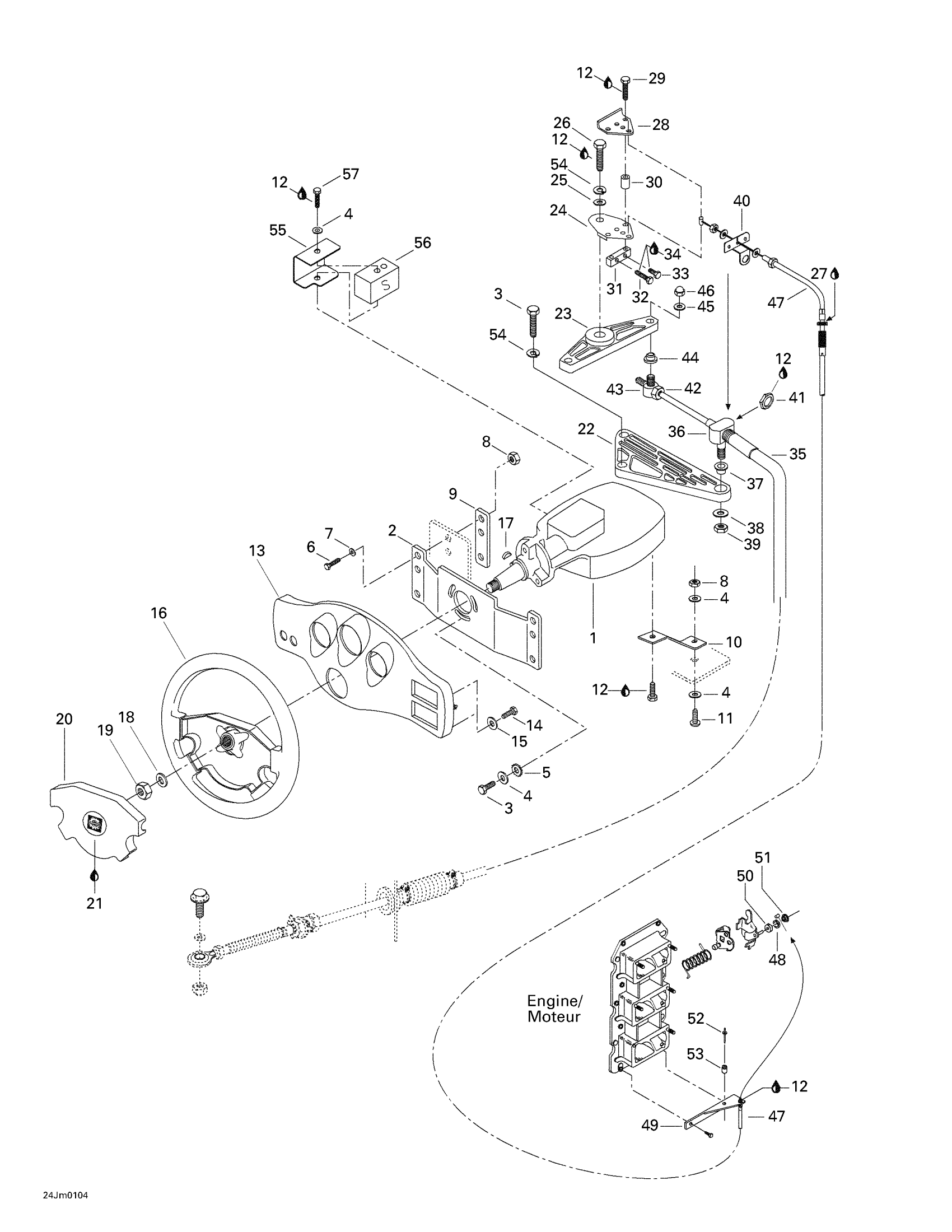

Sea-doo Speedster, 5443, 2001 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership
204390244
Unavailable
2
Steering Support
204390247
Unavailable
3
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
4
Flat Washer M6, Stainless
234062600
$0.77
5
Serrated Lock Washer 8 mm
234481608
$1.15
6
Hex. Screw M6 X 30
207163060
$1.48
7
Stainless Flat Washer M6
234061600
$0.33
8
Hex. Elastic Stop Nut M6
232561600
$1.15
9
Reinforcement Plate
204390130
Unavailable
10
Steering Support
204390243
Unavailable
11
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
12
Loctite 243, 10 ml
293800060
$21.49
13
Fascia
204390209
Unavailable
14
Hex. Flange Screw K40 X 25
241142560
$2.64
15
Flat Washer 4 mm, Stainless
234042600
$1.15
16
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
17
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
18
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
19
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
20
Black, Steering Center
204390076
Unavailable
21
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
22
Cable Support
204390125
Unavailable
23
HELM ARM - Call your local BRP dealership
204390250
Unavailable
24
Lower Clip | CHALLENGER 1800 (5774).
204390283
Unavailable
25
Spacer
204390057
Unavailable
26
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
UPPER CLIP - Call your local BRP dealership
204390267
Unavailable
29
Hex. Screw M6 X 25
207162560
$1.47
30
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
31
Adjustment Block
204390056
Unavailable
32
Hex. Screw M5 X 35
207153560
Unavailable
33
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152560
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
STEERING CABLE - Call your local BRP dealership
204390212
Unavailable
36
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
37
Flanged Bushing
293350014
$12.99
38
Flat Washer 10 mm, Stainless
234001600
$1.15
39
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
40
Cable Support | CHALLENGER 1800 (5774).
204390232
Unavailable
41
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
42
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
43
PIVOT - Call your local BRP dealership
277000456
Unavailable
44
BUSHING - Call your local BRP dealership
293350012
Unavailable
45
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
46
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
47
Low Speed Cable Control
204390237
Unavailable
48
Ring Retainer | UTOPIA 240 EFI.
204390180
Unavailable
49
Support Cable (Low Speed) | UTOPIA 240 EFI.
204390181
Unavailable
50
CABLE RETAINER (LOW SPEED) - Call your local BRP dealership | UTOPIA 240 EFI.
204390268
Unavailable
51
Cable Cover | UTOPIA 240 EFI.
204390269
$76.99
52
Pop RIvet 1/8 X ,375
293150285
$0.33
53
Stopper - Rubber | UTOPIA 240 EFI.
204390255
Unavailable
54
Lock Washer 1/4”
211200025
$1.29
55
Bumper Support
204390245
Unavailable
56
Bumper
204390246
Unavailable
57
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
