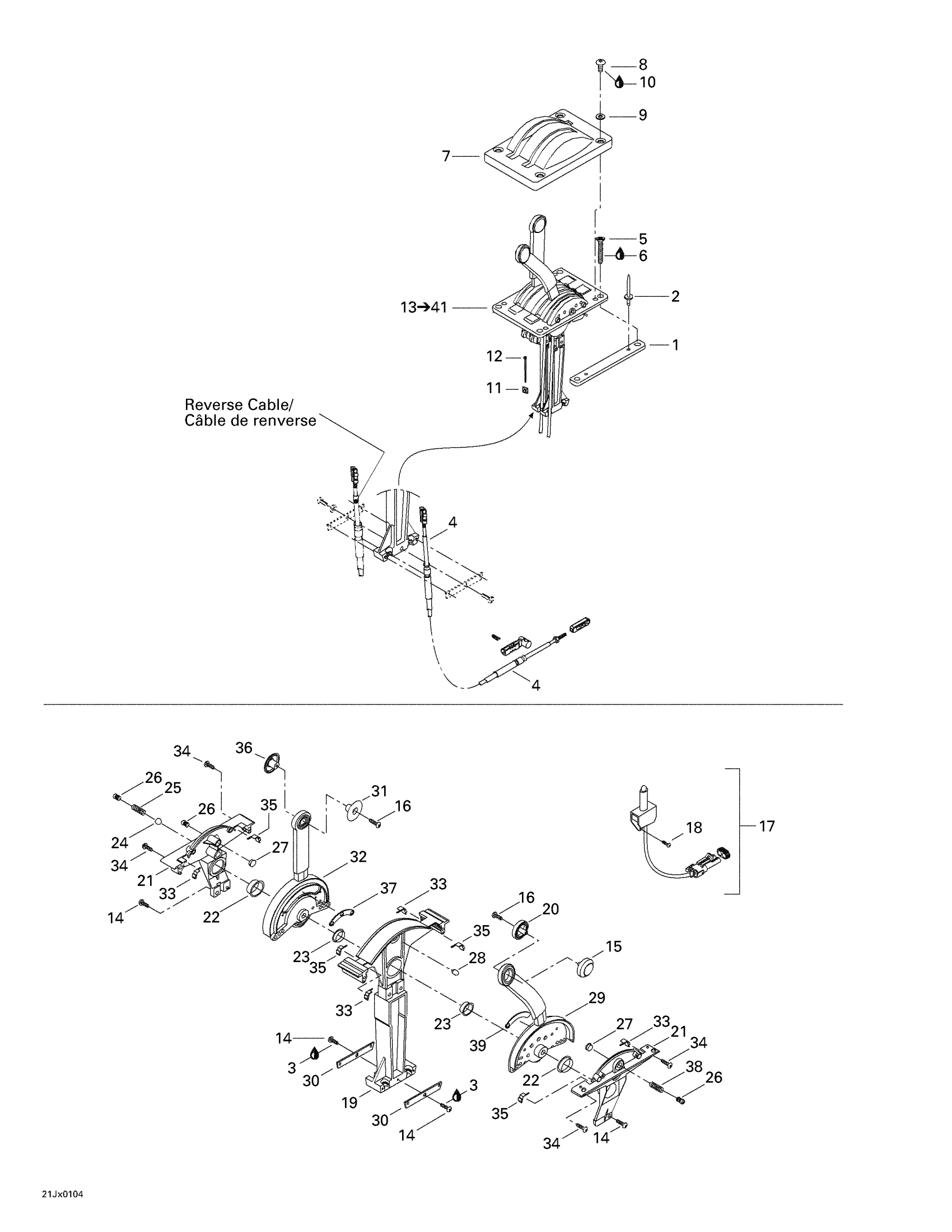

Sea-doo Speedster, 5443, 2001 05- Control Handle Diagram
#
1
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
2
Pop Rivet 3/16"
293150013
$1.37
3
Loctite 243, 10 ml
293800060
$21.49
4
Throttle Cable
204390211
Unavailable
5
SCREW M5 X 30 - Call your local BRP dealership
205353060
Unavailable
6
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
7
Control Cover
204390123
Unavailable
8
Phillips Screw M4 X 10
208641060
$1.01
9
Flat Washer 4 mm
234040600
$0.55
10
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
11
TIE RAP MOUNT - Call your local BRP dealership
293750015
Unavailable
12
Tie Wrap 94 mm | 4X4
293750001
$1.03
13
Ultraflex Control Ass'y | Includes 18 to 46
204390377
$1.00
14
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
15
HALF-THROTTLE HANDLE, THREADED - Call your local BRP dealership
277000415
Unavailable
16
SCREW M3.5 X 25 - Call your local BRP dealership
277000419
Unavailable
17
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership
278001195
Unavailable
18
SCREW M3 X 6 - Call your local BRP dealership
208630660
Unavailable
19
LH Frame
204390224
Unavailable
20
HALF-THROTTLE HANDLE - Call your local BRP dealership
277000416
Unavailable
21
Half-Case
277000703
Unavailable
22
BUSHING - Call your local BRP dealership
277000397
Unavailable
23
BUSHING - Call your local BRP dealership
277000398
Unavailable
24
BALL - Call your local BRP dealership
277000399
Unavailable
25
SPRING - Call your local BRP dealership
277000400
Unavailable
26
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
27
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
28
BLOCKING PIVOT - Call your local BRP dealership
277000404
Unavailable
29
THROTTLE LEVER - Call your local BRP dealership
277000655
Unavailable
30
RETAINING PLATE - Call your local BRP dealership
204390227
Unavailable
31
HALF-SHIFT HANDLE - Call your local BRP dealership
277000418
Unavailable
32
SHIFT LEVER - Call your local BRP dealership
277000414
Unavailable
33
RH Water Seal
277000423
Unavailable
34
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
35
LH Water Seal
277000424
Unavailable
36
HALF-SHIFT HANDLE, THREADED - Call your local BRP dealership
277000417
Unavailable
37
Shift Lever Spacer
277000408
Unavailable
38
SPRING - Call your local BRP dealership
277000401
Unavailable
39
THROTTLE LEVER SPACER - Call your local BRP dealership
277000659
Unavailable
40
CLEVIS L26 - Call your local BRP dealership | Not Shown
204390226
Unavailable
41
CLEVIS L25 - Call your local BRP dealership
204390225
Unavailable
