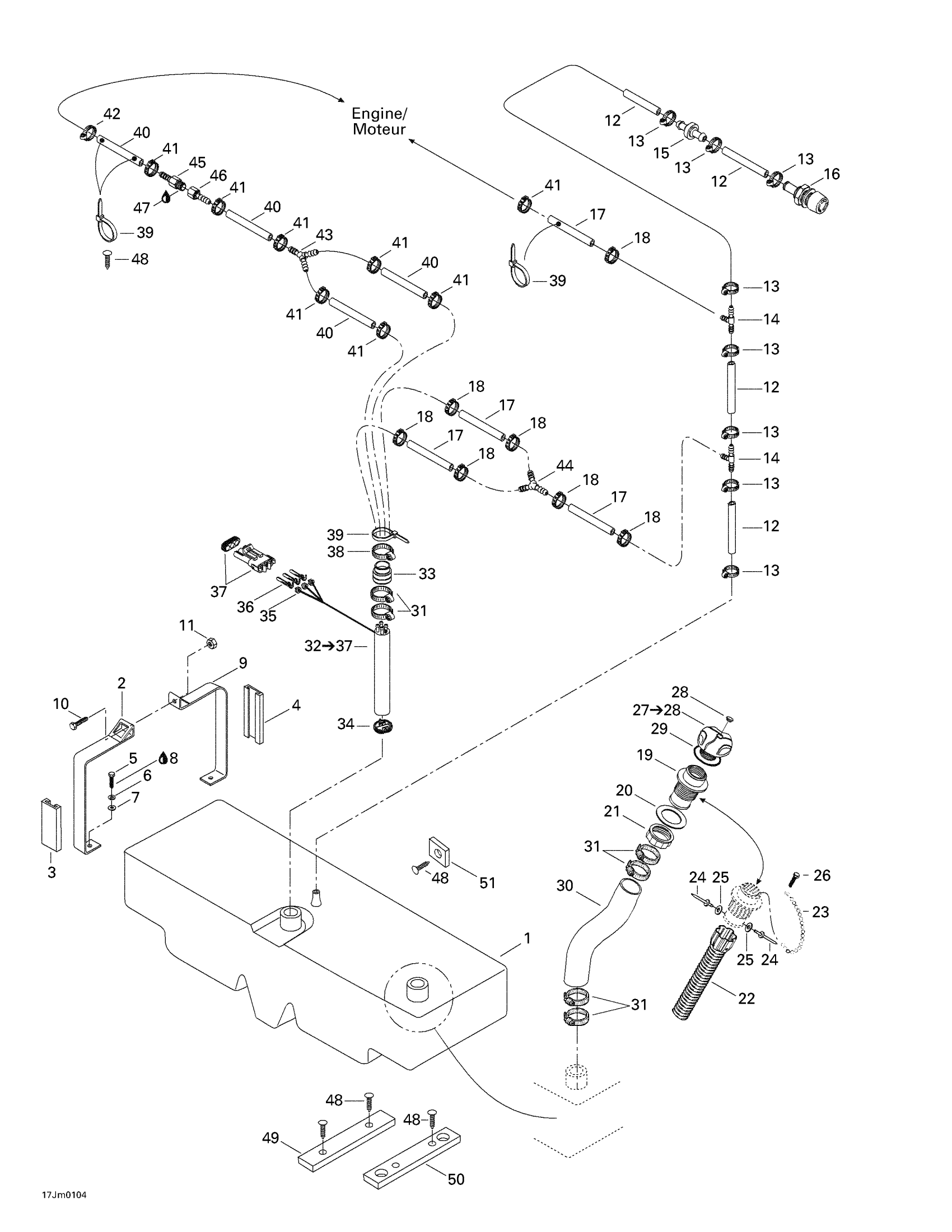

Sea-doo Speedster, 5443, 2001 02- Fuel System Diagram
#
1
Plastic Fuel Tank
204560053
Unavailable
2
Tank Bracket
204560065
Unavailable
3
Protector Strip
204560075
Unavailable
4
Protector Strip
204560076
Unavailable
5
Hex. Screw M8 X 30
207183060
$1.58
6
Lock Washer 8 mm, Stainless
234181601
$0.55
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
Loctite 271, 10 ml
293800005
$26.99
9
Tank Bracket
204560072
Unavailable
10
HEX. SCREW M8 X 55 - Call your local BRP dealership
207185560
Unavailable
11
Hex. Elastic Nut M8
232581600
$1.48
12
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
13
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
14
T-Fitting
204560038
Unavailable
15
VENT FUEL SURGE PROTECTOR - Call your local BRP dealership
204560101
Unavailable
16
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
17
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
18
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
19
Filler Neck
275500247
Unavailable
20
Gasket
293250029
$14.82
21
Filler Neck Nut, Fuel
211100012
$14.22
22
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.
275500757
Unavailable
23
Oil Cap Chain
275500015
Unavailable
24
Rivet 1/8”
293150057
Unavailable
25
Flat Washer M3, Stainless
234032600
$0.55
26
Screw K40 X 10
241140060
$1.48
27
Fuel Tank Cap, Black | Includes 26 to 27
275500430
$27.49
28
Black, Snap Cap
293000034
$9.39
29
Gasket
293250017
Unavailable
30
Exterior Hose Filler Neck
204560079
Unavailable
31
Norma Clamp
293650081
$12.18
32
BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48
204560223
Unavailable
33
Fuel Tube Adaptor
204560066
Unavailable
34
FUEL FILTER - Call your local BRP dealership
275500397
Unavailable
35
Wire Seal
278000218
$4.39
36
Female Terminal
278000223
$3.19
37
Male Housing, 3 Circuits
278000273
$9.59
38
Norma Clamp
293650077
$7.41
39
Tie-Rap 180 mm
414115200
$0.11
40
Hose 5/16”, Meter
204560177
Unavailable
41
NORMA CLAMP - Call your local BRP dealership
293650070
Unavailable
42
Tridon Gear Clamp
293650172
$3.09
43
Y-Fitting
204550001
Unavailable
44
Y-Fitting
293710059
$9.69
45
Anti-Siphon Valve | CHALLENGER 1800 (5774).
204560122
Unavailable
46
HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).
293700038
Unavailable
47
Was 293800013 Loctite 56765
219704454
$65.99
48
Black, Dart
293730006
$0.99
49
Rubber Pad
293830055
Unavailable
50
Rubber Pad
204060185
Unavailable
51
Rubber Pad
274000354
Unavailable
