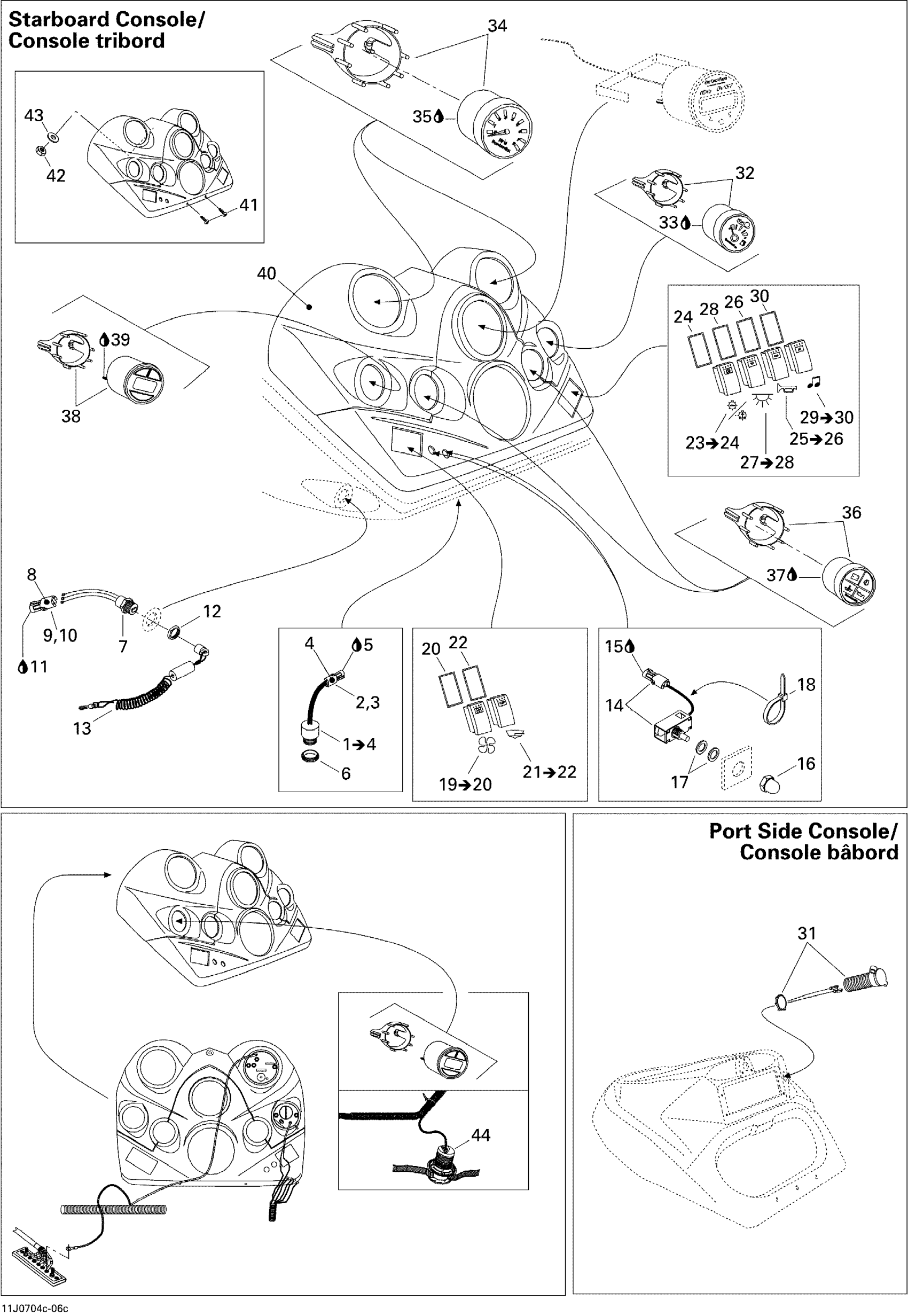

Sea-doo Speedster 200 WAKE 155NA, 2007 Electrical Accessories 3 Diagram

#

Description
Price

1

Buzzer Ass'y

204470913

$82.81

2

Male Terminal | XT Models

278000222

$2.55

3

Wire Seal

278000218

$3.48

4

Female Housing, 2 Circuits

278000217

$7.59

5

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

6

Buzzer Nut

278000707

Unavailable

7

Safety Switch This part replaces 278002325.

278002773

$89.67

8

Male Housing, 3 Circuits

278000273

$7.59

9

Wire Seal

278000218

$3.48

10

Female Terminal

278000223

$2.55

11

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

12

Safety Nut (DESS Switch)

278002963

$2.72

13

Safety Lanyard

204471206

$68.87

14

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

15

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

16

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

17

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

18

Tie Wrap 142 mm

293750002

$0.88

19

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

20

Gasket

204470132

Unavailable

21

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

22

Gasket

204470132

Unavailable

23

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

24

Gasket

204470132

Unavailable

25

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$44.75

26

Gasket

204470132

Unavailable

27

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

28

Gasket

204470132

Unavailable

29

STEREO SWITCH - Call your local BRP dealership | Includes 28 to 29

204471116

Unavailable

30

Gasket

204470132

Unavailable

31

DC Outlet

710001248

$31.17

32

FUEL GAUGE - Call your local BRP dealership

204471128

Unavailable

33

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

34

TACHOMETER GAUGE - Call your local BRP dealership

204470958

Unavailable

35

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

36

ENGINE WARNING GAUGE - Call your local BRP dealership

204471130

Unavailable

37

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

38

DEPTH GAUGE - Call your local BRP dealership

204470917

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

40

Fascia

204471150

Unavailable

41

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

42

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

43

Flat Washer 8 mm, Stainless

234082600

$1.98

44

Depth Sensor

204471292

Unavailable
