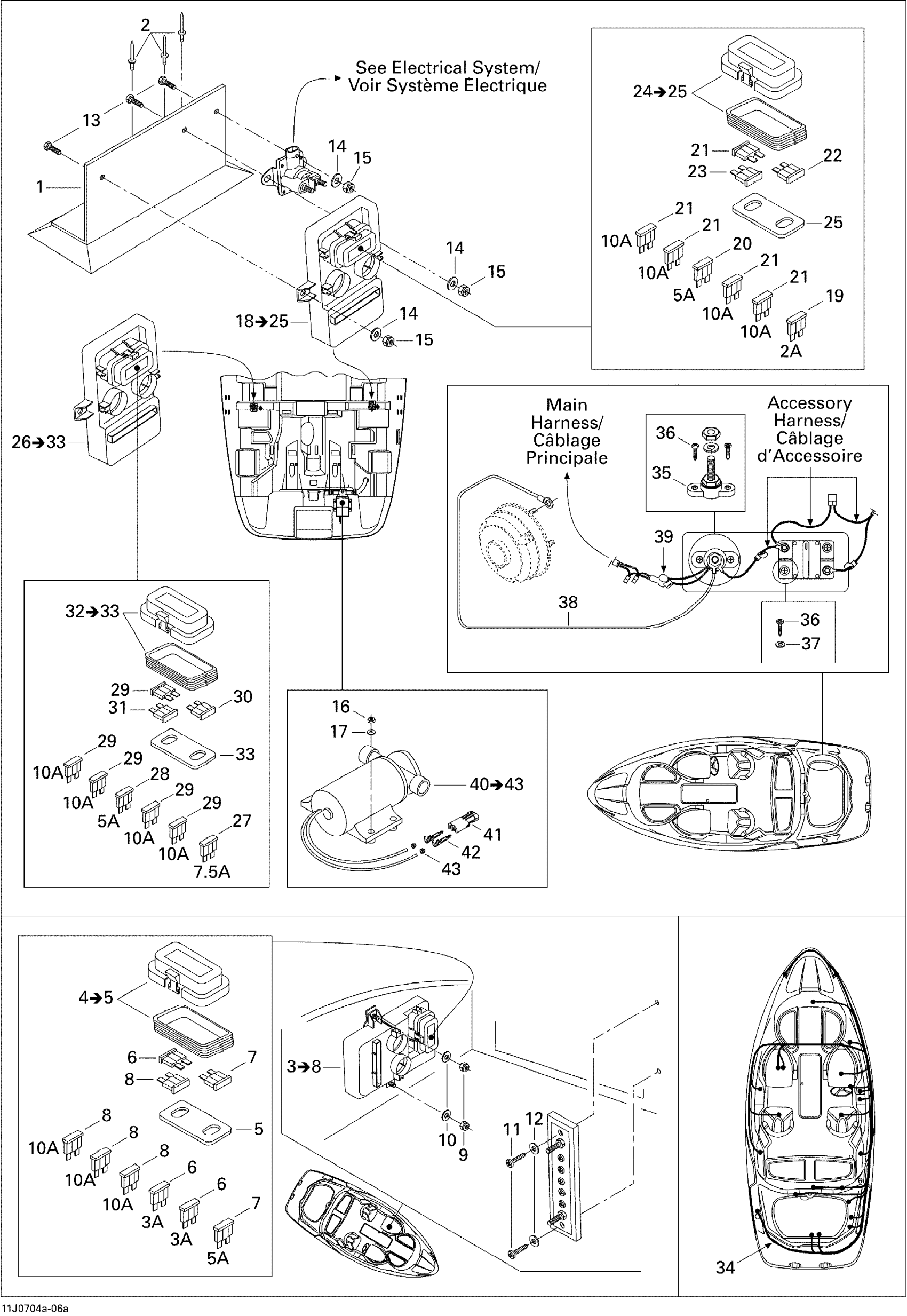

Sea-doo Speedster 200 WAKE 155NA, 2007 10- Electrical Accessories 1 Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

204471071

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.56

3

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

4

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

5

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.28

8

Fuse, 10 Amperes | North America

278001197

$2.21

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Flat Washer M6, Stainless

234062600

$0.77

11

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

12

Flat Washer 4 mm, Stainless

234041600

$1.15

13

Hex. Forming Screw M6 X 20

207162060

$1.29

14

Flat Washer M6, Stainless

234062600

$0.77

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

17

Flat Washer M6, Stainless

234062600

$0.77

18

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

19

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

20

Fuse, 5 Amperes | CE

278000344

$3.28

21

Fuse, 10 Amperes | North America

278001197

$2.21

22

Fuse, 20 Amperes

409003900

$3.28

23

Fuse, 30 Amperes

410917200

$3.28

24

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

25

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

26

Fuse Block | Includes 4 to 11

204471091

Unavailable

27

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

28

Fuse, 5 Amperes | CE

278000344

$3.28

29

Fuse, 10 Amperes | North America

278001197

$2.21

30

Fuse, 20 Amperes

409003900

$3.28

31

Fuse, 30 Amperes

410917200

$3.28

32

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

33

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

34

Main Harness (Accessory Harness)

204471109

Unavailable

35

POWER POST 3/8 - Call your local BRP dealership

204471083

Unavailable

36

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

37

Flat Washer 4 mm, Stainless

234041600

$1.15

38

Power Cable, Red

204471082

Unavailable

39

BOOT, RED - Call your local BRP dealership

204471081

Unavailable

40

Ballast Pump Ass'y

204471068

Unavailable

41

Female Housing, 2 Circuits

278000217

$9.59

42

Male Terminal | XT Models

278000222

$3.19

43

Wire Seal

278000218

$4.39
