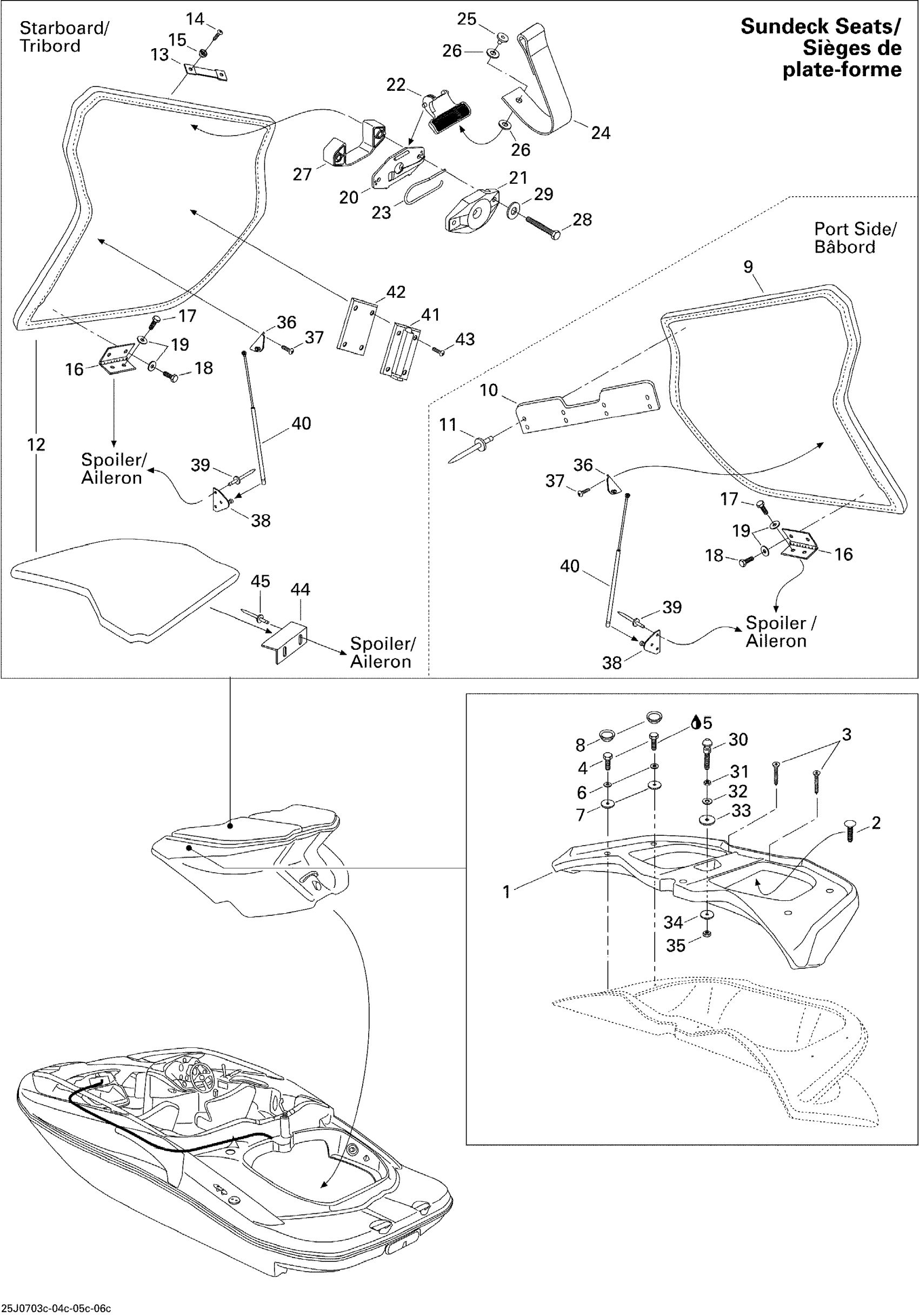

Sea-doo Speedster 200 WAKE 155NA, 2007 09- Seat 3 Diagram
#
1
Black, Spoiler
204613414
Unavailable
2
Dart
293730021
$7.79
3
PHILLIPS TAPPING SCREW #10 X 1-1/4 - Call your local BRP dealership
204100164
Unavailable
4
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
5
Loctite 243, 10 ml
293800060
$21.49
6
Flat Washer M6, Stainless
234062600
$0.77
7
Flat Washer 10 mm, Stainless
234002600
$2.22
8
PLUG 1-1/2, BLACK - Call your local BRP dealership
204130065
Unavailable
9
Sunpad Door Ass'y, Port Side | Viper Red
204613415
Unavailable
10
Retainer Plate
204612684
Unavailable
11
Pop Rivet 3/16"
293150008
$0.50
12
Sunpad Door Ass'y, Starboard | Viper Red
204613417
Unavailable
13
Loop | Viper Red
204613508
Unavailable
14
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
15
FINITION WASHER - Call your local BRP dealership
204100057
Unavailable
16
SUNDECK HINGE - Call your local BRP dealership
204612769
Unavailable
17
TAPPING SCREW 1/4-20 X 3/4 - Call your local BRP dealership
204100134
Unavailable
18
TAPPING SCREW 1/4-20 X 1/2 - Call your local BRP dealership
204100137
Unavailable
19
Stainless Flat Washer M6
234061600
$0.33
20
Latch Ass'y
269700109
$24.99
21
Latch Ass'y
269700109
$24.99
22
Latch Ass'y
269700109
$24.99
23
Latch Spring
269700017
$9.19
24
Strap | Viper Red
204613507
Unavailable
25
Pop Rivet 3/16"
293150039
$1.49
26
Flat Washer 5 mm, Stainless
234052600
$0.77
27
SHIM - Call your local BRP dealership
269700015
Unavailable
28
HEX. BOLT TAPPING - Call your local BRP dealership
204100141
Unavailable
29
Stainless Flat Washer M6
234061600
$0.33
30
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
31
Hex. Jam Nut M10
232100600
$2.22
32
Flat Washer 10 mm, Stainless
234002600
$2.22
33
RUBBER WASHER - Call your local BRP dealership
291000628
Unavailable
34
Flat Washer 10 mm, Stainless
234002600
$2.22
35
HEX. ELASTIC NUT M10 - Call your local BRP dealership
232501600
Unavailable
36
Shock Bracket
204073074
$27.99
37
SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership
204100073
Unavailable
38
Shock Bracket
204071673
Unavailable
39
Pop Rivet 3/16"
293150039
$1.49
40
GAS SHOCK - Call your local BRP dealership
204071874
Unavailable
41
SLIDE LATCH - Call your local BRP dealership
204612641
Unavailable
42
LATCH SHIM - Call your local BRP dealership
204612664
Unavailable
43
TAPPING SCREW - Call your local BRP dealership
204100082
Unavailable
44
KEEPER - Call your local BRP dealership
204070060
Unavailable
45
Pop Rivet 3/16"
293150039
$1.49
