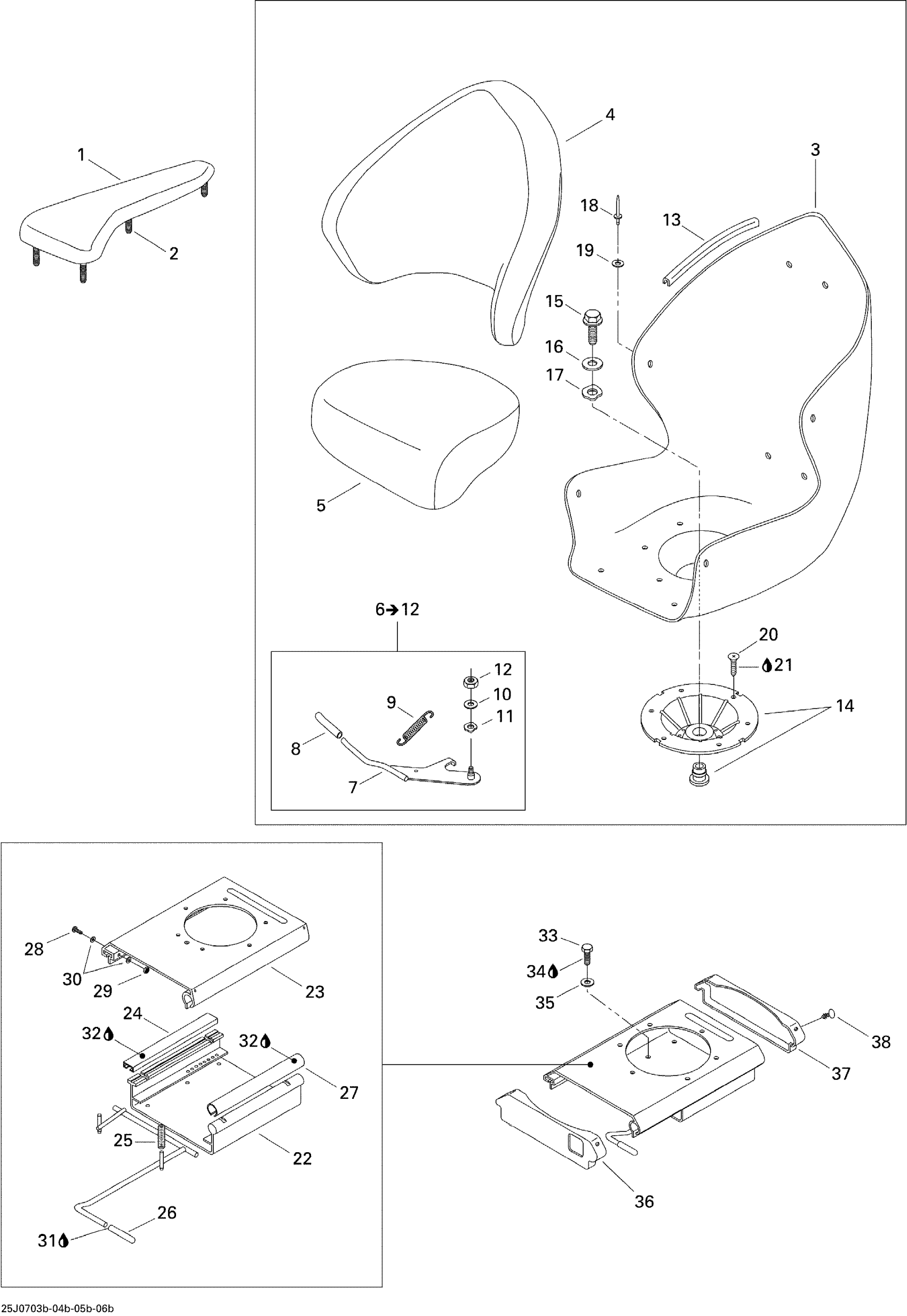

Sea-doo Speedster 200 WAKE 155NA, 2007 09- Seat 2 Diagram
#
1
Elbowrest Ass'y, Starboard | Viper Red
204613405
Unavailable
1
ELBOWREST ASS'Y, PORT SIDE - Call your local BRP dealership | Viper Red
204613407
Unavailable
2
Dart
293730021
$7.79
3
Seat Base
204611146
Unavailable
4
Backrest Cushion Ass'y
204613410
Unavailable
5
Seat Cushion Ass'y
204613412
Unavailable
6
Lever Arm Ass’y
204610523
Unavailable
7
Lever Arm
204610524
Unavailable
8
Handle
204610348
Unavailable
9
SPRING - Call your local BRP dealership
204610349
Unavailable
10
Stainless Flat Washer M6
234061600
$0.33
11
Washer
211200059
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
$1.15
13
TRIM, BLACK - Call your local BRP dealership
204610371
Unavailable
14
SWIVEL PLATE - Call your local BRP dealership
204610513
Unavailable
15
SCREW-SHOULDER - Call your local BRP dealership
211000172
Unavailable
16
FLAT WASHER - Call your local BRP dealership
211200058
Unavailable
17
WASHER - Call your local BRP dealership
293200056
Unavailable
18
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014.
293150201
Unavailable
19
FLAT WASHER #10 - Call your local BRP dealership | Except STD
204100059
Unavailable
20
PHILLIPS SCREW M6 X 16 - Call your local BRP dealership
208561660
Unavailable
21
Loctite 243, 10 ml
293800060
$21.49
22
Lower Part
269500636
Unavailable
23
Upper Part
269500637
Unavailable
24
Rectangular Bushing
269500638
Unavailable
25
Spring
269500640
Unavailable
26
Handle
204610348
Unavailable
27
Circle Bushing
269500642
Unavailable
28
Hex. Screw M6 X 50
207065060
$2.22
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
Stainless Flat Washer M6
234061600
$0.33
31
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
32
Synthetic Grease, 400 G
293550010
Unavailable
33
Hex. Screw M6 X 35
207163560
$1.49
34
Loctite 243, 10 ml
293800060
$21.49
35
Flat Washer M6, Stainless
234062600
$0.77
36
Front Protector
204610375
Unavailable
37
Rear Protector
204610376
Unavailable
38
Black, Dart
293730006
$0.99
