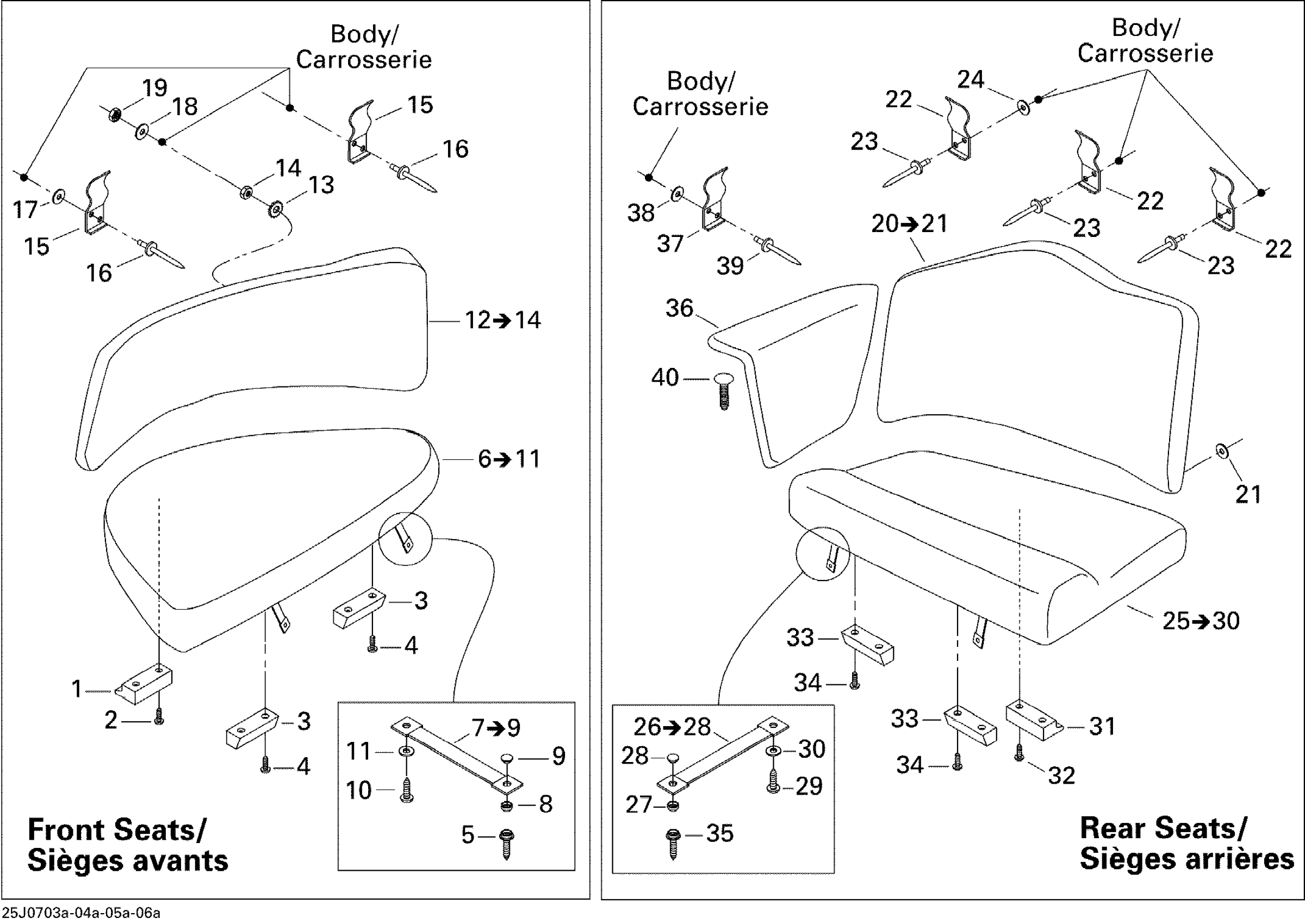

Sea-doo Speedster 200 WAKE 155NA, 2007 09- Seat 1 Diagram
#
1
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
2
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
3
LATCH - Call your local BRP dealership
204611805
Unavailable
4
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
5
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
6
Front Seat Ass'y, Port Side | Includes 18 to 23
204613378
Unavailable
6
Front Seat Ass'y, Starboard | Includes 18 to 23
204613391
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
9
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
10
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
11
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
12
Front Seat Backrest Ass'y, Port Side | Includes 24 to 26, Viper Red
204613387
Unavailable
12
Front Seat Backrest Ass'y, Starboard | Includes 24 to 26, Viper Red
204613389
Unavailable
13
External Serrated Lock Washer 6 mm
234461608
$1.15
14
Hex. Jam Nut
204100060
Unavailable
15
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
16
Pop Rivet 3/16"
293150043
$2.09
17
Flat Washer 5 mm, Stainless
234052400
$2.85
18
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
19
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
20
Rear Backrest Ass'y, Starboard | Includes 16 to 17, Viper Red
204613393
Unavailable
20
Rear Backrest Ass'y, Port Side | Includes 16 to 17, Viper Red
204613395
Unavailable
21
Flat Washer M6, Stainless
234062600
$0.77
22
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
23
Pop Rivet 3/16"
293150043
$2.09
24
Flat Washer 5 mm, Stainless
234052400
$2.85
25
REAR SEAT ASS'Y, PORT SIDE - Call your local BRP dealership | Includes 25 to 30
204613397
Unavailable
25
Rear Seat Ass'y, Starboard | Includes 25 to 30
204613399
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
SNAP BASE - Call your local BRP dealership | SE
204000083
Unavailable
28
SNAP COVER - Call your local BRP dealership | SE
204611609
Unavailable
29
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
30
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
31
SEAT LATCH - Call your local BRP dealership
204611940
Unavailable
32
SCREW 1/4?-20 X 2? - Call your local BRP dealership
204100039
Unavailable
33
LATCH - Call your local BRP dealership
204611805
Unavailable
34
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
35
SCREW-STUD TAPP. 3/8 SS - Call your local BRP dealership
202000159
Unavailable
36
Armrest, Starboard | Viper Red
204613401
Unavailable
36
Armrest, Port Side | Viper Red
204613403
Unavailable
37
SEAT SUPPORT - Call your local BRP dealership
204613998
Unavailable
38
Flat Washer 5 mm, Stainless
234052400
$2.85
39
Pop Rivet 3/16"
293150043
$2.09
40
Dart
293730021
$7.79
