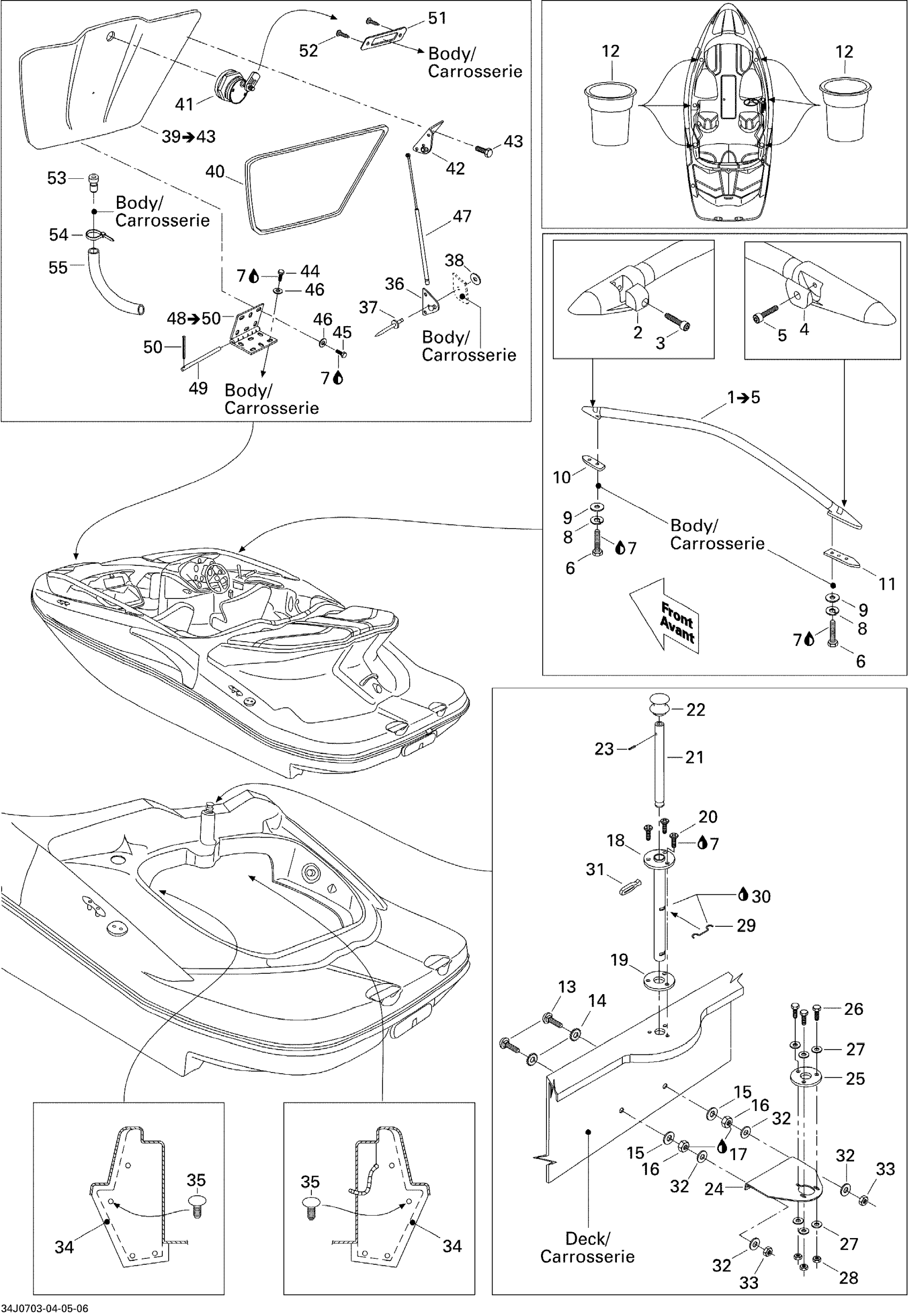

Sea-doo Speedster 200 WAKE 155NA, 2007 09- Body And Accessories Diagram

#

Description
Price

1

RH Side Rail Ass'y | Starboard, Includes 1 To 5

204072673

Unavailable

1

LH Side Rail Ass'y | Port Side, Includes 1 To 5

204072674

Unavailable

2

Rail Insert, Front

204072856

Unavailable

3

SOCKET SCREW, 3/8-16 X 1 - Call your local BRP dealership

204100194

Unavailable

4

Rail Insert, Rear Starboard

204072857

Unavailable

4

Rail Insert, Rear Port Side

204072858

Unavailable

5

Socket Screw, 3/8-16 x 3/4"

204100195

Unavailable

6

HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership

204100135

Unavailable

7

Loctite 243, 10 ml

293800060

$21.49

8

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

9

Flat Washer 10 mm, Stainless

234002600

$2.22

10

GASKET, FRONT - Call your local BRP dealership | With Tower

204130063

Unavailable

11

GASKET, REAR - Call your local BRP dealership | With Tower

204130064

Unavailable

12

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

13

Elevator Bolt

204000130

Unavailable

14

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

15

Flat Washer M6, Stainless

234062600

$0.77

16

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

17

Loctite 271, 10 ml

293800005

$26.99

18

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

19

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

20

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

21

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

22

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

23

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

24

FIXATION PLATE - Call your local BRP dealership

204071839

Unavailable

25

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

26

Hex. Forming Screw M6 X 20

207162060

$1.29

27

Flat Washer M6, Stainless

234062600

$0.77

28

Hex. Elastic Stop Nut M6

232561600

$1.15

29

SPRING - Call your local BRP dealership

291001205

Unavailable

30

Synthetic Grease, 400 G

293550010

Unavailable

31

Windshield Latch

570023800

$4.49

32

Flat Washer M6, Stainless

234062600

$0.77

33

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

34

SOUNDWALL SEAL - Call your local BRP dealership

204071935

Unavailable

35

Black Dart

293730014

$0.99

36

Shock Bracket

204071673

Unavailable

37

Pop Rivet 3/16"

293150043

$2.09

38

Flat Washer M5, Stainless

234051600

$0.77

39

Bow Cover | Includes 39 to 43

204072465

Unavailable

40

Was 293200017 Neoprene Seal

219704365

$149.99

41

FLUSH LATCH - Call your local BRP dealership

204071937

Unavailable

42

Shock Bracket

204073074

$27.99

43

Hex. Screw M4 X 12, Scotch Grip

207341260

Unavailable

44

Hex. Screw M6 X 25

207162560

$1.47

45

Hex. Screw M6 X 16

207161660

$1.59

46

Stainless Flat Washer M6

234061600

$0.33

47

CYLINDER GAS SHOCK - Call your local BRP dealership

204071918

Unavailable

48

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

49

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

50

Cotter Pin M2.5 X 12

204070205

Unavailable

51

LATCH PLATE - Call your local BRP dealership

204072027

Unavailable

52

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

53

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

54

Tie Wrap 94 mm | 4X4

293750001

$1.03

55

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99
