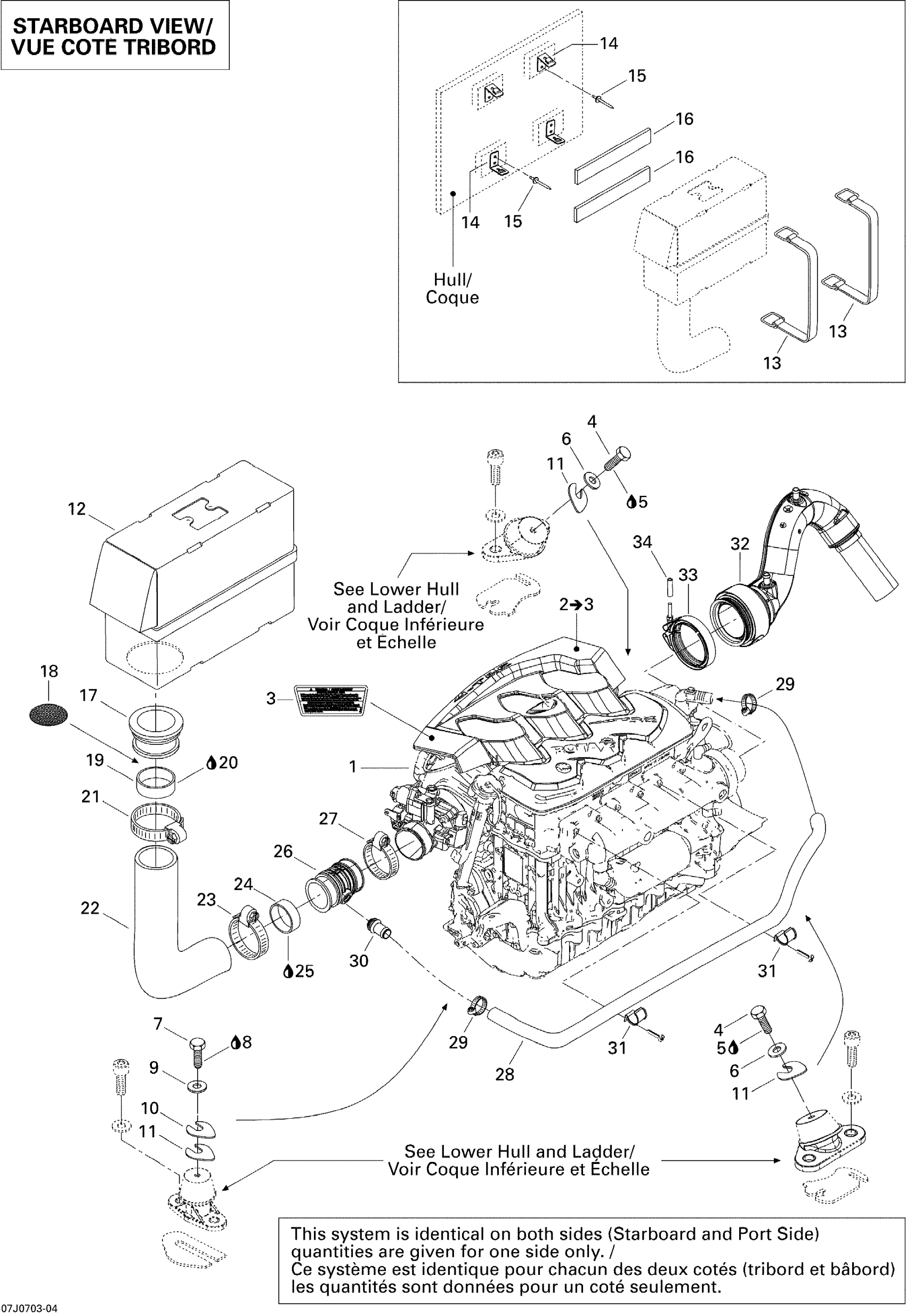

Sea-doo Speedster 200 WAKE 155NA, 2007 Engine And Air Intake Silencer Diagram

#

Description
Price

1

Rotax Engine 4 Strokes, 1503 NA

204250391

Unavailable

2

COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.

270000677

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Loctite 243, 10 ml

293800060

$21.49

9

Flat Washer 8 mm, Stainless

234082600

$2.43

10

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

11

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

12

Air Silencer Ass'y

204250258

Unavailable

13

Retainer Strap

293850097

$11.64

14

Strap Clip 90°

204060017

Unavailable

15

Pop Rivet 3/16"

293150088

$0.99

16

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

17

INTAKE ADAPTATOR - Call your local BRP dealership

508000254

Unavailable

18

Intake Screen

204250395

$25.99

19

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

20

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

21

Tridon Clamp

293650179

$11.49

22

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

23

INTAKE HOSE - Call your local BRP dealership

204340435

Unavailable

24

Tridon Clamp

293650179

$11.49

25

ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership

204250275

Unavailable

26

ADHESIVE LOCTITE 495 - Call your local BRP dealership

293800021

Unavailable

27

Adaptor Hose, Engine

204250276

Unavailable

28

TRIDON GEAR CLAMP - Call your local BRP dealership

293650061

Unavailable

29

Formed Hose

270000949

$47.99

30

Tridon Gear Clamp

293650051

$4.19

31

Breather Valve

273000234

$14.49

32

Retainer

275500664

$14.75

33

EXHAUST PIPE - Call your local BRP dealership

274001030

Unavailable

33

Exhaust Clamp This part replaces 274000959.

274001472

$58.99

34

Polyurethane Hose 10000Mm Long

219704410

$56.99
