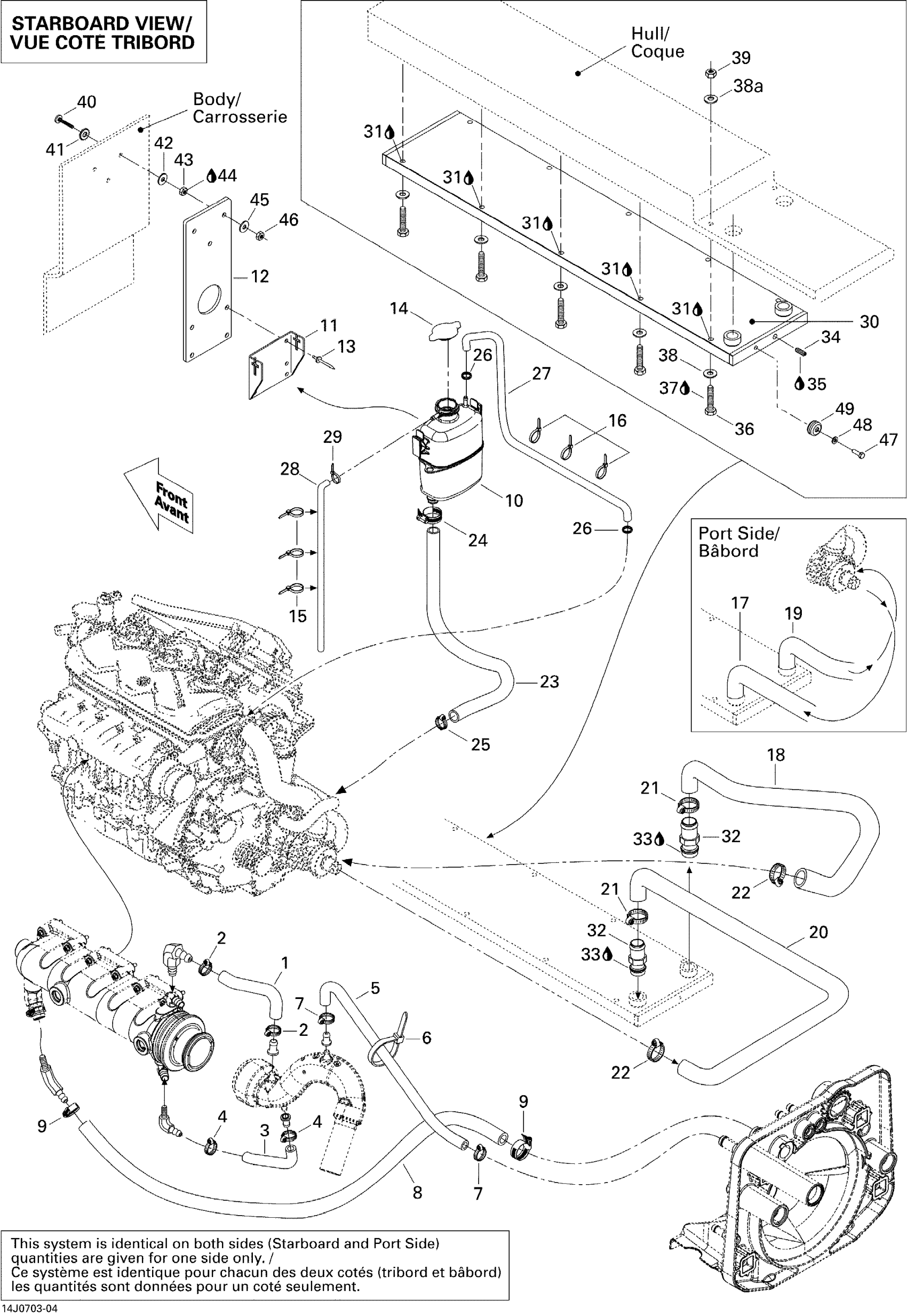

Sea-doo Speedster 200 WAKE 155NA, 2007 01- Cooling System Diagram
#
1
Formed Hose
276000155
Unavailable
2
Tridon Gear Clamp
293650172
$3.09
3
FORMED HOSE - Call your local BRP dealership
276000156
Unavailable
4
Tridon Gear Clamp
293650172
$3.09
5
Was 276000001 Hose 12.5 mm
219704394
$51.99
6
Tie Wrap 368 mm
293750008
$1.04
7
Tridon Gear Clamp
293650172
$3.09
8
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
9
Tridon Gear Clamp
293650051
$4.19
10
Coolant Tank
276000086
$109.99
11
Coolant Tank Bracket
204300165
Unavailable
12
Coolant Tank Bracket Mount
204300202
Unavailable
13
Pop Rivet 3/16"
293150008
$0.50
14
Pressure Cap | Includes 720 to 720a
276000100
$25.99
15
Tie Wrap 142 mm
293750002
$1.25
16
Tie Wrap 142 mm
293750002
$1.25
17
FORMED HOSE - Call your local BRP dealership | Port Side
204300136
Unavailable
18
FORMED HOSE - Call your local BRP dealership | Starboard
204300137
Unavailable
19
FORMED HOSE - Call your local BRP dealership | Port Side
204300138
Unavailable
20
FORMED HOSE - Call your local BRP dealership | Starboard
204300139
Unavailable
21
Tridon Gear Clamp
293650045
$5.69
22
Tridon Gear Clamp
293650045
$5.69
23
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
24
Tridon Gear Clamp
293650051
$4.19
25
Tridon Gear Clamp
293650019
$5.82
26
Oetiker Gear Clamp
293650025
$3.09
27
HOSE 1/4 - Call your local BRP dealership
204300184
Unavailable
28
Polyurethane Hose 10000Mm Long
219704410
$56.99
29
Tie Wrap 94 mm | 4X4
293750001
$1.03
30
Heat Exchanger
204300183
Unavailable
31
Instant Gasket
219701421
$51.99
32
Hose Fitting - Call your local BRP dealership
204300133
Unavailable
33
Était Was 293800050 Loctite 577, 250 ml
219704459
$104.99
34
Pipe Plug Socket Head 1/8-27 Npt
211500001
$9.59
35
Was 293800013 Loctite 56765
219704454
$65.99
36
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership
205405060
Unavailable
37
Loctite 243, 10 ml
293800060
$21.49
38
Flat Washer 10 mm, Stainless
234000600
$1.46
38a
Flat Washer 10 mm, Stainless
234002600
$2.22
39
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
40
Elevator Bolt
204000130
Unavailable
41
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
42
Flat Washer M6, Stainless
234062600
$0.77
43
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
44
Loctite 271, 10 ml
293800005
$26.99
45
Flat Washer M6, Stainless
234062600
$0.77
46
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
47
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
48
Stainless Flat Washer M6
234061600
$0.33
49
Anode Zinc
271001813
$18.99
