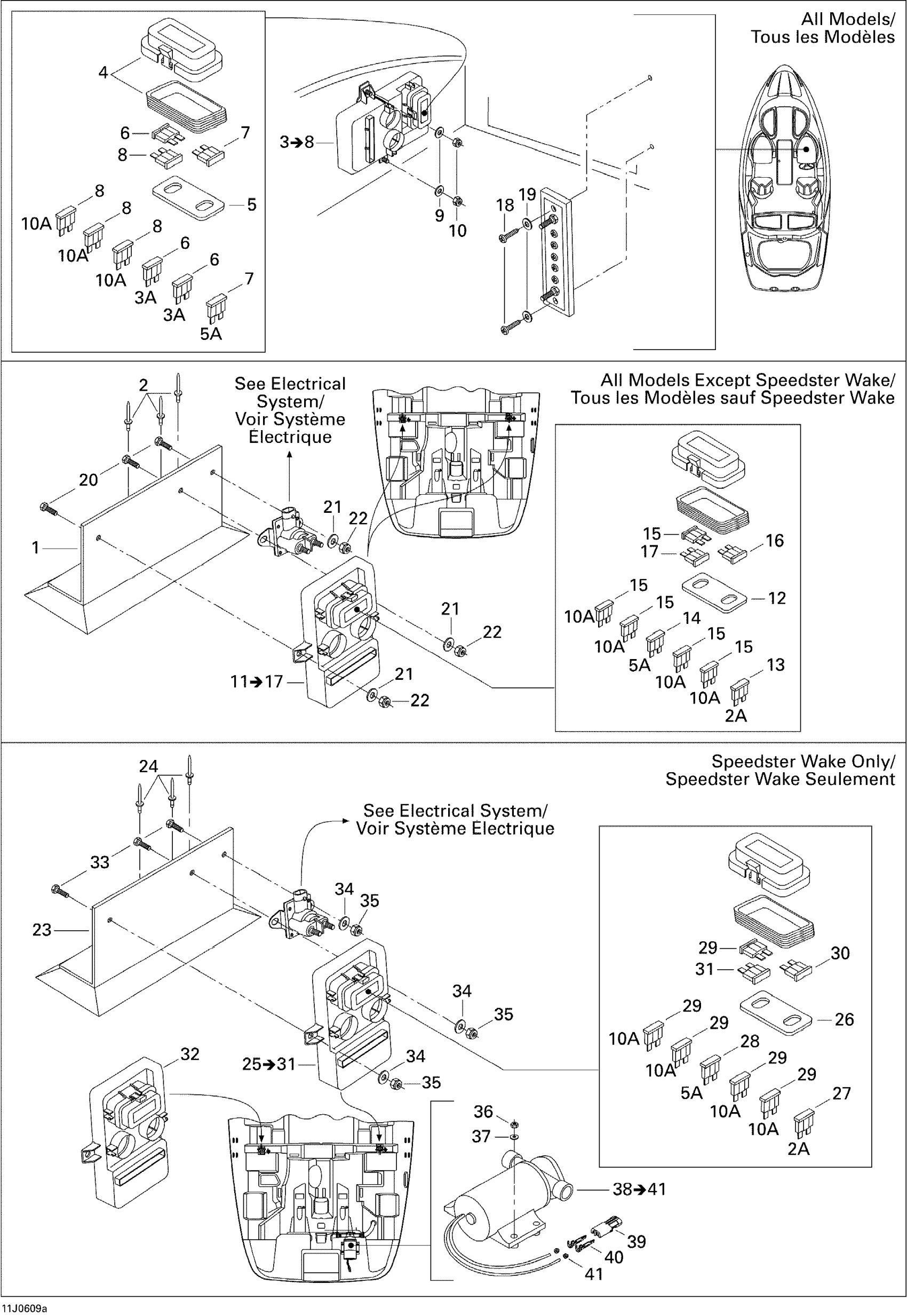

Sea-doo Speedster 200 Twin 4-TEC SCIC, WAKE, Edition 1, 2006 Electrical Accessories 1, WAKE Diagram

#

Description
Price

1

BRACKET - Call your local BRP dealership

204471071

Unavailable

2

Avdel Rivet 3/16"

293150037

$0.54

3

TWIN ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6, North America

204471262

Unavailable

4

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

5

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

6

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

7

Fuse, 5 Amperes | CE

278000344

$3.12

8

Fuse, 10 Amperes | North America

278001197

$2.06

9

Flat Washer M6, Stainless

234062600

$0.73

10

Hex. Elastic Stop Nut M6

232561600

$1.06

11

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

12

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

13

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

14

Fuse, 5 Amperes | CE

278000344

$3.12

15

Fuse, 10 Amperes | North America

278001197

$2.06

16

Fuse, 20 Amperes

409003900

$3.12

17

Fuse, 30 Amperes

410917200

$3.12

18

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

19

Flat Washer 4 mm, Stainless

234041600

$1.04

20

Hex. Forming Screw M6 X 20

207162060

$1.18

21

Flat Washer M6, Stainless

234062600

$0.73

22

Hex. Elastic Stop Nut M6

232561600

$1.06

23

BRACKET - Call your local BRP dealership

204471071

Unavailable

24

Avdel Rivet 3/16"

293150037

$0.54

25

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

26

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

27

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

28

Fuse, 5 Amperes | CE

278000344

$3.12

29

Fuse, 10 Amperes | North America

278001197

$2.06

30

Fuse, 20 Amperes

409003900

$3.12

31

Fuse, 30 Amperes

410917200

$3.12

32

Fuse Block | Includes 4 to 11

204471091

Unavailable

33

Hex. Forming Screw M6 X 20

207162060

$1.18

34

Flat Washer M6, Stainless

234062600

$0.73

35

Hex. Elastic Stop Nut M6

232561600

$1.06

36

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

37

Flat Washer M6, Stainless

234062600

$0.73

38

Ballast Pump Ass'y

204471068

Unavailable

39

Female Housing, 2 Circuits

278000217

$8.72

40

Male Terminal | XT Models

278000222

$2.93

41

Wire Seal

278000218

$4.00
