- Speedster 200 Twin 4-TEC SCIC, WAKE, Edition 1, 2006
09- Front Console And Glove Box WAKE

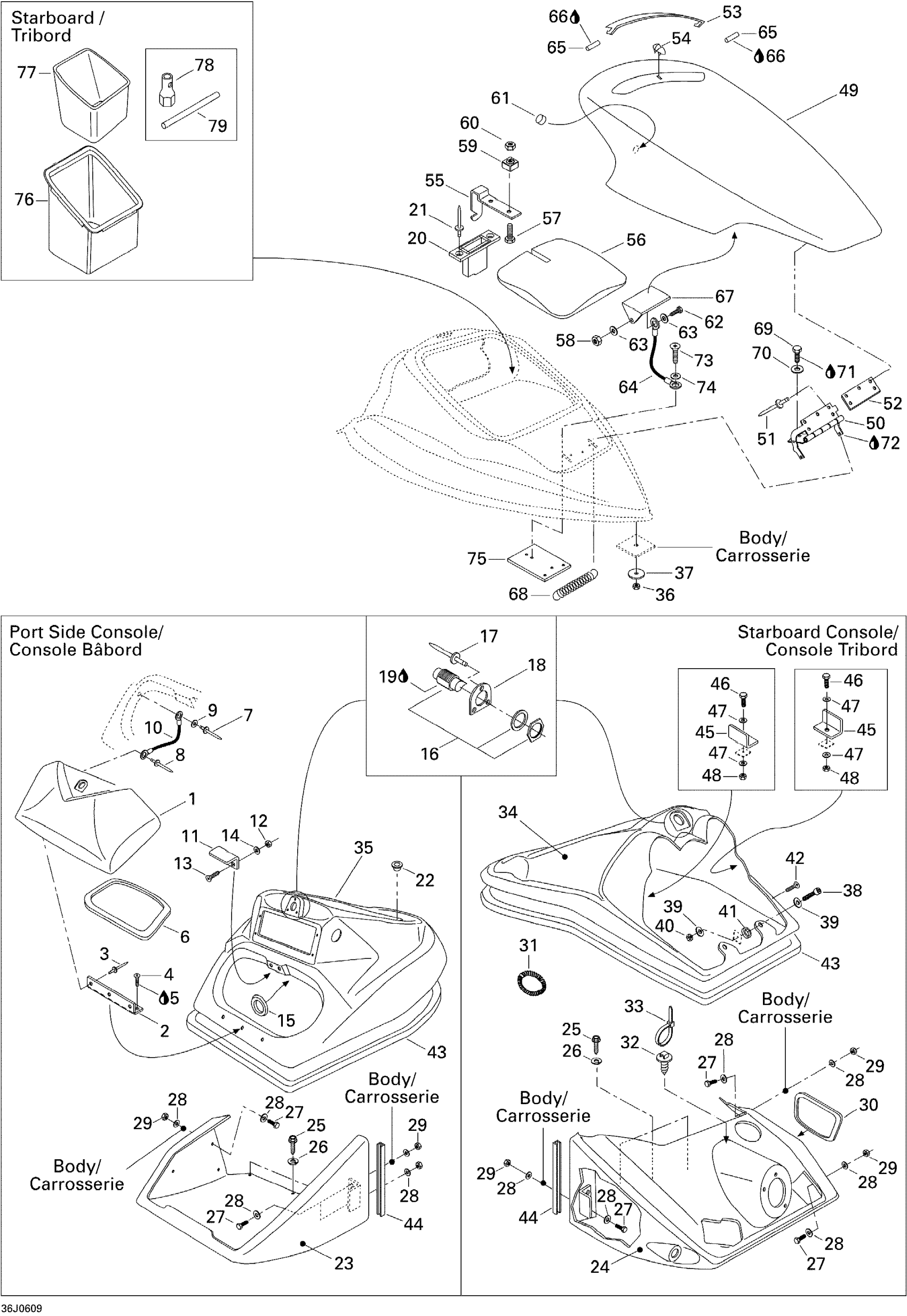

Sea-doo Speedster 200 Twin 4-TEC SCIC, WAKE, Edition 1, 2006 09- Front Console And Glove Box WAKE Diagram
#
1
GLOVE BOX DOOR - Call your local BRP dealership
204072269
Unavailable
1
Glove Box Door
204072336
Unavailable
2
Hinge, Black
204071945
Unavailable
3
Pop Rivet 3/16"
293150088
$0.99
4
Phillips Pan Head Screw M4 X 40
250000169
$1.48
5
Loctite 243, 10 ml
293800060
$21.49
6
Seal Tray 1000Mm Long
219704368
$13.99
7
Pop Rivet 3/16"
293150008
$0.50
8
Pop Rivet 3/16"
293150088
$0.99
9
Flat Washer 5 mm, Stainless
234052600
$0.77
10
RETAINER CABLE - Call your local BRP dealership
204071498
Unavailable
11
KEEPER - Call your local BRP dealership
204072476
Unavailable
12
Elastic Stop Nut M4
232541600
$1.15
13
Phillips Screw M4 X 16
208641660
$0.90
14
Flat Washer 4 mm
234040600
$0.55
15
SPLIT LOOM 3/8, METER - Call your local BRP dealership
204050326
Unavailable
16
LATCH KIT, 3 LATCHES - Call your local BRP dealership
204071838
Unavailable
17
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
18
LATCH PLATE - Call your local BRP dealership
204070304
Unavailable
19
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
20
LATCH GUIDE - Call your local BRP dealership
204072064
Unavailable
21
RIVET_PLASTIC - Call your local BRP dealership
204130080
Unavailable
22
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
22
DRAIN FITTING - Call your local BRP dealership
204072468
Unavailable
23
Lower Console Ass'y, Port Side
204072556
Unavailable
24
Lower Console Ass'y, Starboard | Speedster Wake
204072435
Unavailable
25
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
26
Lock Washer 1/4”
211200025
$1.29
27
Hex. Screw M6 X 35
207163560
$1.49
28
Flat Washer M6, Stainless
234062600
$0.77
29
Hex. Elastic Stop Nut M6
232561600
$1.15
30
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
31
SLIT CONDUIT, METER - Call your local BRP dealership
204550015
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Not Available As Spare Parts
XXX
Unavailable
34
UPPER CONSOLE, STARBOARD - Call your local BRP dealership
204072337
Unavailable
35
Upper Console Ass'y, Port Side
204072341
Unavailable
36
Elastic Stop Nut 5/16-18
204100100
Unavailable
37
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
38
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
40
Hex. Elastic Stop Nut M6
232561600
$1.15
41
ALUMINUM SPACER - Call your local BRP dealership
204071928
Unavailable
42
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
43
Trim, White, 7/16”, Meter
204070446
Unavailable
43
TRIM, BLACK, 7/16?, METER - Call your local BRP dealership | Speedster Wake
204072358
Unavailable
44
Trim, White, 7/16”, Meter
204070446
Unavailable
45
Not Available As Spare Part - Friction Washer
Unavailable
46
HEX. SCREW M6 X 45 - Call your local BRP dealership
207064560
Unavailable
47
Flat Washer M6, Stainless
234062600
$0.77
48
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
49
Windshield This part replaces 204620079.
291003861
$380.99
50
HINGE ASS'Y - Call your local BRP dealership
204620281
Unavailable
51
Pop Rivet 3/16"
293150039
$1.49
52
RETAINING PLATE - Call your local BRP dealership
204620087
Unavailable
53
DEFLECTOR - Call your local BRP dealership
204073803
$63.99
54
REAR STOPPER - Call your local BRP dealership
204620106
Unavailable
55
LATCH - Call your local BRP dealership
204620070
Unavailable
56
FOAM, WINDSCREEN - Call your local BRP dealership
204620080
Unavailable
57
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
58
Hex. Elastic Nut M5 | X
232551600
$1.15
59
NUT HOUSING - Call your local BRP dealership
204073798
Unavailable
60
Hex. Elastic Nut M5 | X
232551600
$1.15
61
RUBBER STOPPER - Call your local BRP dealership
204620295
Unavailable
62
HEX. SCREW M6 X 12 - Call your local BRP dealership
207151260
Unavailable
63
Flat Washer 5 mm, Stainless
234052600
$0.77
64
RETAINER CABLE - Call your local BRP dealership
204620194
Unavailable
65
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership
204620126
Unavailable
66
Glue Tube, Loctite 454, 20 G
413708300
$60.99
67
CABLE ATTACHEMENT - Call your local BRP dealership
204620127
Unavailable
68
HINGE SPRING - Call your local BRP dealership
204620018
Unavailable
69
Hex. Screw M5 X 20
207152060
$1.47
70
Flat Washer 5 mm, Stainless
234052600
$0.77
71
Loctite 243, 10 ml
293800060
$21.49
72
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
73
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
208662560
Unavailable
74
Flat Washer M6, Stainless
234062600
$0.77
75
WINDSCREEN INSERT - Call your local BRP dealership
204620280
Unavailable
76
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
77
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
78
Socket Wrench
529035731
Unavailable
79
Not Available As Spare Part - Friction Washer
Unavailable
