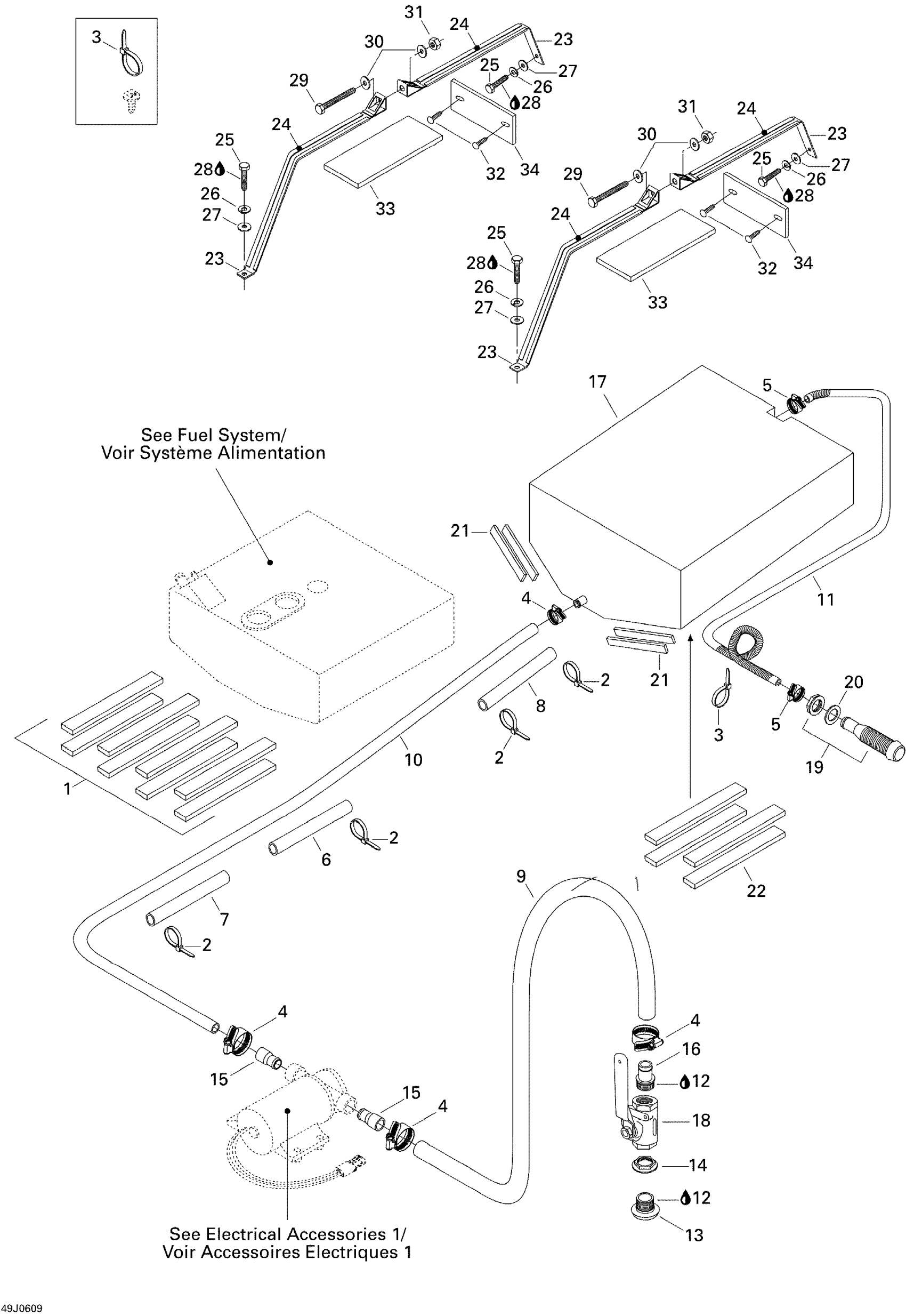

Sea-doo Speedster 200 Twin 4-TEC SCIC, WAKE, Edition 1, 2006 Ballast Tank Diagram

#

Description
Price

1

PROTECTOR PAD - Call your local BRP dealership

204560115

Unavailable

2

Tie-Rap 180 mm

414115200

$0.11

3

Tie-Rap 180 mm

414115200

$0.11

4

Tridon Gear Clamp

293650019

$5.82

5

Tridon Clamp

293650016

$10.99

6

Slit Conduit, Meter

204550045

Unavailable

7

Slit Conduit, Meter

204550045

Unavailable

8

Slit Conduit, Meter

204550045

Unavailable

9

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

12

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

13

THRU HULL FITTING, 3/4 - Call your local BRP dealership

204061017

Unavailable

14

Flange Nut 3/4", Bronze

204100165

Unavailable

15

Pump Fitting

204061015

Unavailable

16

Adapter

204061016

Unavailable

17

Ballast Tank

204061012

Unavailable

18

Shut-Off Valve

204061013

Unavailable

19

Fitting

293710162

$13.49

20

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

21

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

22

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

23

FUEL TANK STRAP - Call your local BRP dealership

204560235

Unavailable

24

PROTECTOR PAD - Call your local BRP dealership

293830044

Unavailable

25

Hex. Screw M8 X 30

207183060

$1.58

26

Lock Washer 8 mm, Stainless

234181601

$0.55

27

Flat Washer 8 mm, Stainless

234082600

$2.43

28

Loctite 271, 10 ml

293800005

$26.99

29

HEX. SCREW M8 X 80 - Call your local BRP dealership

207188060

Unavailable

30

Flat Washer 8 mm, Stainless

234082600

$2.43

31

Hex. Elastic Nut M8

232581600

$1.48

32

Black, Dart

293730006

$0.99

33

NEOPRENE PAD - Call your local BRP dealership

204560191

Unavailable

34

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable
